Support bearing for a vertically arranged centrifugal pump
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 15, 2008
Grant Date -
Oct 20, 2005
app pub date -
Apr 1, 2005
filing date -
Oct 2, 2002
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

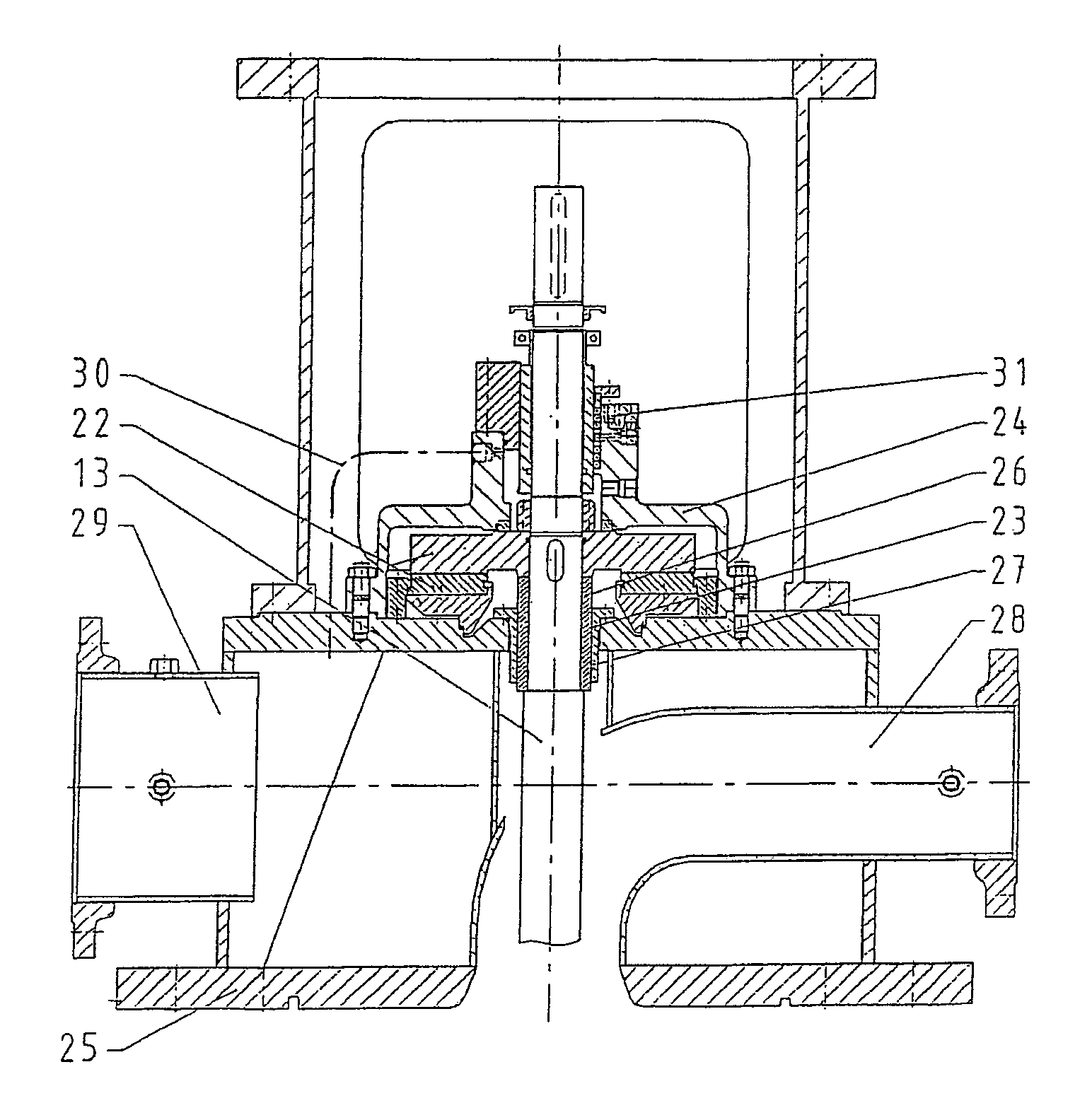

A vertical centrifugal pump having a support bearing arranged above the pump and including an axial bearing (22) and a radial bearing (23). A housing (24) encasing the support bearing (22, 23) is directly connected to the flow-carrying housing (25) of the centrifugal pump. Lubrication, and optionally cooling, of the support bearing (22, 23) are performed by the pumped medium, which is conveyed to the support bearing (22, 23) through a connection leading from the pressure zone (28) of the flow-carrying housing and is discharged into the suction zone (29) of the pump, and a pump shaft seal (31) is disposed on the opposite side of the support bearing (22, 23) from the flow-carrying housing of the centrifugal pump.
First Claim
Other Claims data not available
