DME fuel supply device for diesel engine

Number of patents in Portfolio can not be more than 2000

United States of America Patent

PATENT NO 7318423
APP PUB NO 20050145223A1
SERIAL NO

10506701

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Calculated Rating
US Family Size
Non-US Coverage
Patent Longevity
    Expired
Forward Citations

Abstract

See full text

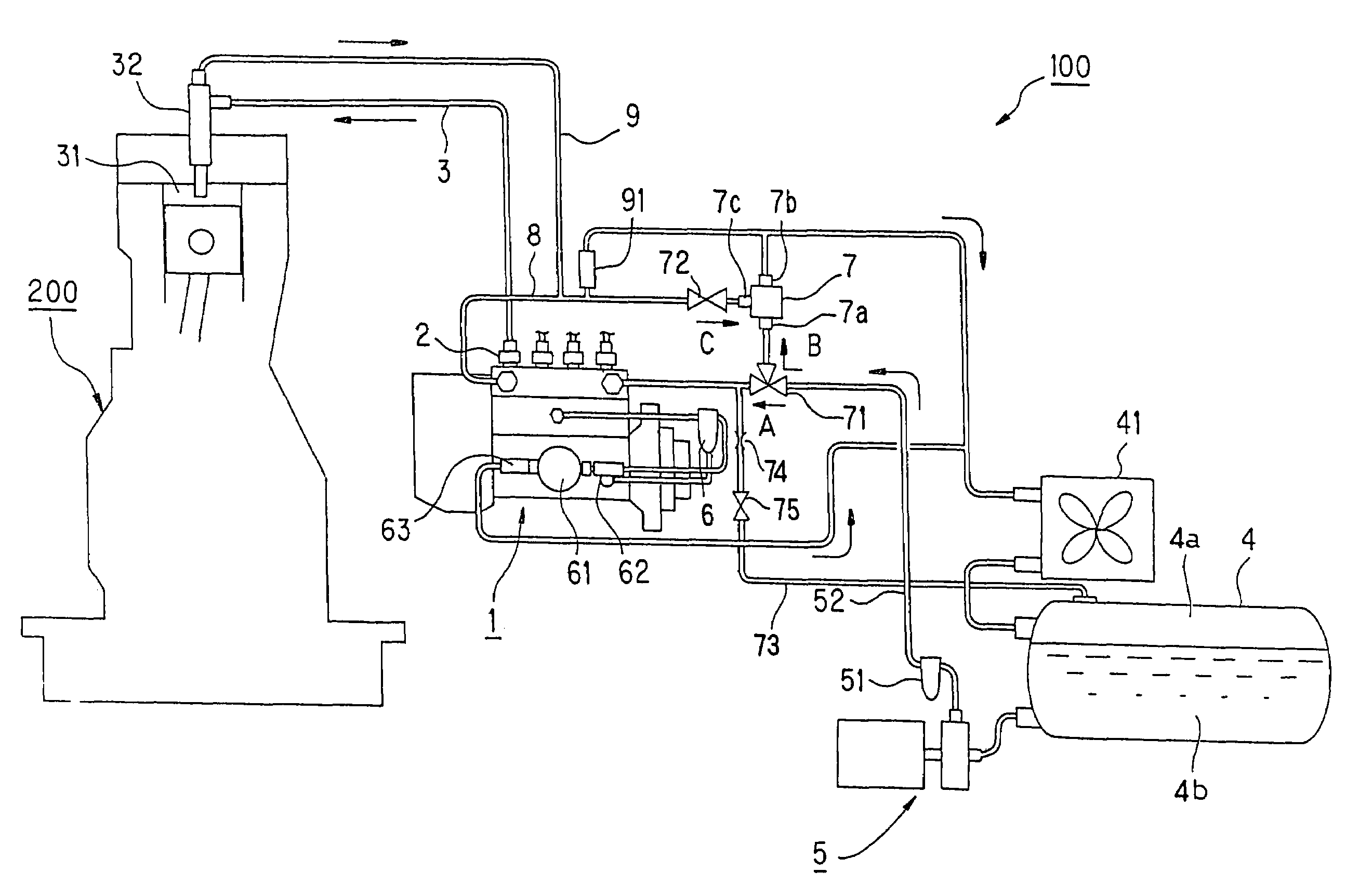

In the DME fuel supply device for a diesel engine, the time necessary to retrieve DME fuel remaining in the injection system after stopping the diesel engine into the fuel tank can be reduced. In a non-injection state, a three-way valve (71) is controlled to be OFF to form a communication passage in the direction indicated by the arrow B and a two-way valve (72) is controlled to be ON. DME fuel delivered from a feed pump (5) is delivered to an aspirator (7), passed from an inlet (7a) to the outlet (7b) thereof and returned to a fuel tank (4). That is, the DME fuel circulates via the aspirator. A vapor-phase pressure delivery pipe switching solenoid valve (75) is controlled to be ON and opened so that flow can pass through a vapor-phase pressure delivery pipe (73) connecting the vapor-phase (4a) in the fuel tank (4) and the inlet of the fuel gallery (11). DME fuel in a liquid state remaining in the fuel gallery (11), an overflow fuel pipes (8) and (9) is delivered under pressure to a suction port (7c) by the high pressure of the vapor-phase (4a).
