Pumping from two levels of a pool of production fluid, and one way valve therefore
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 1, 2008
Grant Date -
Oct 27, 2005
app pub date -
Mar 17, 2005
filing date -
Mar 18, 2004
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

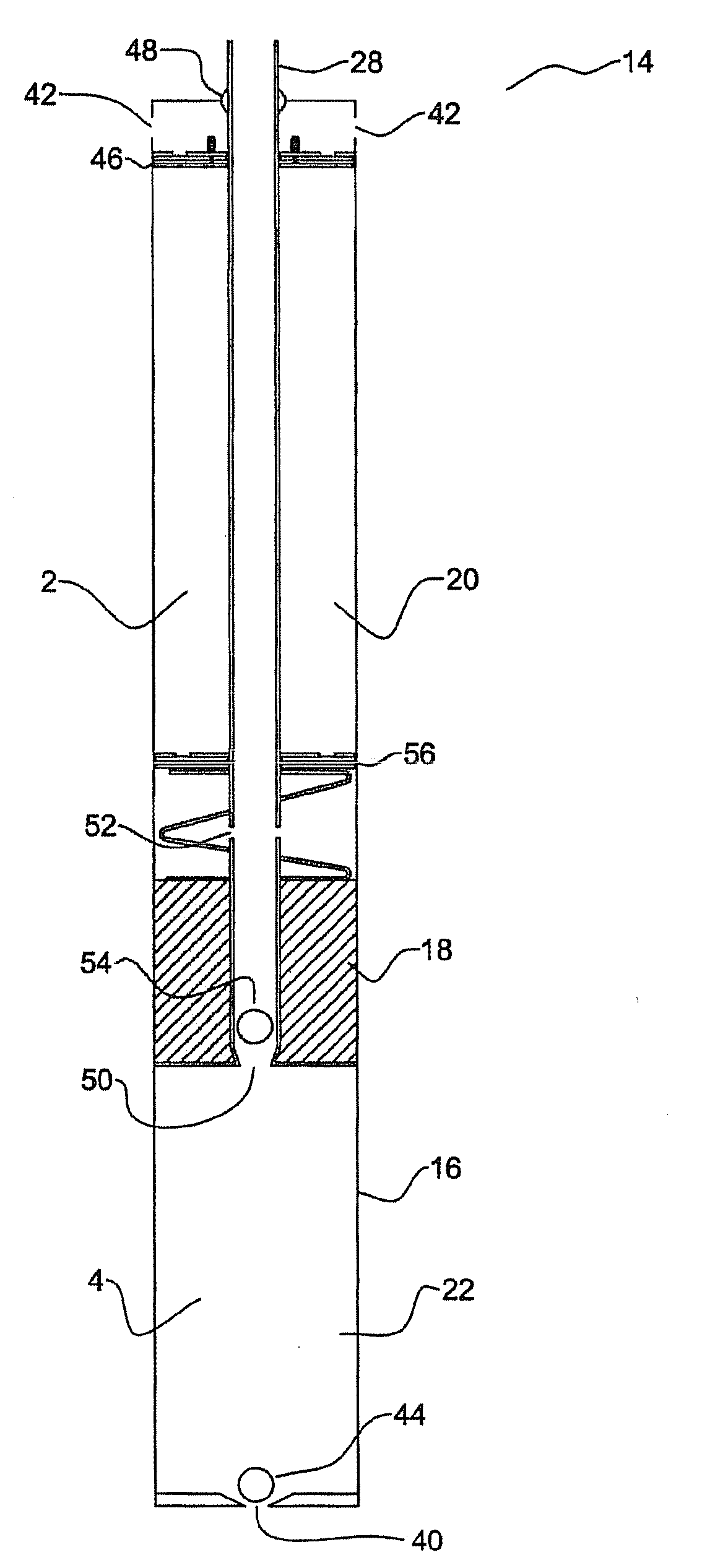

A method of pumping upper production fluid from an upper level of an underground pool of production fluid and pumping lower production fluid having a higher concentration of sand from a lower level during a single pump cycle comprises providing a dual action reciprocating piston pump comprising a pump barrel and a reciprocating piston dividing the pump barrel into a lower and upper chambers. On a downstroke upper production fluid is drawn from the upper level into the upper chamber through an upper intake, and lower production fluid present in the lower chamber is forced up a tube toward ground surface. On an upstroke lower production fluid is drawn from the lower level into the lower chamber through a lower intake, and upper production fluid in the upper chamber is forced up the tube toward ground surface.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- E21B Class
- 1.55 % this patent is cited more than
- 17 Age
