Two piece paper cup and sidewall blank therefor
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 25, 2007
Grant Date -
N/A
app pub date -
Jul 27, 2006
filing date -
Jul 27, 2006
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

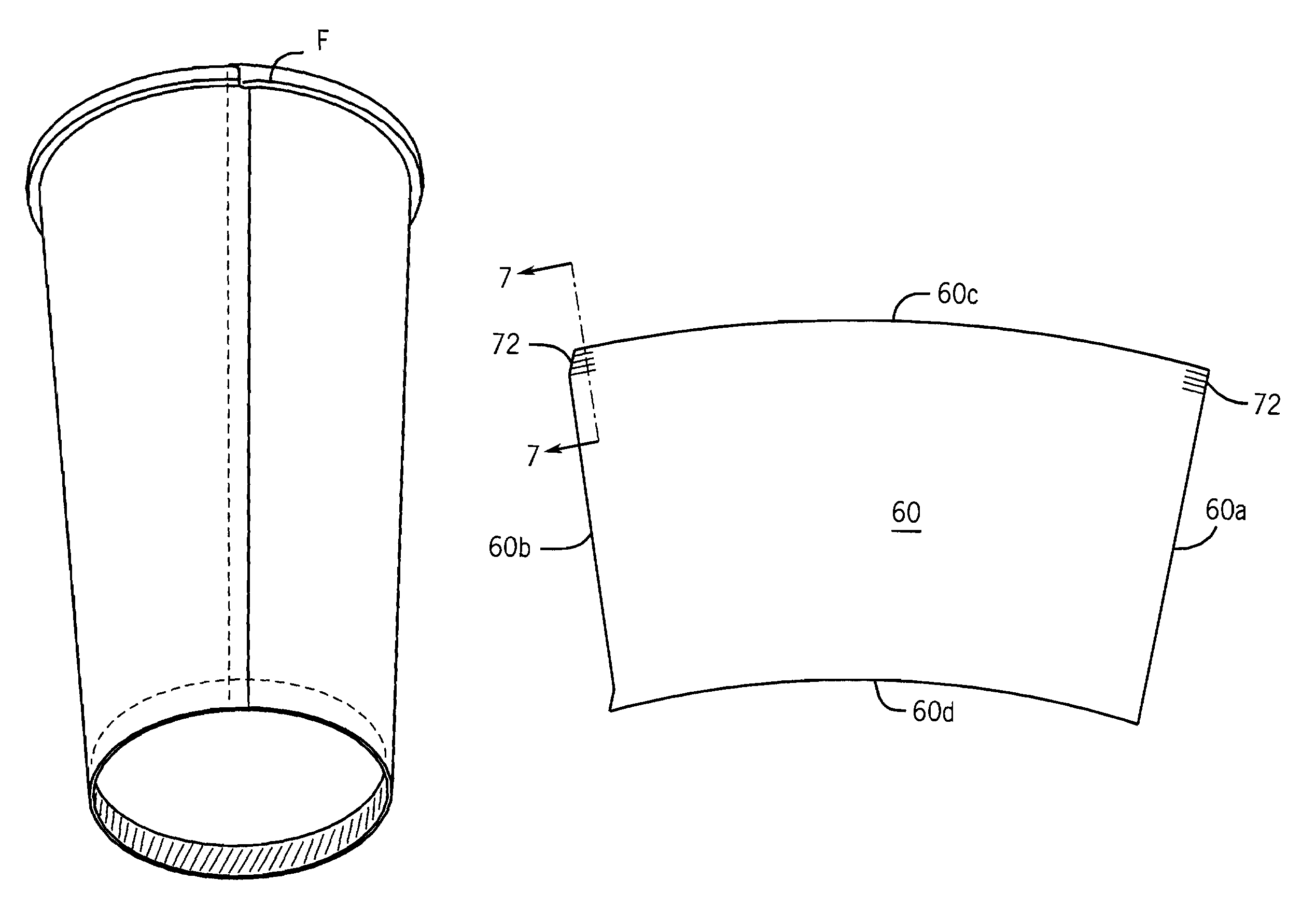

A two-piece cup is formed by a sidewall member having an upper edge, a lower edge, a pair of opposite side edges, a front surface and a back surface with the opposite side edges overlapped and sealed along an overlapped side seam, and a bottom member sealed along the lower edge of the sidewall member. The upper edge of the sidewall member is curled into a continuous rim. Upper corners of the sidewall member are formed with a plurality of parallel score lines extending inwardly from each side edge immediately beneath the upper edge, the score lines overlapping in the side seam.
First Claim
Other Claims data not available
Family
Loading Family data...
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 9 Citation Count
- B65D Class
- 2.09 % this patent is cited more than
- 18 Age
