Connecting device for a plug-and-socket connection containing two connectors
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 4, 2007
Grant Date -
Apr 19, 2007
app pub date -
Oct 2, 2006
filing date -
Sep 30, 2005
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

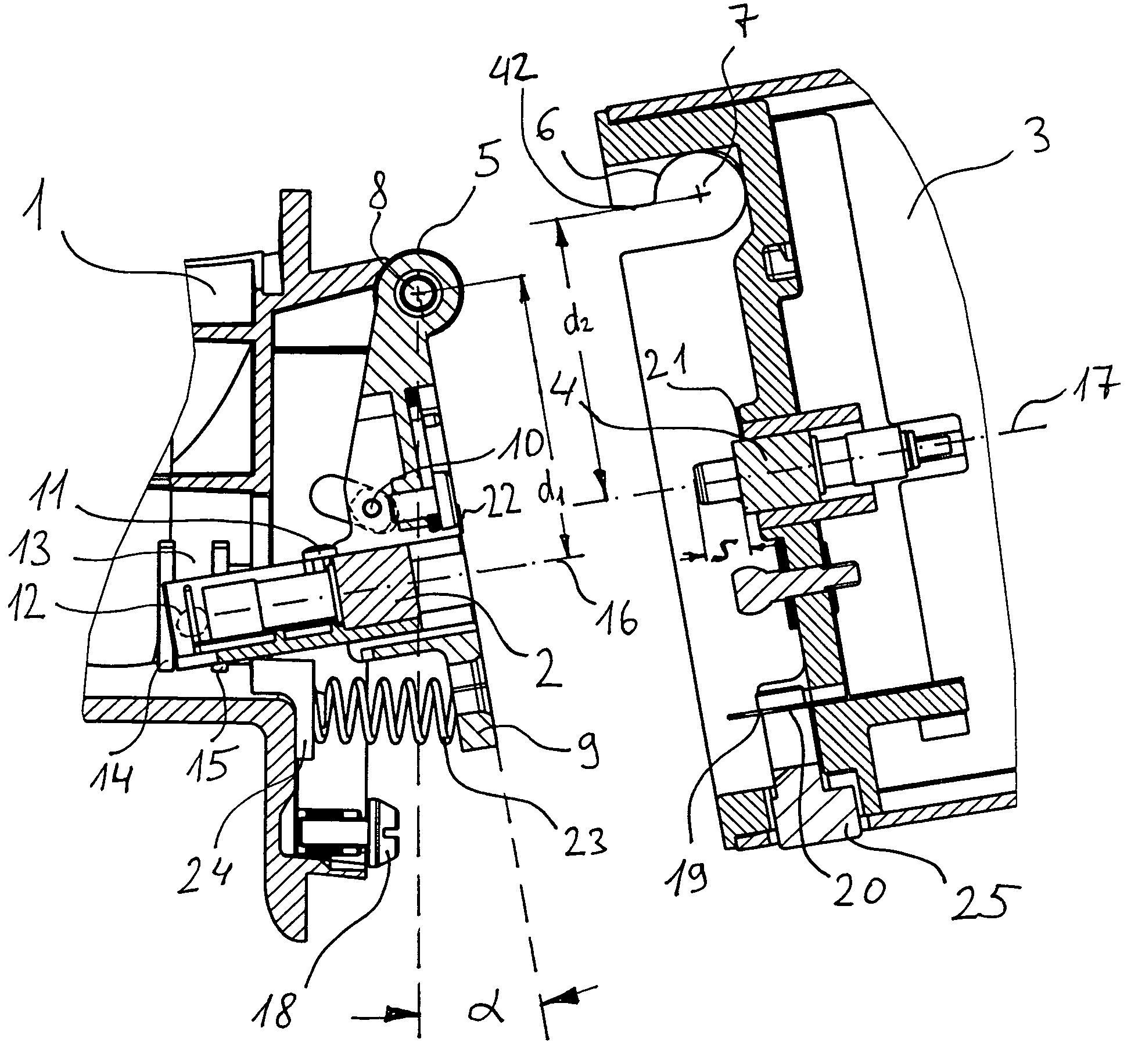

A connecting device for a plug-and-socket connection containing two connectors that includes a first part (1) with a first connector (2) and a second part (3) with a second connector (4). The first part (1) is equipped with an axle pin (5), and the second part (3) is equipped an axle bearing (6) for the axle pin (5), wherein the second part (3) is pivotable from a release position to a closed position about an axis of rotation (7) defined by the axle bearing (6), wherein the distance d1 of the center axis (16) of the first connector (2) from the axis of rotation (8) is equal to the distance d2 of the center axis (17) of the second connector (4) from the axis of rotation (8).
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 58 Citation Count
- H01R Class
- 94.96 % this patent is cited more than
- 18 Age
