Anti-creep trailer locking mechanism
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 13, 2007
Grant Date -
Nov 2, 2006
app pub date -
Apr 29, 2005
filing date -
Apr 29, 2005
priority date (Note) -
Expired
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

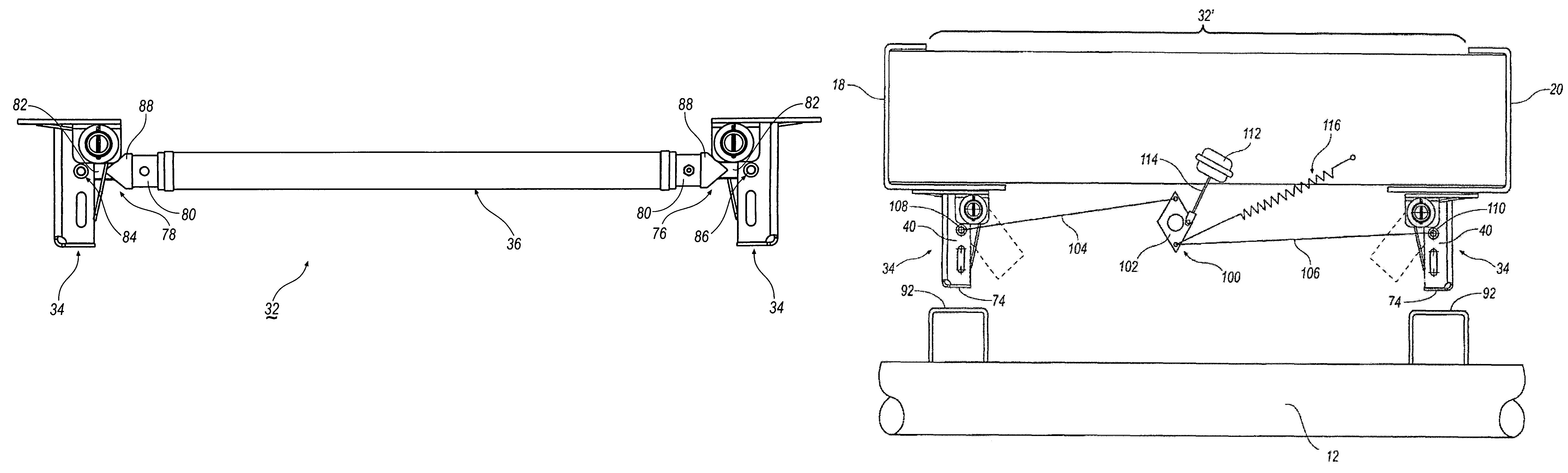

An anti-creep locking mechanism for a trailer suspension system is disclosed. The disclosed locking mechanism includes at least one column that may be swung into a first position in a gap formed between a trailer frame and a suspension component to keep a trailer at a predetermined height. The column is biased into the first position by a spring. An actuator, such as a contracting air bag or an air cylinder with a linkage assembly, is used to overcome the biasing force of the spring and retract the column into a second position, thereby deactivating the anti-creep locking mechanism. The anti-creep mechanism may further include an angle limiter to insure that column is fully retracted once the system is deactivated.
First Claim
Other Claims data not available
