Leno cloth as well as method and weaving machine for production thereof
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 30, 2007
Grant Date -
Aug 3, 2006
app pub date -
Dec 29, 2005
filing date -
Dec 31, 2004
priority date (Note) -
Expired
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

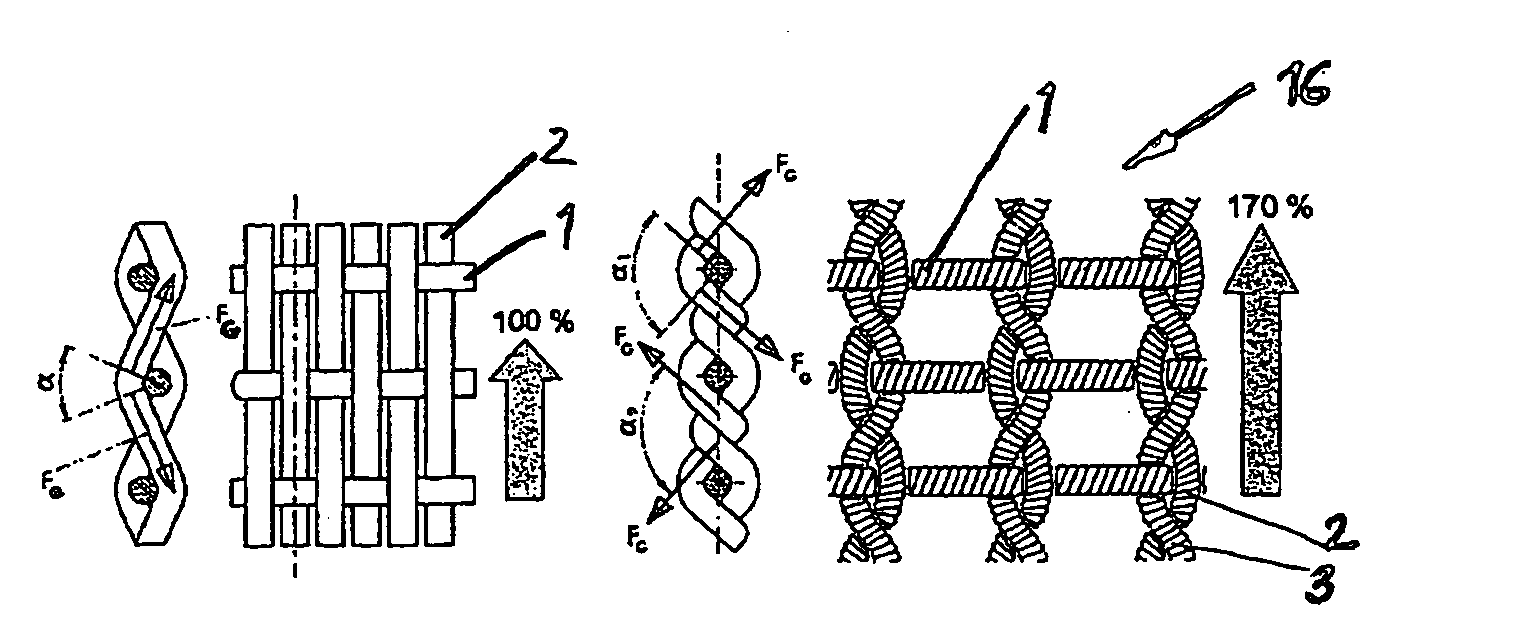

A leno cloth is prepared, which comprises at least ground warp threads 1, leno warp threads 3 and weft threads 2, and in which the weft threads 2 and the ground warp threads 1 are arranged essentially interspace free. The weft threads are bound-off by means of the leno warp threads 3, which comprise a clearly lower titer relative to the ground warp threads 1, with such a lower tension relative to the ground warp threads, so that the crossings of the leno warp threads 3 with the ground warp threads 1 that are present due to the binding are arranged in a plane parallel to the plane of the maximum thickness of the weft threads. The leno warp threads 3 comprise a higher working-in or take-up into the woven cloth than the ground warp threads 1. According to a further aspect of the invention, a method for the production of a leno cloth as well as a loom for the carrying out of the method for the production of a leno cloth are described.
First Claim
all claims..Other Claims data not available
Family
Country | kind | publication No. | Filing Date | Type | Sub-Type |
---|---|---|---|---|---|
DE | A1 | DE102004063683 | Dec 31, 2004 | Patent | Application |
Type : Patent Sub-Type : Application | |||||
DOC. LAID OPEN (FIRST PUBLICATION) | Verfahren zum Herstellen eines Gewebes in Dreherbindung und Webmaschine zur Durchführung des Verfahrens | Jul 13, 2006 | |||
DE | B3 | DE102005044788 | Sep 19, 2005 | Patent | Grant |
Type : Patent Sub-Type : Grant | |||||
PATENT (FIRST PUBLICATION) | Drehergewebe, insbesondere für Funktionstextilien | Nov 02, 2006 | |||
RU | C1 | RU2347022 | Dec 22, 2005 | Patent | Grant |
Type : Patent Sub-Type : Grant | |||||
PATENT FOR INVENTION | ТКАНЬ ПЕРЕВИВОЧНОГО ПЕРЕПЛЕТЕНИЯ, А ТАКЖЕ СПОСОБ И ТКАЦКИЙ СТАНОК ДЛЯ ЕЕ ИЗГОТОВЛЕНИЯ | Feb 20, 2009 | |||
EP | B1 | EP1838910 | Dec 22, 2005 | Patent | Grant |
Type : Patent Sub-Type : Grant | |||||
Patent | DREHERGEWEBE SOWIE VERFAHREN UND WEBMASCHINE ZU DESSEN HERSTELLUNG | Oct 21, 2009 | |||
WO | A1 | WO2006069562 | Dec 22, 2005 | Patent | Application |
Type : Patent Sub-Type : Application | |||||
INTERNATIONAL APPLICATION PUBLISHED WITH INTERNATIONAL SEARCH REPORT | DREHERGEWEBE SOWIE VERFAHREN UND WEBMASCHINE ZU DESSEN HERSTELLUNG | Jul 06, 2006 | |||
BR | A2 | BRPI0519768 | Dec 22, 2005 | Patent | Application |
Type : Patent Sub-Type : Application | |||||
APPLICATION FOR A PATENT OF INVENTION / PIPELINE PATENT PUBLISHED WITHOUT SEARCH REPORT | tecido em gaze bem como mÉtodo e tear para a sua fabricaÇço | Mar 10, 2009 | |||
JP | B2 | JP4584318 | Dec 22, 2005 | Patent | Grant |
Type : Patent Sub-Type : Grant | |||||
PUBLISHED GRANTED PATENT (SECOND LEVEL) | DREHERGEWEBE SOWIE VERFAHREN UND WEBMASCHINE ZU DESSEN HERSTELLUNG | Nov 17, 2010 | |||
CN | B | CN101094945 | Dec 22, 2005 | Patent | Grant |
Type : Patent Sub-Type : Grant | |||||
GRANTED PATENT FOR INVENTION | Gauze cloth and method and mechanical loom for producing the same | Jun 01, 2011 |
- 15 United States
- 10 France
- 8 Japan
- 7 China
- 5 Korea
- 2 Other
Patent Owner(s)
Patent Owner | Address | |
---|---|---|
LINDAUER DORNIER GESELLSCHAFT MBH | 88129 LINDAU |
International Classification(s)

- 2005 Application Filing Year
- D03C Class
- 15 Applications Filed
- 5 Patents Issued To-Date
- 33.34 % Issued To-Date
Inventor(s)
Inventor Name | Address | # of filed Patents | Total Citations |
---|---|---|---|
Wahhoud, Adnan | Lindau, DE | 43 | 245 |
# of filed Patents : 43 Total Citations : 245 |
Cited Art Landscape
- No Cited Art to Display

Patent Citation Ranking
- 14 Citation Count
- D03C Class
- 93.75 % this patent is cited more than
- 18 Age
Forward Cite Landscape
- No Forward Cites to Display

Maintenance Fees
Fee | Large entity fee | small entity fee | micro entity fee | due date |
---|
Fee | Large entity fee | small entity fee | micro entity fee |
---|---|---|---|
Surcharge after expiration - Late payment is unavoidable | $700.00 | $350.00 | $175.00 |
Surcharge after expiration - Late payment is unintentional | $1,640.00 | $820.00 | $410.00 |
Full Text

Legal Events
Date | Code | Event | Description |
---|---|---|---|
Jun 23, 2021 | MAFP | MAINTENANCE FEE PAYMENT | free format text: PAYMENT OF MAINTENANCE FEE, 4TH YEAR, LARGE ENTITY (ORIGINAL EVENT CODE: M1551); ENTITY STATUS OF PATENT OWNER: LARGE ENTITY year of fee payment: 4 |
Jan 02, 2018 | I | Issuance | |
Dec 13, 2017 | STCF | INFORMATION ON STATUS: PATENT GRANT | free format text: PATENTED CASE |
Jul 07, 2016 | P | Published | |
May 10, 2016 | AS | ASSIGNMENT | free format text: ASSIGNMENT OF ASSIGNORS INTEREST;ASSIGNORS:HERZOG, KATHARINA;RECKER, CARLA;PAVON SIERRA, VIKTORIA;AND OTHERS;SIGNING DATES FROM 20160323 TO 20160502;REEL/FRAME:038662/0933 Owner name: CONTINENTAL REIFEN DEUTSCHLAND GMBH, GERMANY |
Mar 17, 2016 | F | Filing | |
Sep 27, 2013 | PD | Priority Date |
