Flushing flow distributor for a flushing cistern, flushing system having a flushing flow distributor of this type and toilet system having a flushing flow distributor
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 25, 2007
Grant Date -
Apr 21, 2005
app pub date -
Oct 21, 2004
filing date -
Oct 21, 2003
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

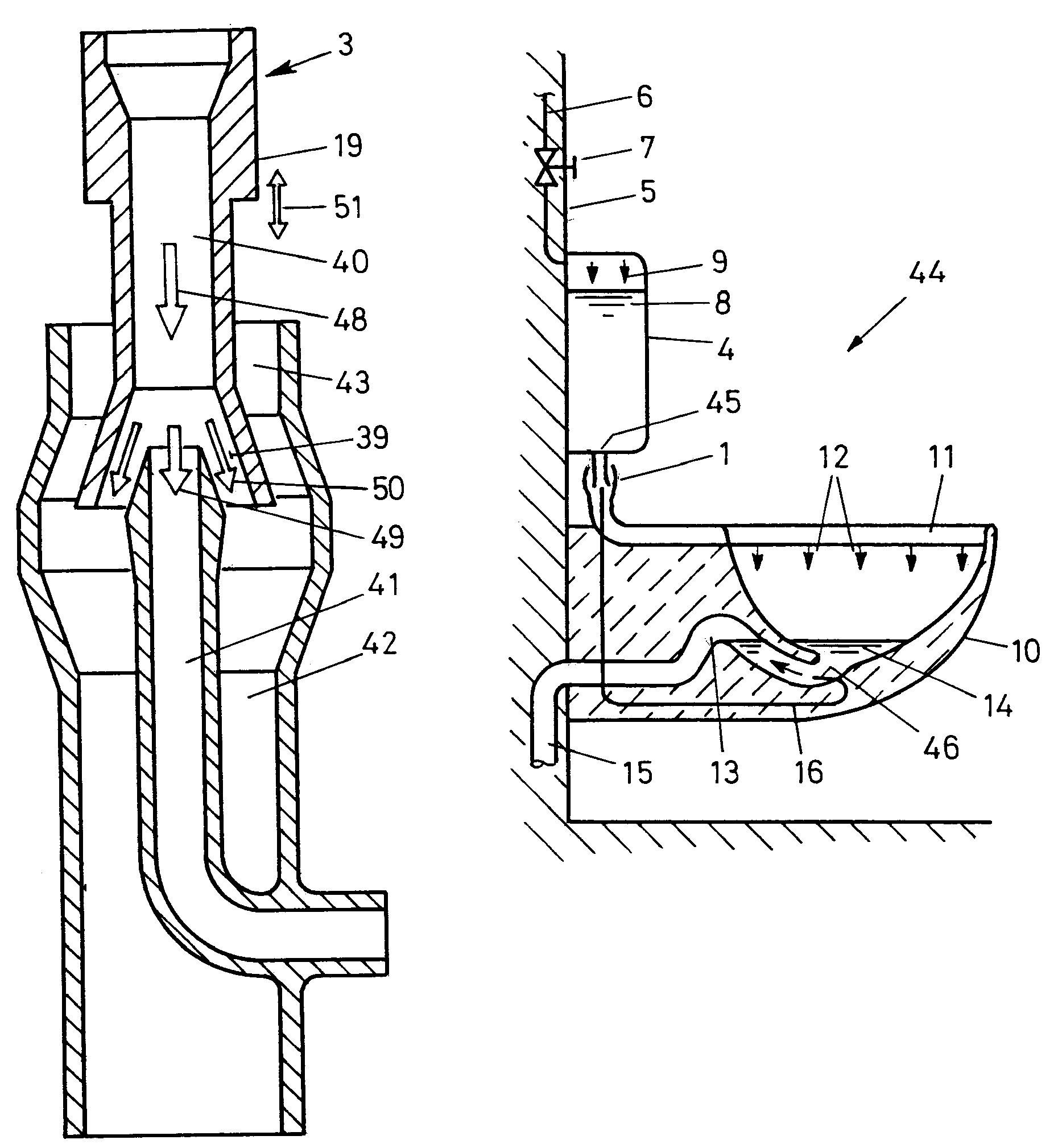

The flushing flow distributor has a first channel (21) which is to be connected to a discharge (45) of the flushing cistern (4), and a second and a third channel (24, 25, 69). The second channel (24) and the third channel (25) are in each case to be connected to a toilet bowl (10). The first channel (21) has a nozzle (17, 18, 19, 55, 62) which outputs the water to the two other channels (24, 25, 69). The nozzle (17, 18, 19, 55, 62) is preferably designed as a free jet nozzle. The flushing flow distributor is preferably designed as a pipe interrupter. It is preferably used on a pressurized flushing cistern (4) and permits flushing with less flushing water while at the same time requiring less space and with a flushing action which is at least ample.
First Claim
Other Claims data not available
