Floss blowing and heat dissipating apparatus for high speed circular knitting machines
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 18, 2007
Grant Date -
N/A
app pub date -
Oct 3, 2006
filing date -
Oct 3, 2006
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

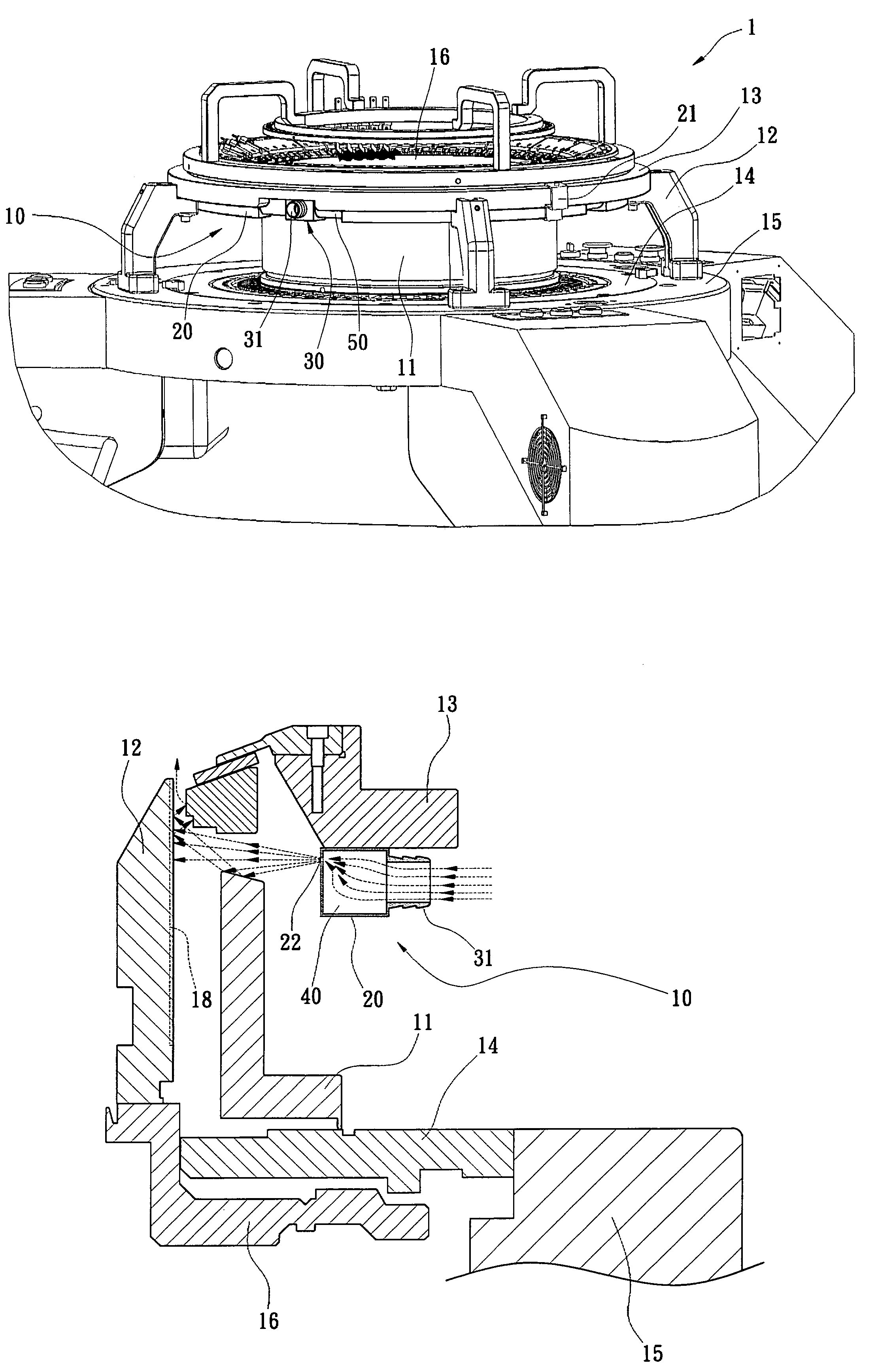

A floss blowing and heat dissipating apparatus for high speed circular knitting machines includes an annular duct located beneath a circular frame plate and an airflow generator to generate pressurized air. The annular duct has a passage inside and an air intake connector located thereon communicating with the passage, and a plurality of air vents close to a cylinder and straddle seats communicating with the passage. The airflow generator generates the pressurize air which is delivered to the air intake connector through an air directing hose so that the passage delivers the pressurized air to the air vents to eject the pressurized air forcefully towards the straddle seats, the cylinder and needles of a circular knitting machine where the floss is most likely to accumulate to carry away the floss. It also can reduce the temperature generated by the friction between needle troughs and needles to achieve optimal cooling effect.
First Claim
Other Claims data not available
