Method of controlling power slide device for sliding vehicle slide door
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 11, 2007
Grant Date -
Jul 28, 2005
app pub date -
Oct 11, 2002
filing date -
Oct 11, 2001
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

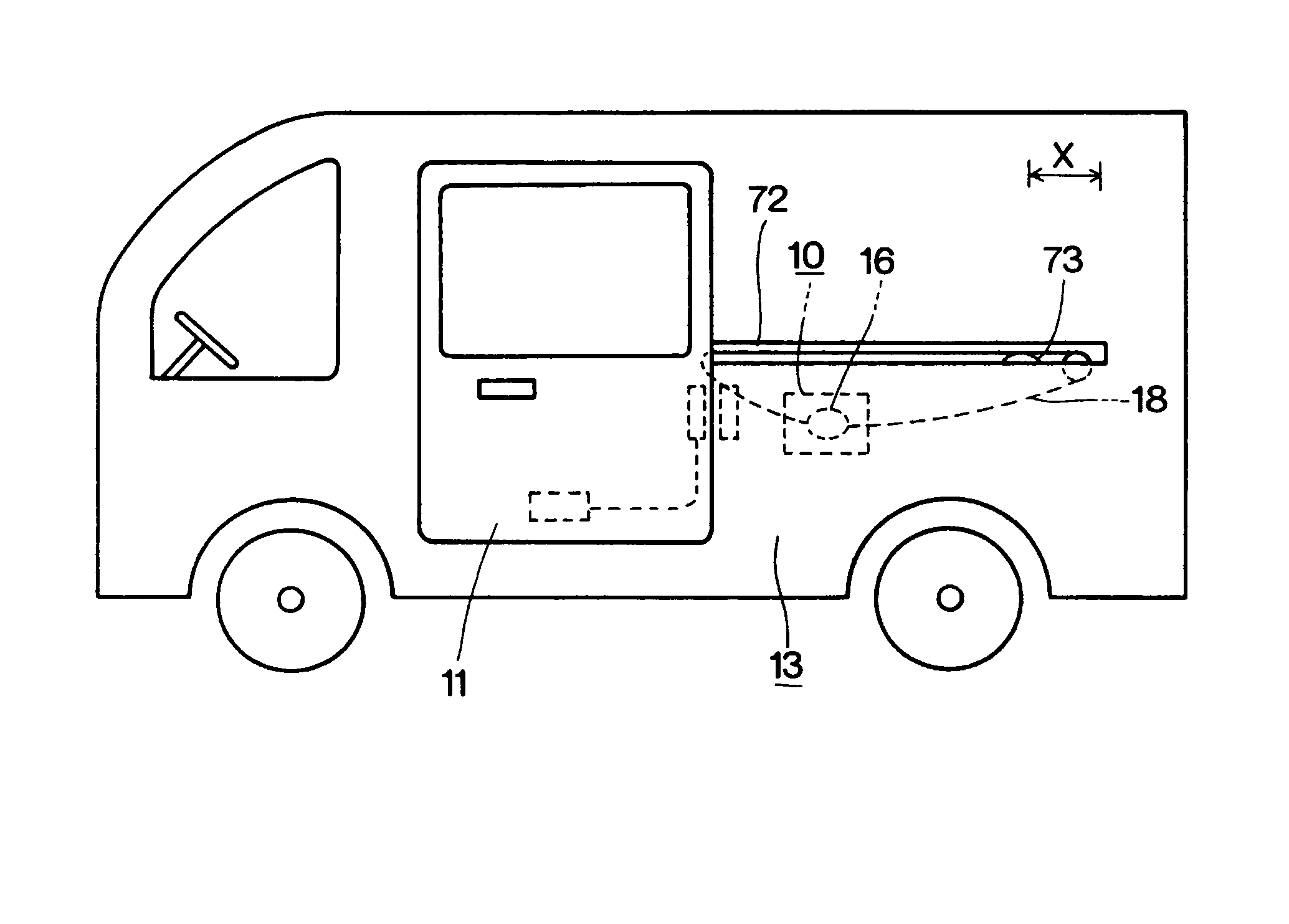

In the present control method of a powered sliding device, a sliding movement of the sliding door in the closing direction by an external force is monitored after the sliding door is slid in the opening direction by the motive power of the motor to reach the opening end position and the sliding movement by the motor is terminated. A brake is applied to the sliding door for a predetermined time when the sliding movement of the sliding door in the closing direction at a speed higher than a predetermined speed is detected within a predetermined time. After that, the brake is applied to the sliding door again for a predetermined time when the sliding movement of the sliding door in the closing direction at a speed higher than a predetermined speed is detected again within a predetermined time.
First Claim
Other Claims data not available
