Ball and socket joint with sealing bellows

Number of patents in Portfolio can not be more than 2000

United States of America Patent

PATENT NO 7244074
APP PUB NO 20050042022A1
SERIAL NO

10953610

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

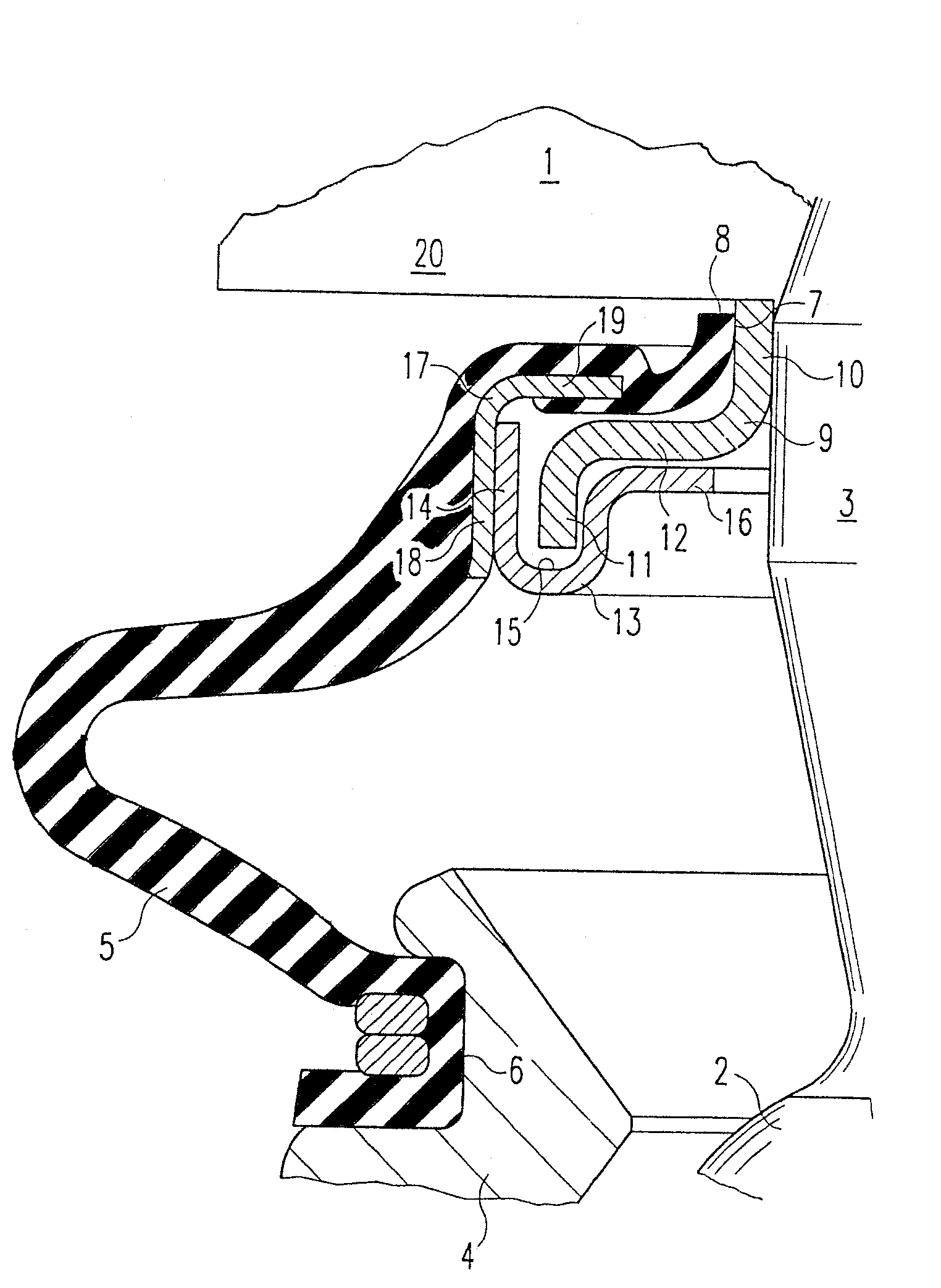

A ball and socket joint (1) is provided, for example, for a chassis bearing, with a ball (2), a pivot (3) originating from the ball (2), a housing (4) accommodating the ball, and a sealing bellows (5), which extends between the housing (4) and the pivot (3) and has a housing-side opening (6) and a pivot-side opening (7). The sealing bellows (5) has a circumferential sealing lip (8) for sealing at the pivot-side opening (7). The ball and socket joint (1) has a first guide ring (9), which guides the sealing bellows (5). The first guide ring (9) is arranged at the pivot (3). An especially favorable functional separation is achieved as a result between the guiding function and the sealing function.
