Device for stopping the balance during the time-setting of a tourbillon watch
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 17, 2007
Grant Date -
Jan 19, 2006
app pub date -
Jul 12, 2005
filing date -
Jul 13, 2004
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

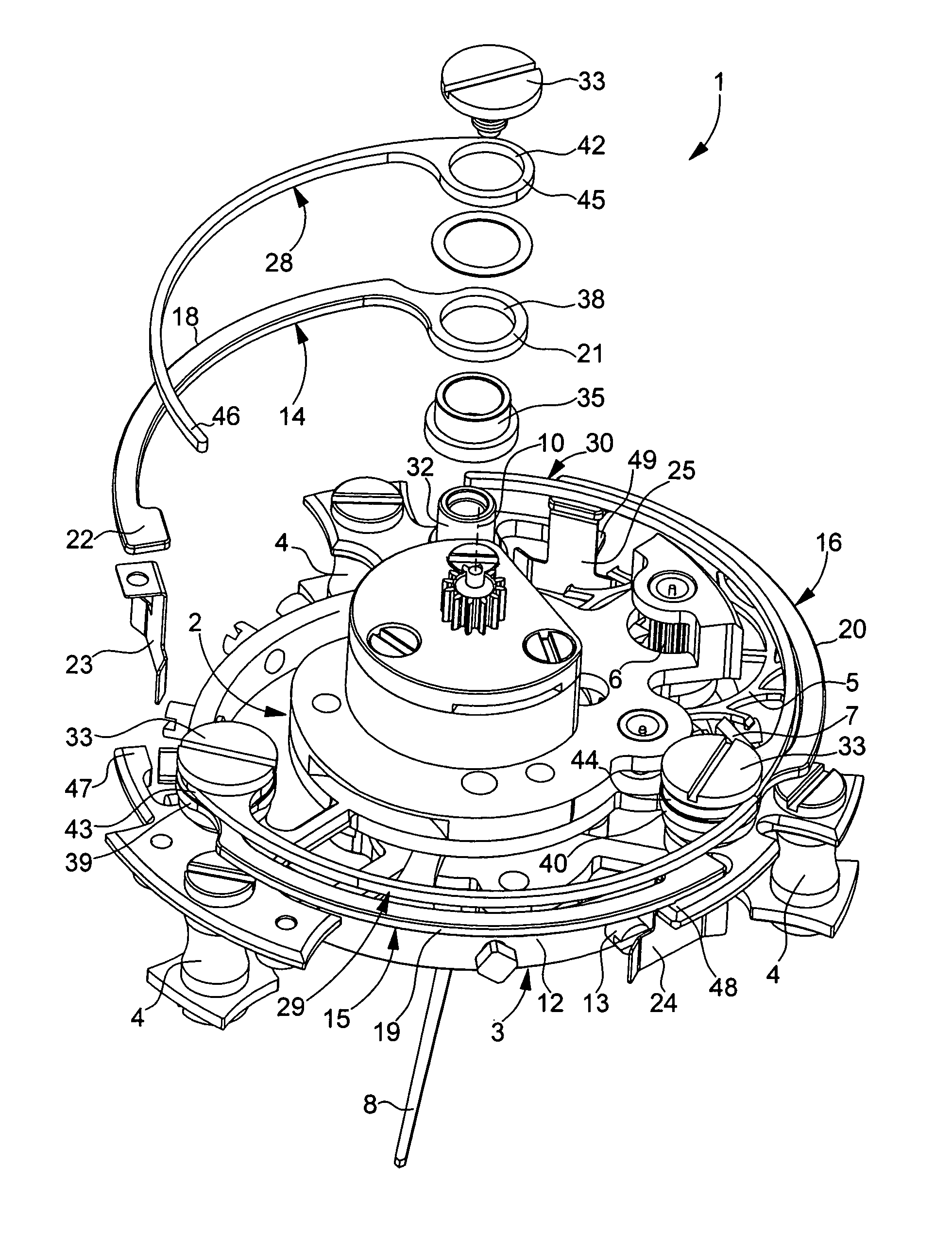

The stop second device during precise time-setting of a watch fitted with a tourbillon (1) comprises mobile elements such as levers (14, 15, 16) mounted in the carriage (2) of the tourbillon, each of said mobile elements being returned by a return spring (28, 29, 30). These mobile elements are capable of contacting the periphery of the balance (3) of the tourbillon, to block said balance when action is exerted on at least one of said mobile elements by a shoe (17) arranged outside the carriage (2) and controlled by the time-setting stem (26) of the watch. The outer edges (18, 19, 20) of the levers are located above pillars (4) of the carriage (2), such that the shoe (17) can act on the levers without interfering with said pillars.
First Claim
Other Claims data not available
