Bollard and accessories for use therewith
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 19, 2007
Grant Date -
Feb 26, 2004
app pub date -
Sep 24, 2002
filing date -
Aug 20, 2002
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

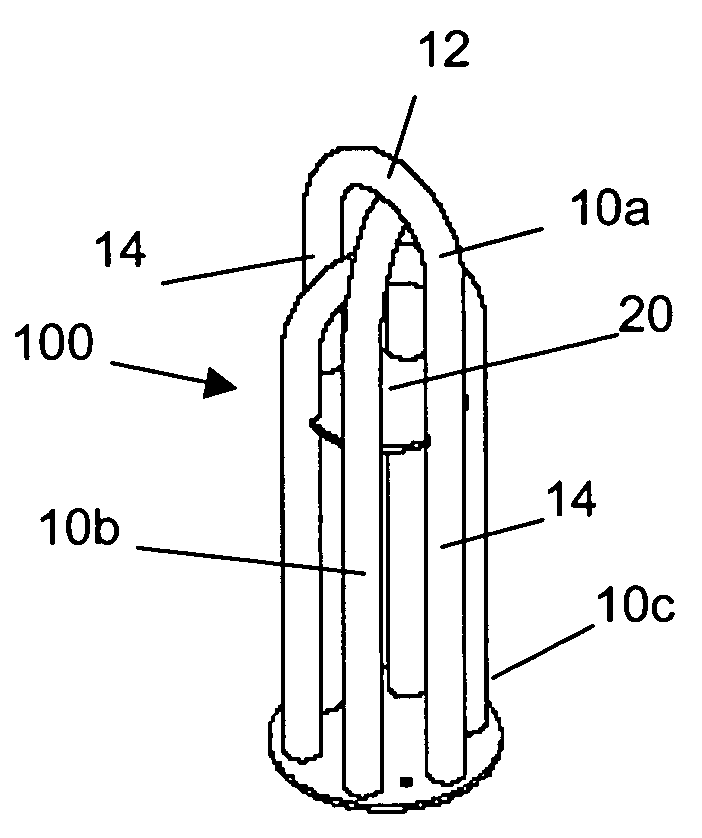

A bollard comprising a series of at least two nested, inverted U-shaped forms of decreasing height set around a common vertical axis. Each U-shaped form has an upper transverse portion and two parallel, vertical legs extending from the upper transverse portion. The bollard further comprises at least one center joining plate located below the upper transverse portions of the forms and being substantially perpendicular to the forms, for joining the U-shaped forms together as a unit, the forms being fastened to the at least one center joining plate. The bollard can also include an anchor plate attached to the forms at or adjacent their bottom, for anchoring the forms to a support surface. The bollard can be used in a system comprising at least one other bollard and/or at least one site amenity (for example, seating, lighting, signage, a shelter, a trash can receptacle, and an ash urn), wherein the at least one site amenity is associated with the at least one other bollard, for example by being attached thereto.
First Claim
Other Claims data not available
