Combustion chamber subassembly for a heating device, particularly a vehicle heating device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 12, 2007
Grant Date -
Oct 21, 2004
app pub date -
Nov 26, 2003
filing date -
Nov 27, 2002
priority date (Note) -
Expired
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

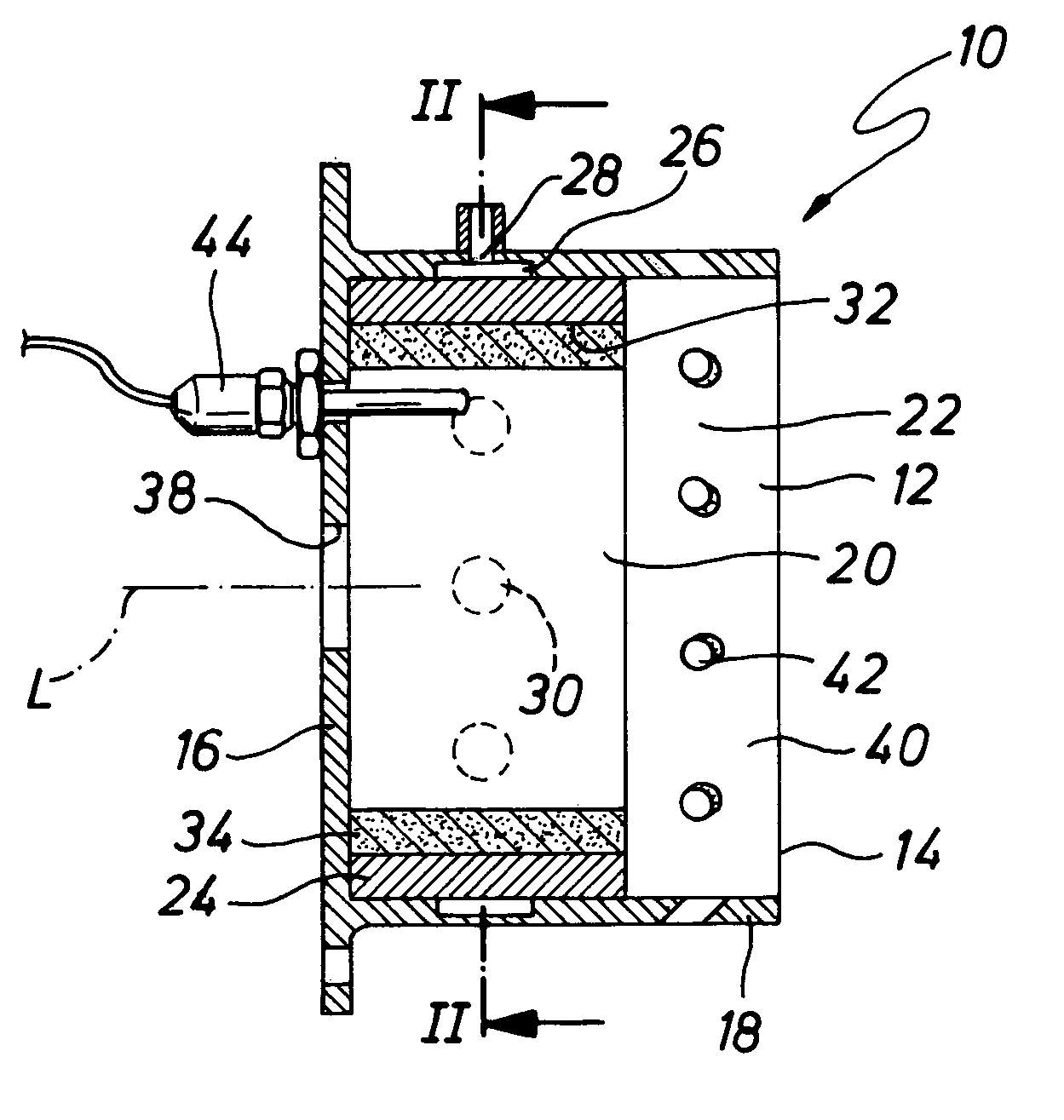

A combustion chamber subassembly for a vehicle heating device, includes a housing with a housing wall and a fuel feed through the housing wall, a fuel distribution element covering the housing wall on the side facing toward a combustion chamber and together with the housing wall bounding a fuel distribution channel arrangement, a plurality of fuel inlet apertures being formed in the fuel distribution element for conducting fuel from the fuel distribution channel arrangement toward the combustion chamber.
First Claim
Other Claims data not available
