Cycle pedal with adjustable axial positioning
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 12, 2007
Grant Date -
Dec 15, 2005
app pub date -
Jul 8, 2003
filing date -
Jul 8, 2002
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

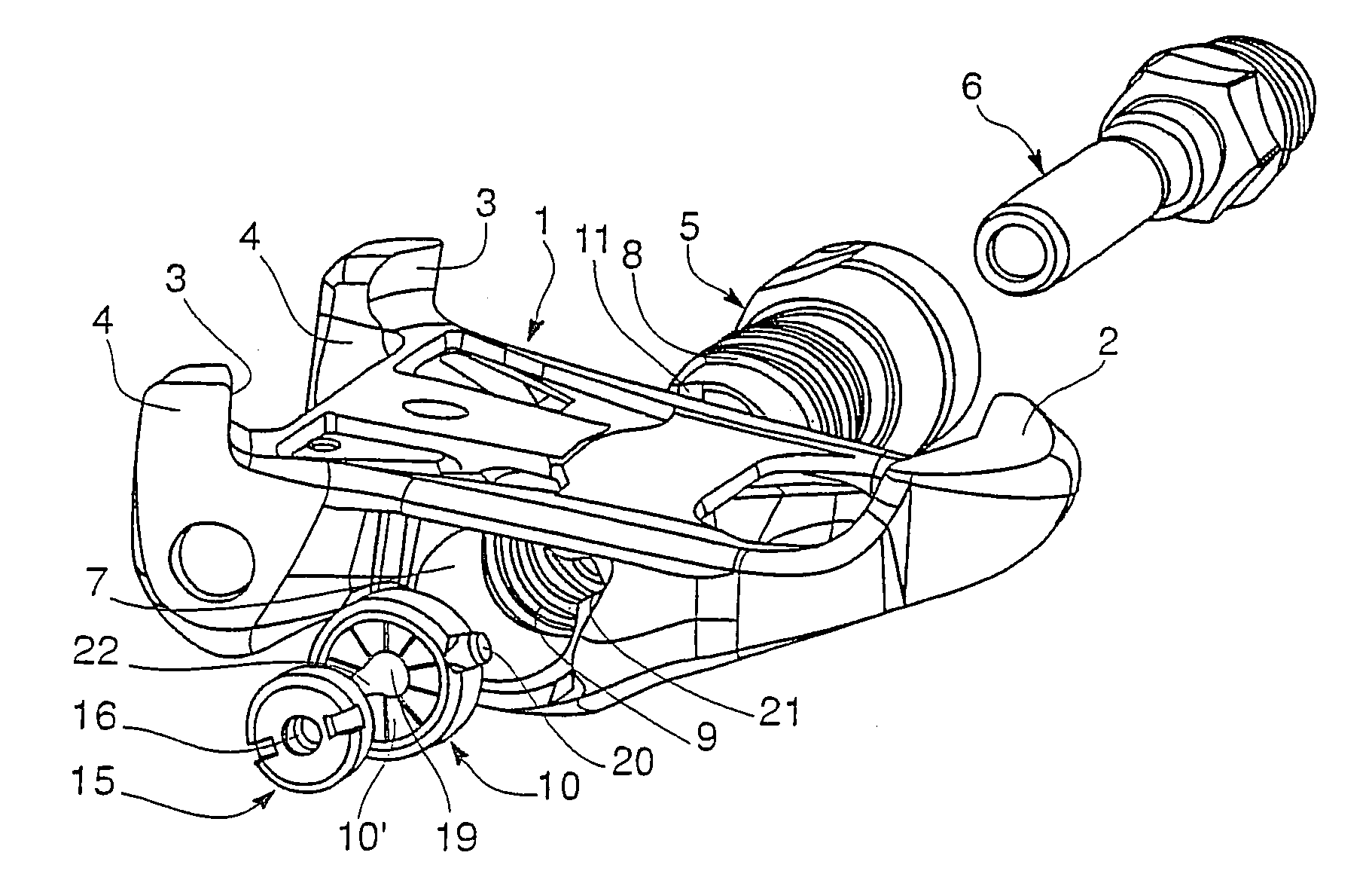

The pedal comprises a pedal body having hooks, and a cartridge containing a pedal axle and which is received in a transverse recess of the pedal. This recess is provided with a tapping coacting with a screw, thread on the cartridge to permit the continuous adjustment of the transverse position of this latter, and holding elements of the cartridge in a transverse position. The holding elements comprise a ring for blocking in rotation the cartridge adapted to be connected to the cartridge by positive locking members provided on one end of the latter and positive locking members provided on the ring. Gripping elements are provided to grip the ring against the cartridge.
First Claim
Other Claims data not available
