Method for producing a fabric in plain weaves and leno weaves and a loom for carrying out the method
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 5, 2007
Grant Date -
Jul 6, 2006
app pub date -
Feb 18, 2004
filing date -
Feb 21, 2003
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

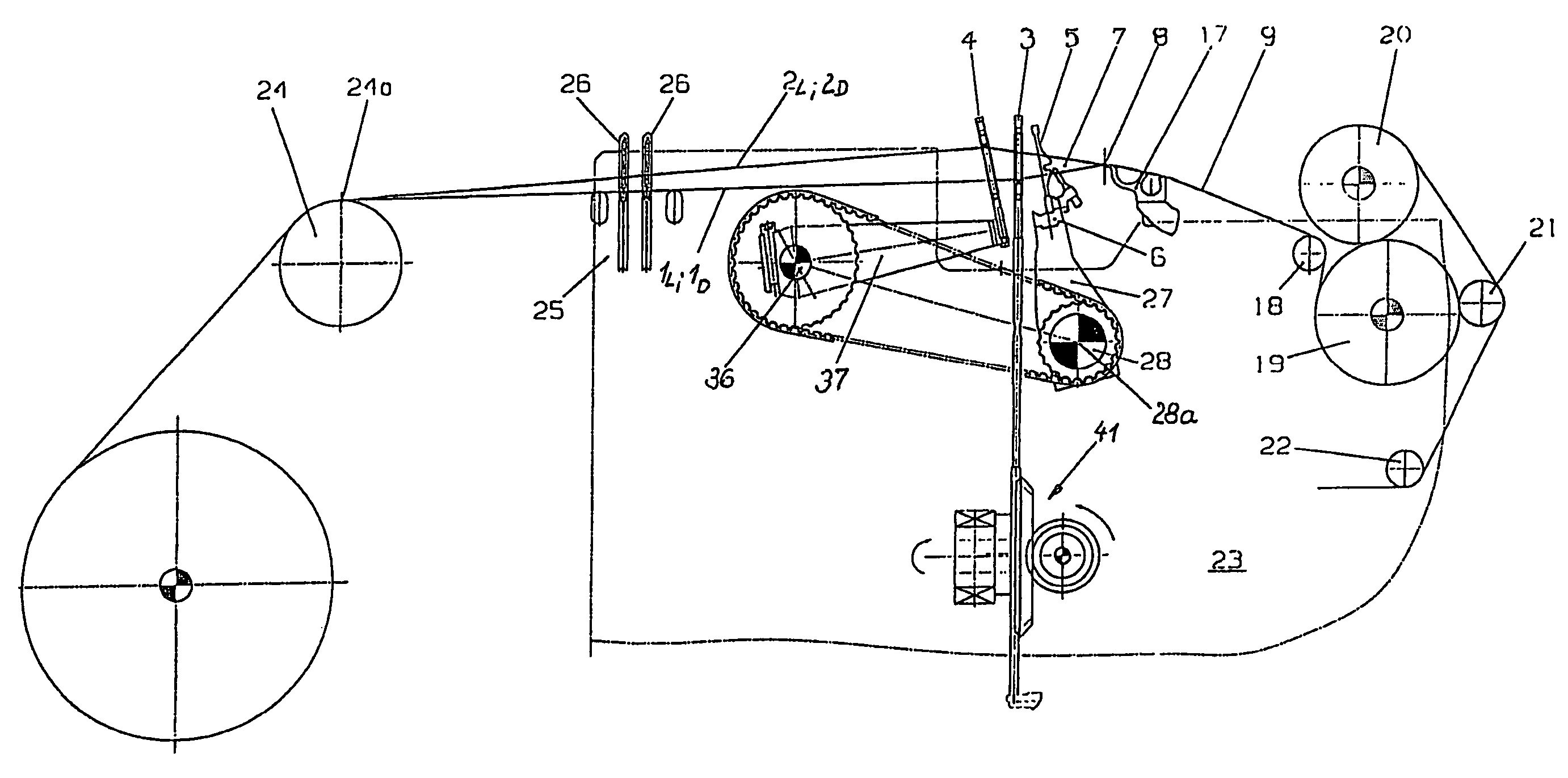

A loom simultaneously forms a plain weave (16) and a gauze weave (15) in a textile (9) in one weaving cycle. To form the plain weave (16), the adjacent warp threads (1.sub.L,2.sub.L) that are used to form the upper shed and lower shed are alternately lifted from the lower shed position into the upper shed position and lowered from the upper shed position into the lower shed position by the same drop wire/needle shank (4). To form the gauze weave (15), only the warp threads (2.sub.D) that form the upper shed are raised by the drop wire/needle shank (4) from the lower shed position into the upper shed position and lowered from the upper shed position into the lower shed position.
First Claim
Other Claims data not available
