Reprocessing method by fluoride volatility process using solid-gas separation
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 24, 2007
Grant Date -
Mar 16, 2006
app pub date -
Apr 4, 2005
filing date -
Jul 30, 2004
priority date (Note) -
Expired
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

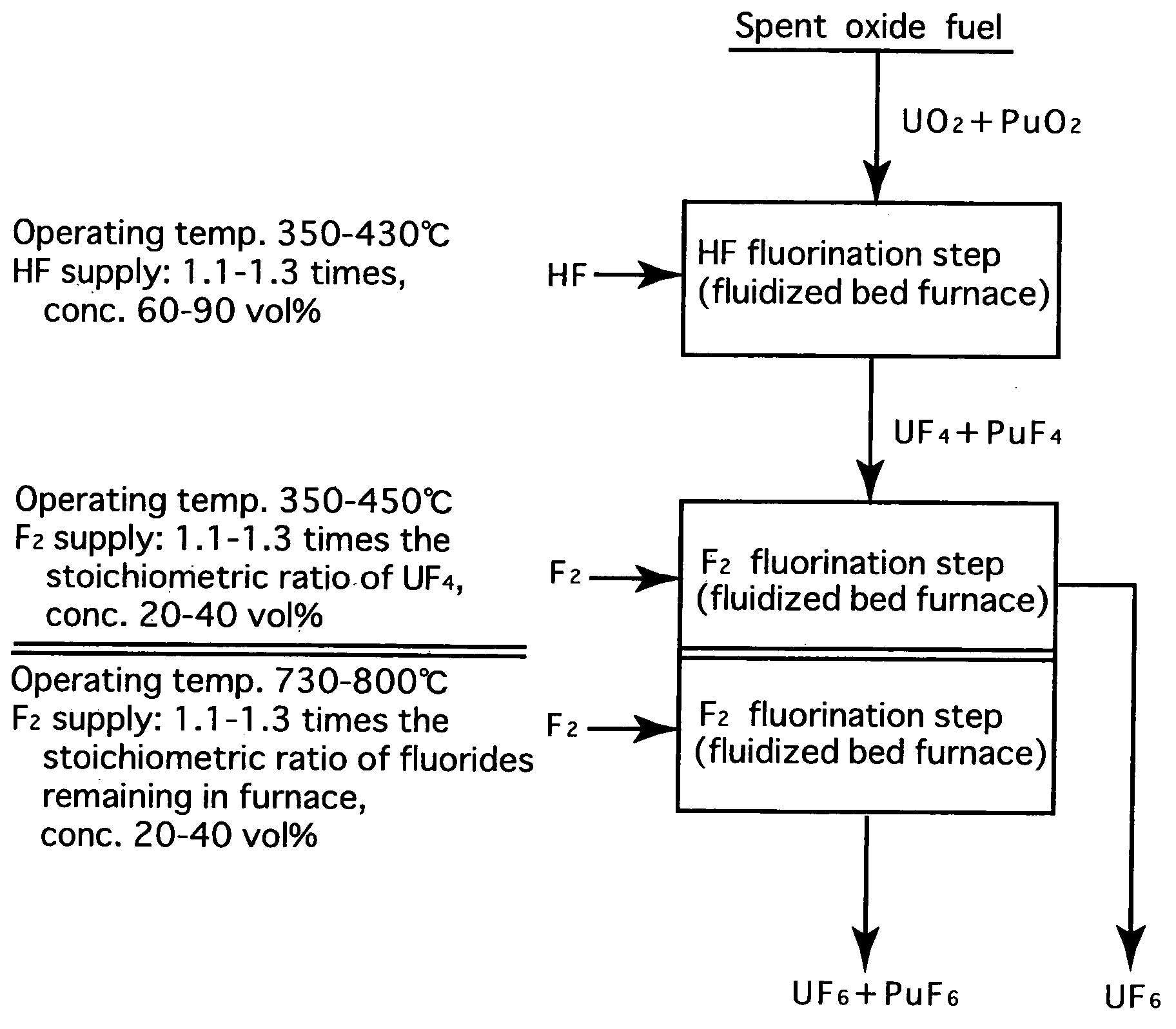

Fluorine or a fluorine compound is subjected to a reaction with a spent oxide fuel to produce fluorides of uranium and plutonium, and the fluorides are recovered using a difference in volatility behavior. The spent oxide fuel is subjected to a reaction with an HF gas, whereby uranium, plutonium and most impurities are converted into solid fluorides having low valences or remained as oxides to inhibit volatilization thereof, and then in an F.sub.2 fluorination step, the HF fluorination product is subjected to a reaction with a fluorine gas in two stages: one at a low temperature and the other at a high temperature, whereby a certain amount of gaseous uranium and volatile impurities are separated with plutonium kept in a solid form in the first stage, and mixed fluorides of remaining uranium and plutonium are fluorinated into hexafluorides at the same time in the second stage. By such a reprocessing method, plutonium enrichment can be adjusted, uranium and plutonium can be purified, and steps are simplified as well. In addition, reactors are hard to be corroded or deteriorated.
First Claim
all claims..Other Claims data not available
Family

- 15 United States
- 10 France
- 8 Japan
- 7 China
- 5 Korea
- 2 Other
Patent Owner(s)
Patent Owner | Address | |
---|---|---|
JAPAN ATOMIC ENERGY AGENCY INDEPENDENT ADMINISTRATIVE CORPORATION | 4-49 MURAMATSU TOKAI-MURA NAKA-GUN IBARAKI-KEN |
International Classification(s)

- 2005 Application Filing Year
- G21C Class
- 152 Applications Filed
- 69 Patents Issued To-Date
- 45.40 % Issued To-Date
Inventor(s)
Inventor Name | Address | # of filed Patents | Total Citations |
---|---|---|---|
Amamoto, Ippei | Higashi-Ibaraki-gun, JP | 5 | 25 |
# of filed Patents : 5 Total Citations : 25 | |||
Sato, Koji | Higashi-Ibaraki-gun, JP | 457 | 4129 |
# of filed Patents : 457 Total Citations : 4129 |
Cited Art Landscape
- No Cited Art to Display

Patent Citation Ranking
- 1 Citation Count
- G21C Class
- 12.07 % this patent is cited more than
- 18 Age
Forward Cite Landscape
- No Forward Cites to Display

Maintenance Fees
Fee | Large entity fee | small entity fee | micro entity fee | due date |
---|
Fee | Large entity fee | small entity fee | micro entity fee |
---|---|---|---|
Surcharge after expiration - Late payment is unavoidable | $700.00 | $350.00 | $175.00 |
Surcharge after expiration - Late payment is unintentional | $1,640.00 | $820.00 | $410.00 |
Full Text

Legal Events
Date | Code | Event | Description |
---|---|---|---|
Oct 26, 2015 | STCH | INFORMATION ON STATUS: PATENT DISCONTINUATION | free format text: PATENT EXPIRED DUE TO NONPAYMENT OF MAINTENANCE FEES UNDER 37 CFR 1.362 |
Sep 25, 2015 | FP | LAPSED DUE TO FAILURE TO PAY MAINTENANCE FEE | Effective Date: Sep 25, 2015 |
Sep 25, 2015 | LAPS | LAPSE FOR FAILURE TO PAY MAINTENANCE FEES | |
May 08, 2015 | REMI | MAINTENANCE FEE REMINDER MAILED | |
Feb 24, 2011 | FPAY | FEE PAYMENT | year of fee payment: 4 |
Sep 25, 2007 | I | Issuance | |
Sep 08, 2005 | P | Published | |
Dec 16, 2004 | AS | ASSIGNMENT | free format text: ASSIGNMENT OF ASSIGNORS INTEREST;ASSIGNORS:KIRIYAMA, HIROMITSU;YAMAKAWA, KOICHI;REEL/FRAME:016140/0408 Owner name: JAPAN ATOMIC ENERGY RESEARCH INSTITUTE, JAPAN Effective Date: Dec 16, 2004 |
Aug 27, 2004 | F | Filing | |
Mar 04, 2004 | PD | Priority Date |
