Retardance measurement system and method
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 10, 2007
Grant Date -
Jan 13, 2005
app pub date -
Jul 8, 2003
filing date -
Jul 8, 2003
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

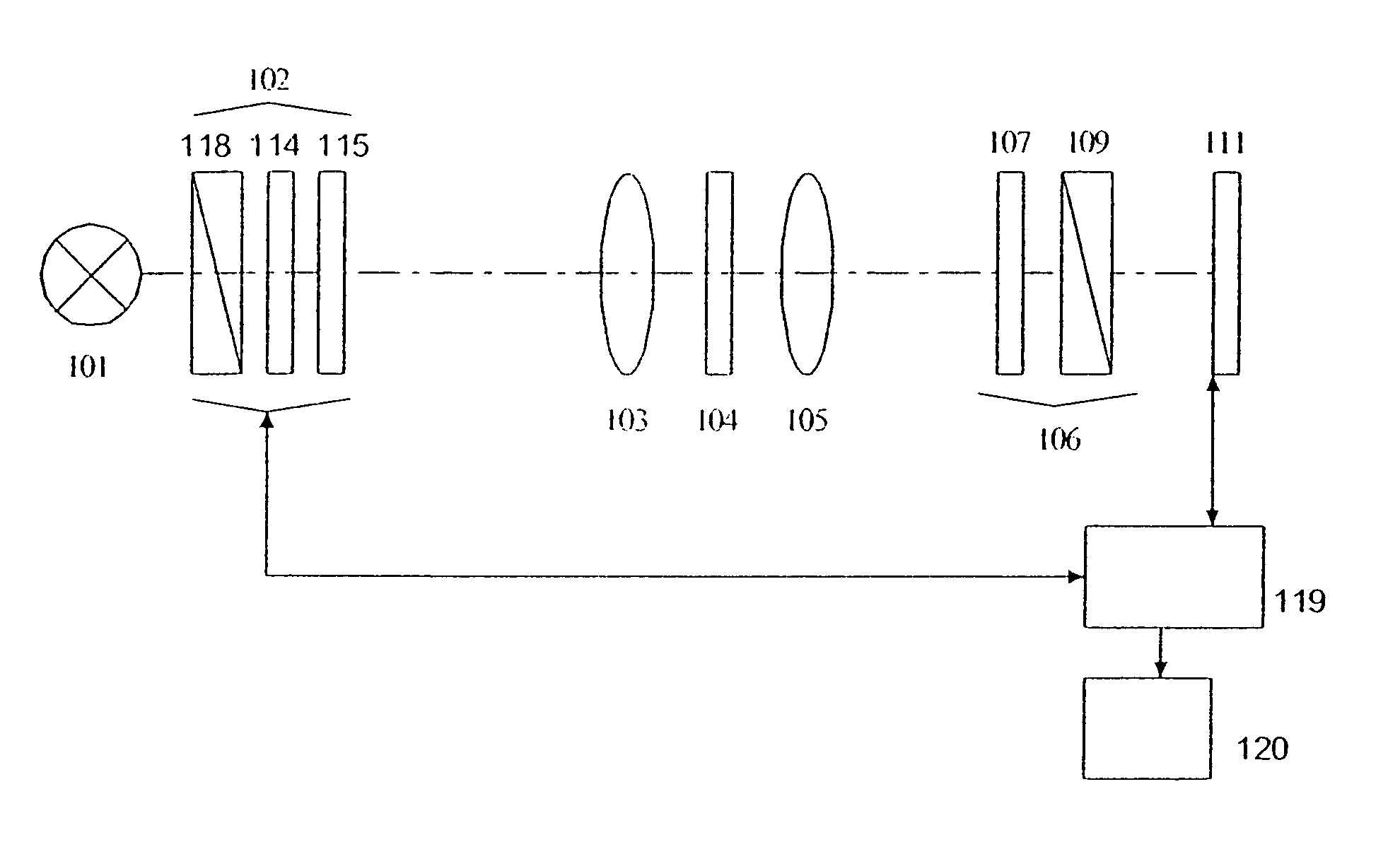

In an apparatus and method for measuring retardance and slow axis azimuth in sample specimens, a sample is illuminated by circularly polarized monochromatic light which is then analyzed by an elliptical analyzer at different settings. In another embodiment, light conditioned by an elliptical polarizer at various settings illuminates a specimen and the beam exiting the sample is analyzed by a circular analyzer. The elliptical analyzer/polarizer may have selectable ellipticity and azimuth angle, including in some cases a setting of circular polarization. Background images obtained with selected settings of the elliptical analyzer/polarizer, but without the sample present, are used in some embodiments to improve the measurement.
First Claim
Other Claims data not available
