Energy-absorbing bolster for an automotive instrument panel assembly
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 10, 2007
Grant Date -
N/A
app pub date -
Nov 4, 2005
filing date -
Nov 4, 2005
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

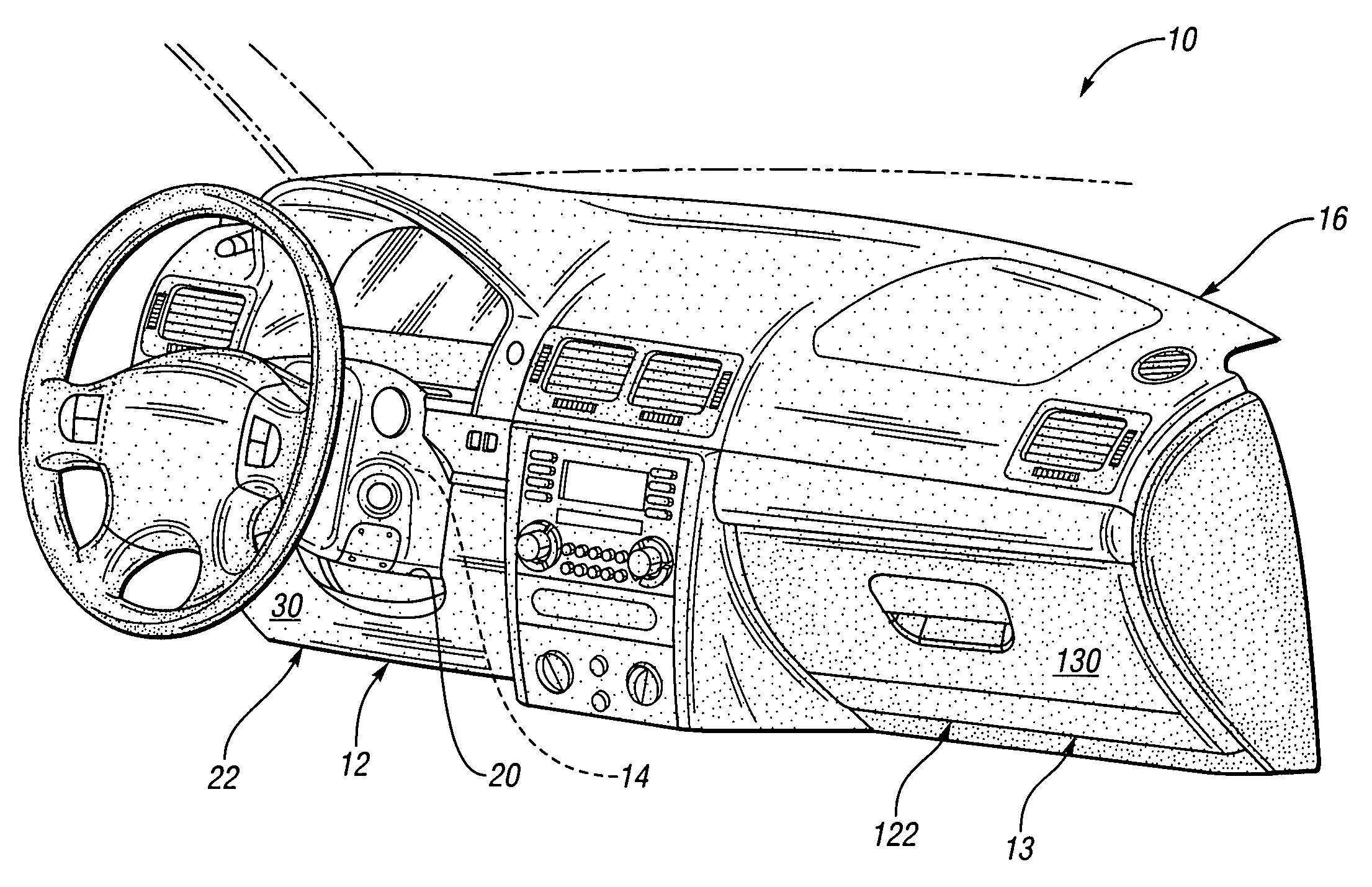

Energy-absorbing bolsters for an automotive instrument panel assembly are provided wherein each of the bolsters includes a network of thermoplastic cells having a plurality of interconnected sides for absorbing energy of an impact with a front panel by a passenger of the vehicle in an energy absorption area of the front panel. Each bolster includes a thermoplastic cover section including the front panel having a front outer surface and a rear inner surface. A thermoplastic rib structure lays immediately behind the rear inner surface of the front panel in the energy absorption area. A thermoplastic backing section includes a back panel having a rear outer surface and an inner surface and is secured to the cover section in containing relationship to the rib structure to form a hollow compartment for the rib structure in the energy absorption area. The rib structure includes a first set of energy-absorbing, thermoplastic, planar members which are integrally molded to and extend outwardly from one of the inner surfaces in a direction generally perpendicular to the inner surfaces to at least partially form the network.
