Switch-mode power supply voltage regulator and methodology
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 3, 2007
Grant Date -
May 11, 2006
app pub date -
Nov 5, 2004
filing date -
Nov 5, 2004
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

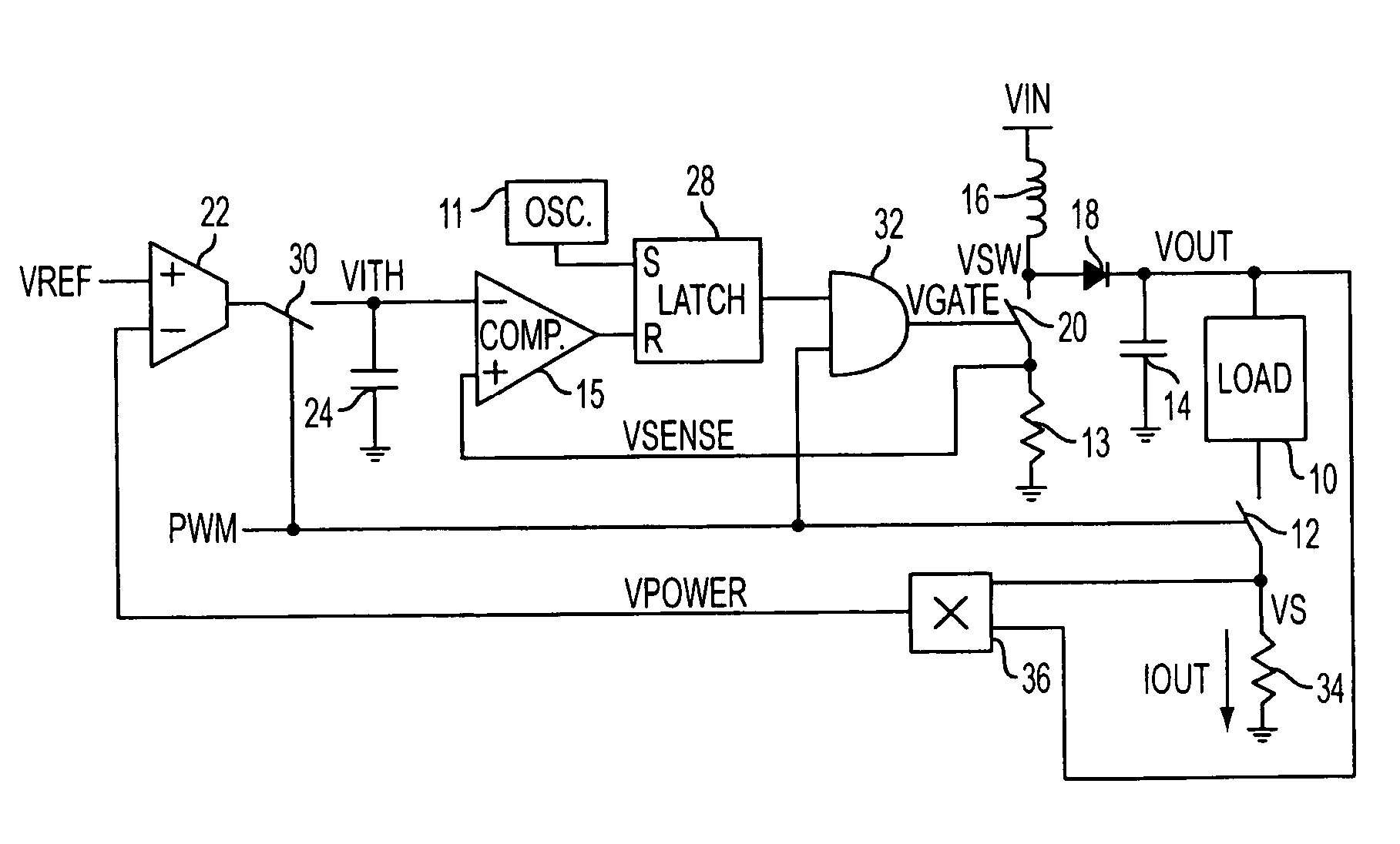

Pulse width modulation of the connection of a load output terminal to a power supply terminal is effected. In response to a first level of the pulse width modulated signal, the load is disconnected from the power supply terminal, steady-state load voltage is preserved on a capacitor connected between a load output terminal and a power supply terminal, and steady-state load current information is held on a capacitor within the feedback loop. In response to a second level of the pulse width modulated signal, the load is reconnected to the power supply terminal, and load voltage and current instantaneously resume at their correct steady-state values.
