Process for automatic removal of packages
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 27, 2007
Grant Date -
Nov 3, 2005
app pub date -
Jul 8, 2003
filing date -
Jul 8, 2002
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

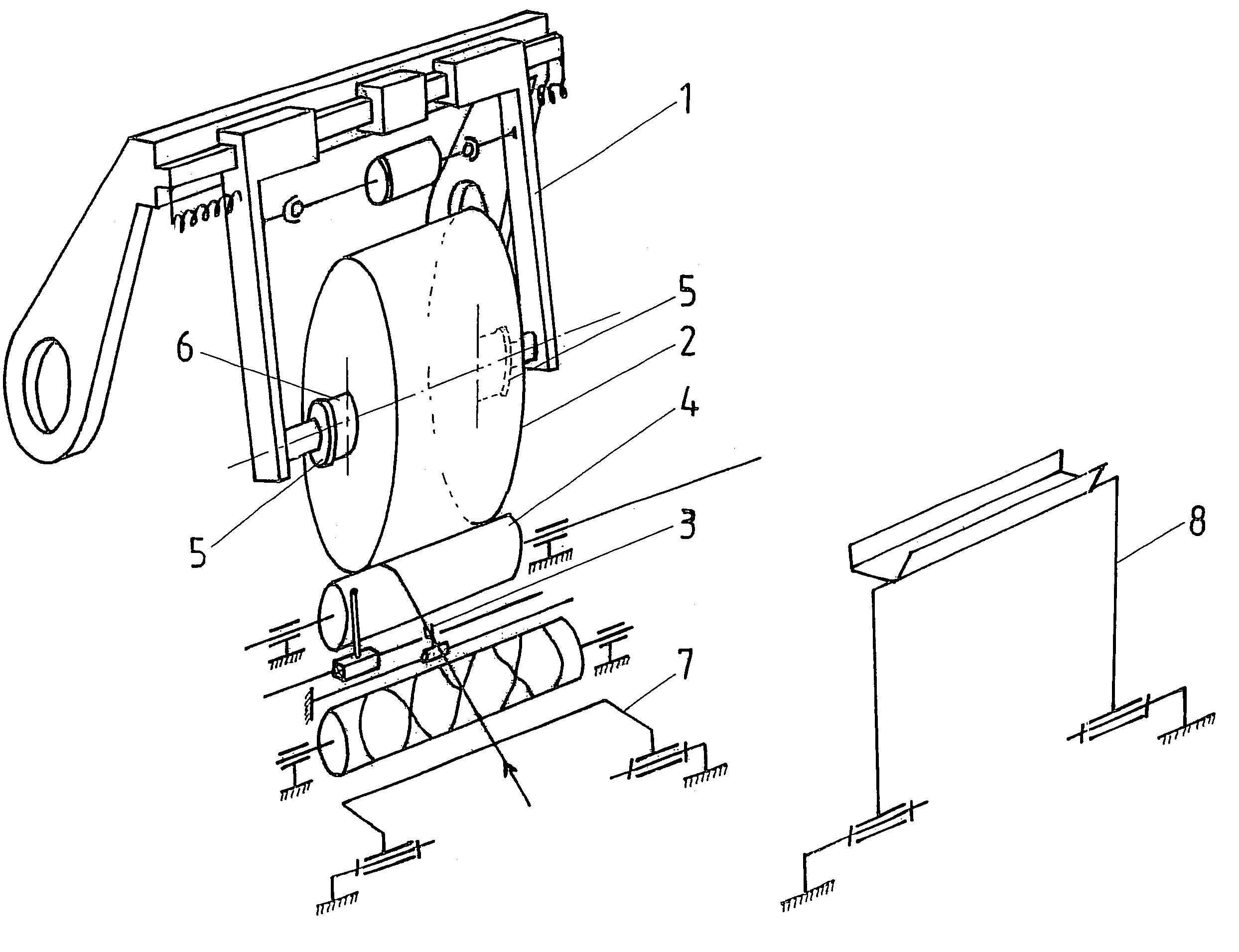

A process for automatically removing packages in a winding station of a yarn winding machine, having elements (1) for holding and disengaging a full package (2), a winding guide (3) guiding the yarn to be wound during winding, a bar (7) for disengagement from the winding guide (3), a package drive (4), heads (5) for gripping and holding the spool (6) and a device (8) for supplying the station with spools (6). The process includes providing, during each removal cycle, a relaxation of the tension of the supply yarn, then restarting a new winding cycle after completing the removal cycle. The invention is more particularly applicable to the field of the textile industry, in particular machines for winding yarns.
First Claim
Other Claims data not available
