MACHINE TOOL
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 13, 2007
Grant Date -
Mar 15, 2007
app pub date -
Sep 12, 2006
filing date -
Sep 13, 2005
priority date (Note) -
Granted
status (Latency Note)
Importance
Abstract

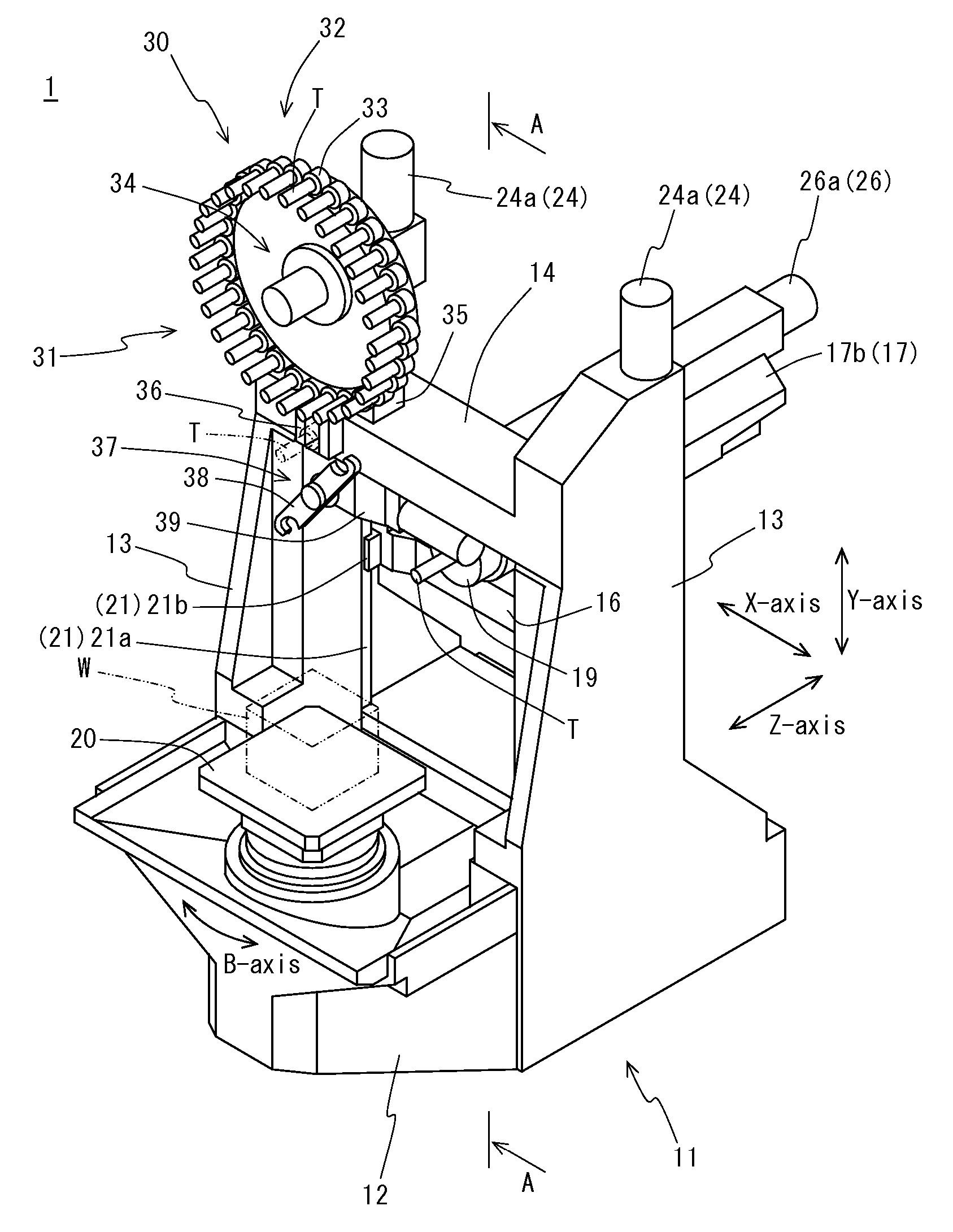

Machine tool with: a bed furnished with a base and two side walls provided standing along respective left and right sides of the base; a first saddle composed of a rectangular frame, with vertical sides provided perpendicularly and transverse sides provided sideways, and both ends of the frame sideways being supported on rear faces of the side walls so as to be perpendicularly movable; a second saddle arranged within the first-saddle frame and provided to be movable sideways, and having a front-to-rear penetrating through-hole; a spindle head arranged in the second-saddle through-hole and provided to be movable back-and-forth; a tool-retaining spindle supported, by the spindle head, with its axis paralleling the front-to-rear orientation and rotatable about its axial center; and, arranged on the bed, a table on which workpieces are set.
First Claim
Other Claims data not available
