Beam winder with yarn shrink system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 27, 2007
Grant Date -
Dec 14, 2006
app pub date -
Aug 7, 2006
filing date -
Jun 3, 2002
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

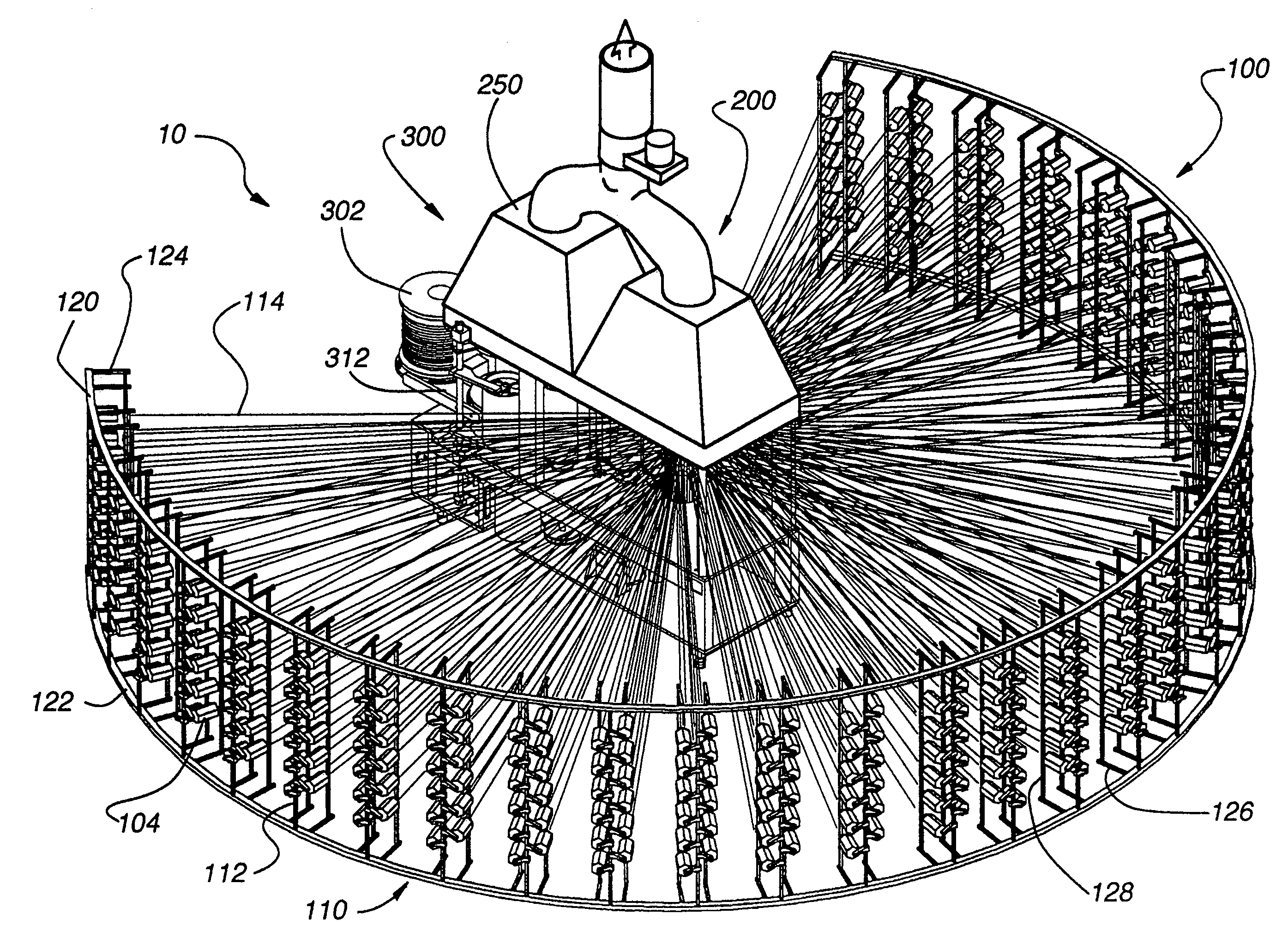

An apparatus and method for winding a sheet of aligned parallel yarns onto a beam is described. The beam winder utilizes a circularly arced yarn spool rack that feeds each yarn to an alignment comb through associated guide tubes. The distance between each spool of yarn and the alignment comb is substantially the same for all spools of yarn, thereby equalizing the force necessary to pull them to the comb. Next, the aligned sheet of material is preshrunk using heated rollers and wound onto a beam. Multiple speed controlled stepper motors are utilized to maintain a constant low level of tension in the sheet during the shrinking process. After shrinkage, the tension level of the yarn sheet is increased as it is wrapped onto the beam. A turntable that supports two or more beams is provided to facilitate the rapid switching of beams once one beam has become full.
First Claim
Other Claims data not available
