Aluminum conductor composite core reinforced cable and method of manufacture
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 20, 2007
Grant Date -
Jun 16, 2005
app pub date -
Oct 22, 2004
filing date -
Apr 23, 2002
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

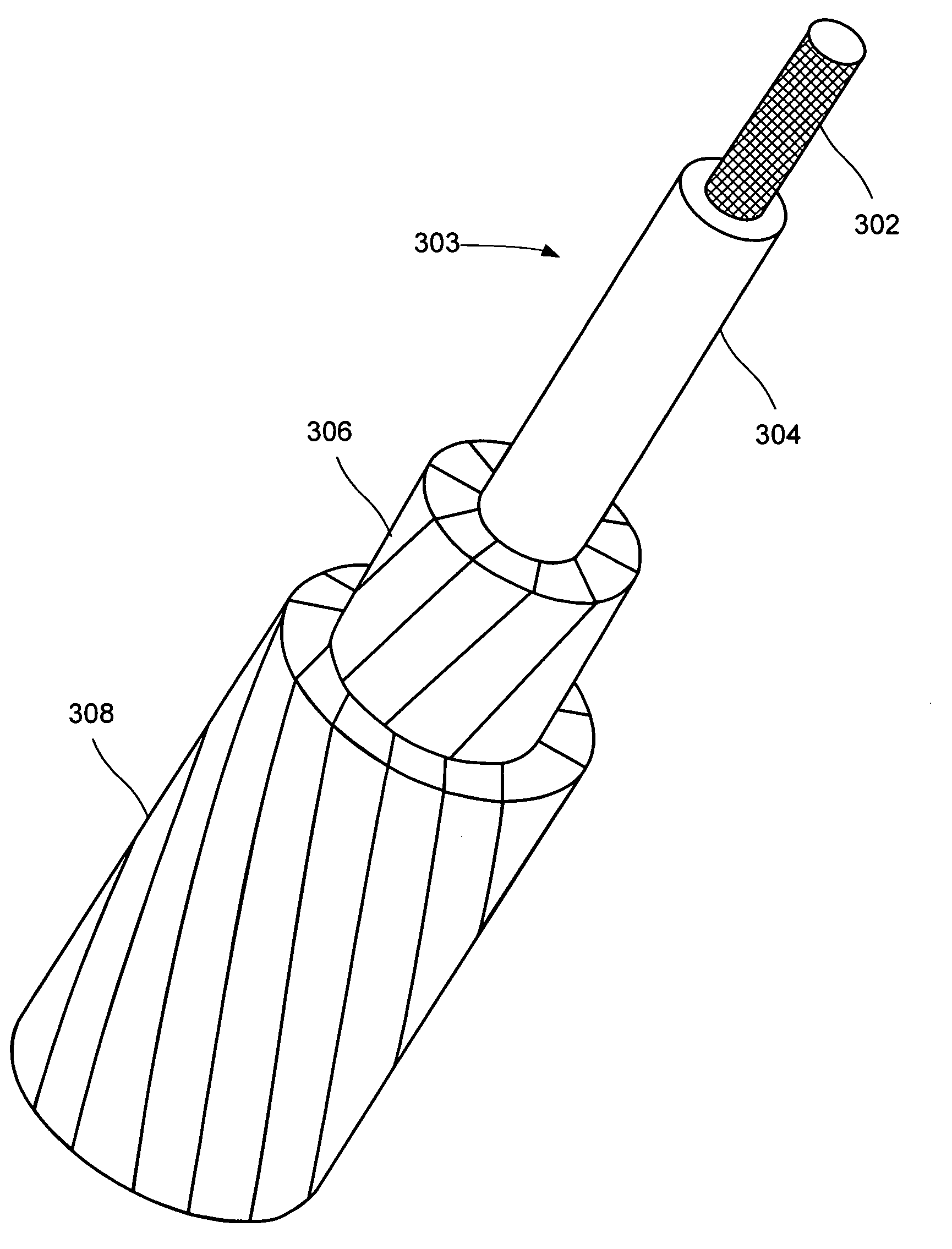

This invention relates to an aluminum conductor composite core reinforced cable (ACCC) and method of manufacture. An ACCC cable has a composite core surrounded by at least one layer of aluminum conductor. The composite core comprises a plurality of fibers from at least one fiber type in one or more matrix materials. The composite core can have a maximum operating temperature capability above 100.degree. C. or within the range of about -45.degree. C. to about 240.degree. C. or higher, at least 50% fiber to resin volume fraction, a tensile strength in the range of about 160 Ksi to about 370 Ksi, a modulus of elasticity in the range of about 7 Msi to about 37 Msi and a coefficient of thermal expansion in the range of about -0.6.times.10.sup.-6 per deg. C. to about 1.0.times.10.sup.-5 per deg. C. According to the invention, unique processing techniques such a B-Staging and/or film-coating techniques can be used to increase production rates from a few feet per minute to sixty or more feet per minute.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 53 Citation Count
- B32B Class
- 96.42 % this patent is cited more than
- 18 Age
