Machine tool
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 20, 2007
Grant Date -
Aug 24, 2006
app pub date -
Jan 27, 2006
filing date -
Feb 23, 2005
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

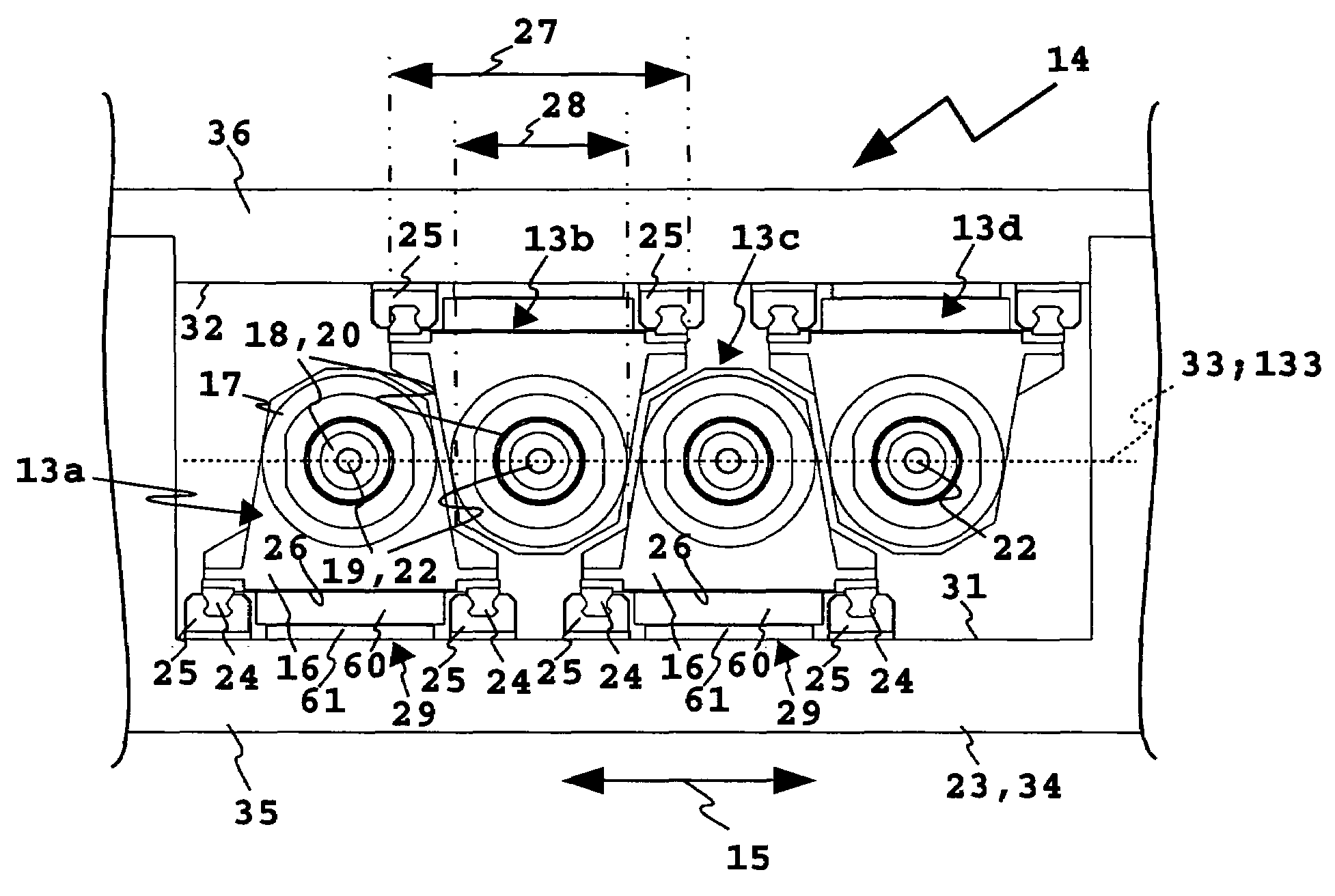

A machine tool for machining workpieces includes a spindle group with at least two spindle arrangements placed alongside each other, each spindle arrangement possessing a spindle to receive a machining tool. Each spindle arrangement is guided on a guide arrangement in the direction of the axis of the respective spindle in a longitudinally sliding manner on a holding device or frame for the spindle group, each guide arrangement possesses an external clearance which is larger than the width of the respective spindle and that the guide arrangements of two directly adjacent spindle arrangements of the spindle group are arranged on mutually different sides of the holding device or frame so that the spindle axes are arranged closer together than in the case of an arrangement of the guide arrangements on the same side of the holding device or frame.
First Claim
Other Claims data not available
