Corrosion-resistant tension member, particularly a tendon for prestressed concrete
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 13, 2007
Grant Date -
Feb 17, 2005
app pub date -
Aug 2, 2004
filing date -
Aug 2, 2003
priority date (Note) -
In Force
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

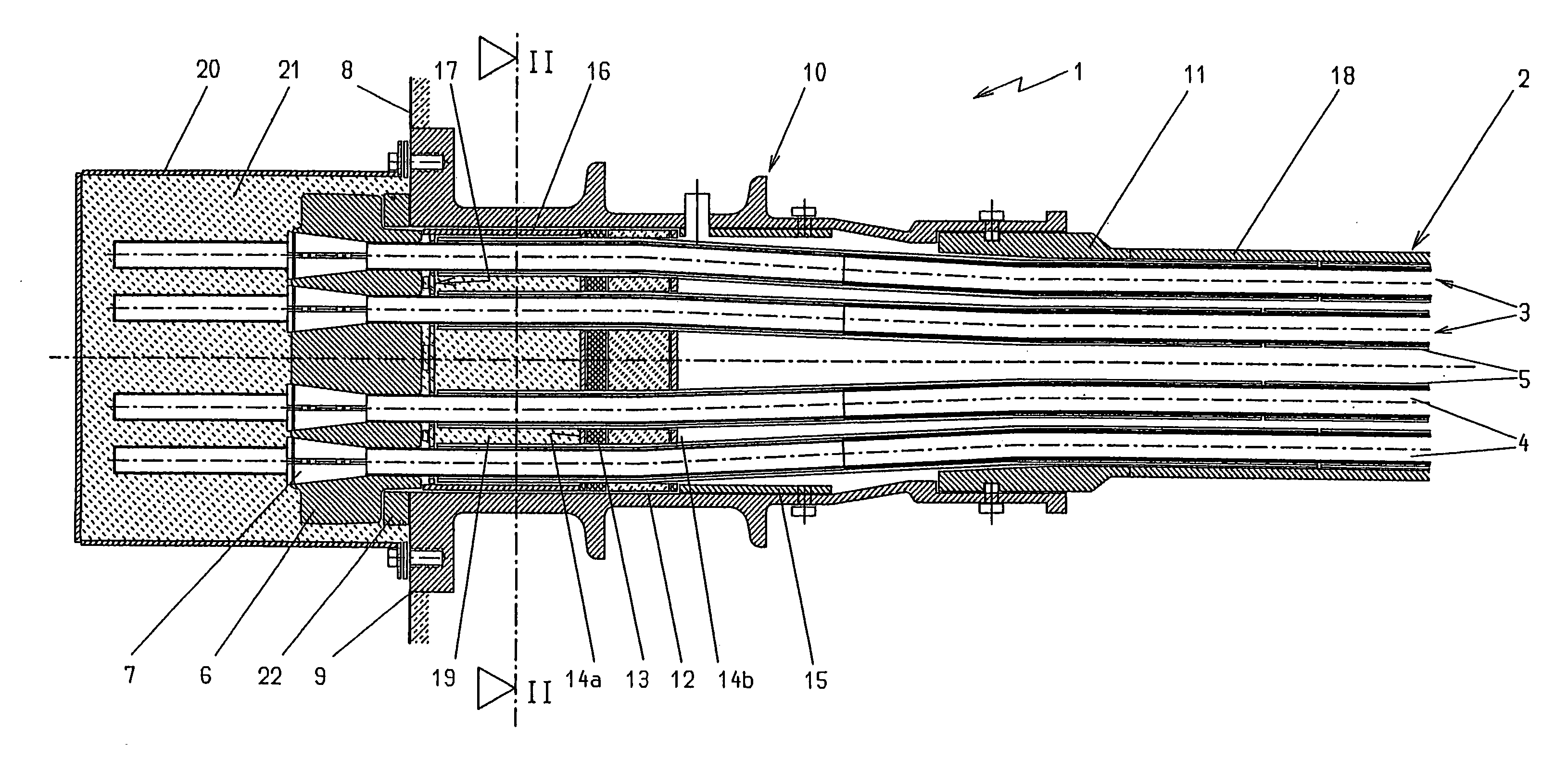

A corrosion-resistant tension member, particularly a tendon for prestressed concrete, comprising a bundle of tension elements arranged inside a sheathing, has at its ends anchoring devices each with an anchor plate. On the side of the anchor plate facing away from the open air side, a seal having tension elements running through it and having a sealing plate are arranged, the sealing plate being fixed in place on the side facing away from the anchor plate opposite the anchor body against longitudinal displacement. Between the anchor plate and a pressure plate butting against the sealing plate, pressure-transferring means, for example, a pressure tube, are provided, having a length calculated in such a way that a longitudinal displacement of the anchor plate that occurs when the tension elements are being tensioned, actuates the exertion of surface pressure to the sealing plate for activating the seal.
First Claim
all claims..Other Claims data not available
Family

- 15 United States
- 10 France
- 8 Japan
- 7 China
- 5 Korea
- 2 Other
Patent Owner(s)
Patent Owner | Address | |
---|---|---|
DYWIDAG-SYSTEMS INTERNATIONAL GMBH | 80796 MÜNCHEN |
International Classification(s)
Inventor(s)
Inventor Name | Address | # of filed Patents | Total Citations |
---|---|---|---|
Nuetzel, Oswald | Munich, DE | 6 | 67 |
# of filed Patents : 6 Total Citations : 67 | |||
Zimmermann, Egbert | Haar, DE | 7 | 84 |
# of filed Patents : 7 Total Citations : 84 |
Cited Art Landscape
- No Cited Art to Display

Patent Citation Ranking
Forward Cite Landscape
- No Forward Cites to Display

Maintenance Fees
Fee | Large entity fee | small entity fee | micro entity fee | due date |
---|
Fee | Large entity fee | small entity fee | micro entity fee |
---|---|---|---|
Surcharge after expiration - Late payment is unavoidable | $700.00 | $350.00 | $175.00 |
Surcharge after expiration - Late payment is unintentional | $1,640.00 | $820.00 | $410.00 |
Full Text

Legal Events
- No Legal Status data available.

Matter Detail

Renewals Detail
