Pressure regulator
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 23, 2007
Grant Date -
Nov 25, 2004
app pub date -
Mar 1, 2004
filing date -
Mar 3, 2003
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

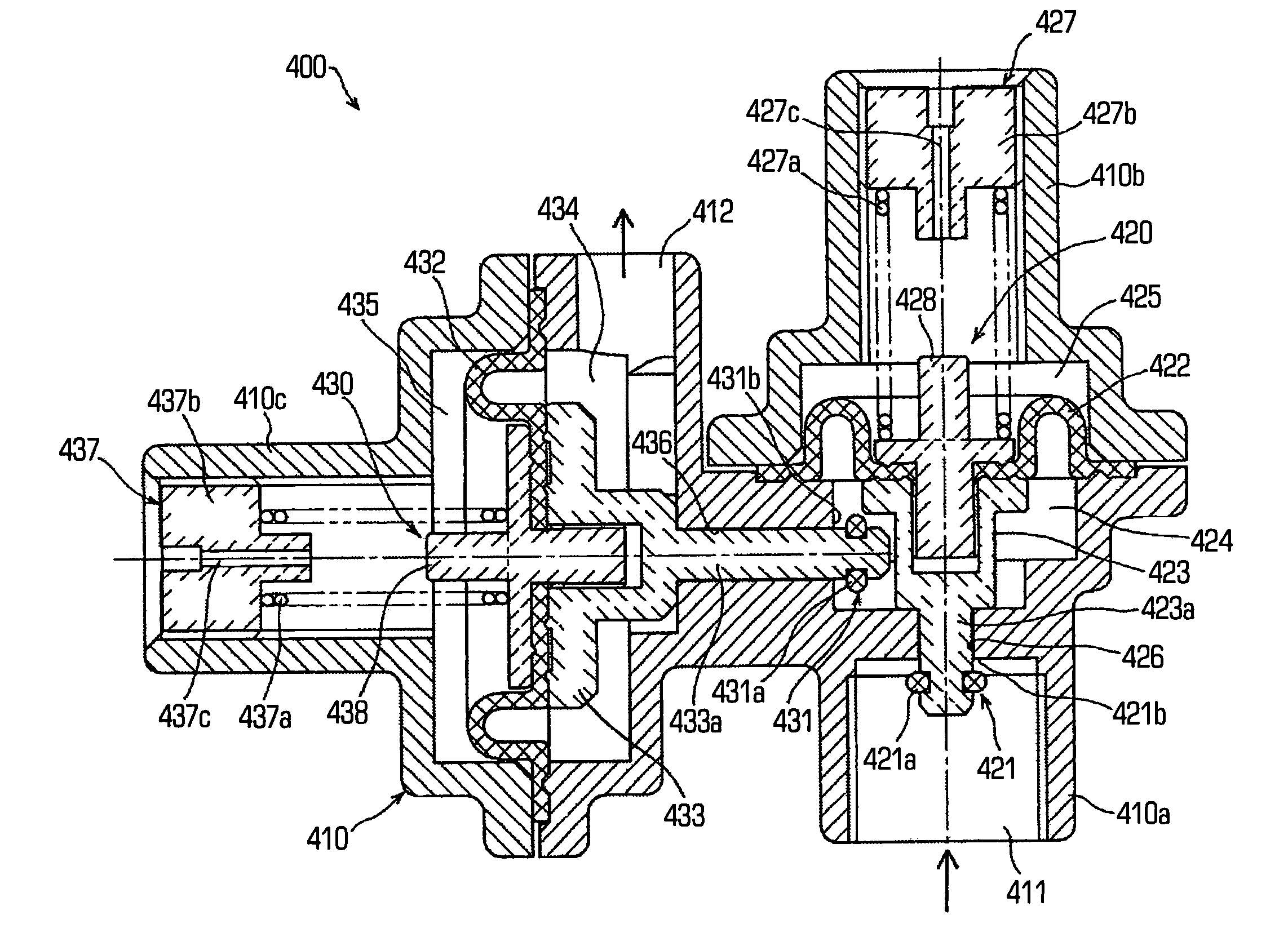

A main valve reduces an unregulated pressure of a high-pressure gas to a regulated pressure by being interlocked with a diaphragm, which receives the regulated pressure within a pressure regulating chamber and is displaced. A subsidiary valve is interlocked with the main valve through a plunger and reduces the unregulated pressure of the high-pressure gas to the regulated pressure. The subsidiary valve is located such that the force, which accompanies a pressure loss occurring at the subsidiary valve and which the subsidiary valve receives, cancels the force, which accompanies the pressure loss occurring at the main valve and acts upon the plunger. An adjustor adjusts a pressure loss value occurring at the subsidiary valve so as to be equal to the pressure loss value occurring at the main valve.
