Power fold mechanism for double arm mirrors
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 16, 2007
Issued Date -
N/A
app pub date -
Jul 5, 2005
filing date -
Apr 27, 2001
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

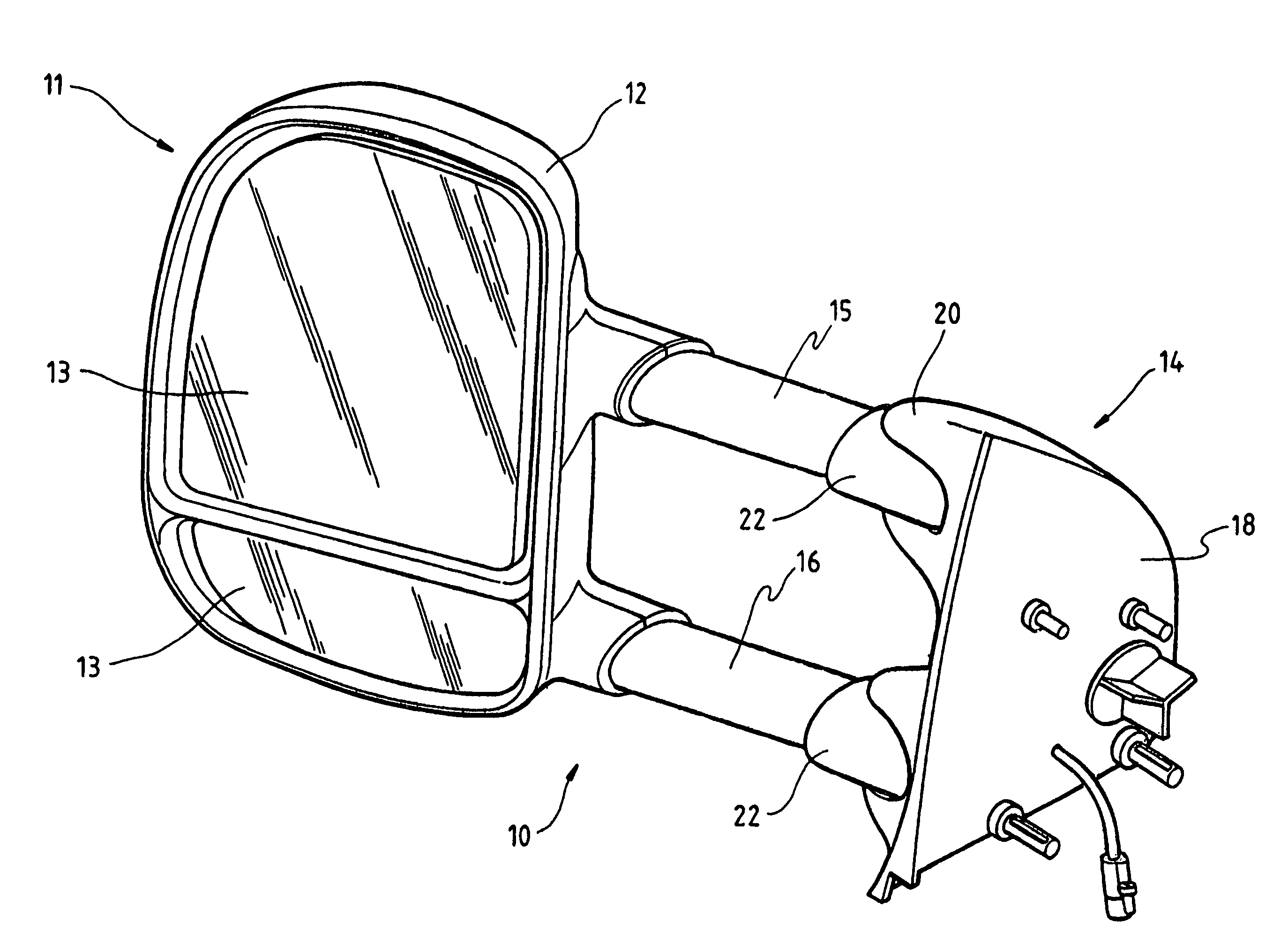

An exterior rear vision mirror assembly (10) for a motor vehicle, the assembly (10) having a base (14) to be attached to the vehicle, at least one arm (15, 16) extending from the base (14) and a mirror head (11) mounted to the at least one arm (15, 16) and having a mirror (13), the mirror head (11) and arm (15, 16) is adapted to be rotated about an axis in the base (14), a power fold system having a motor assembly (24) in the at least one arm or each arm (15, 16) to drive the mirror (13) from a driving position to a foldaway position and from the foldaway position to the driving position and an override system including a clutch (64) is provided so that the mirror (13) can be manually moved to the foldaway position.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- G02B Class
- 2.11 % this patent is cited more than
- 18 Age
