Press-forming machine
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 26, 2006
Grant Date -
Oct 12, 2006
app pub date -
Mar 23, 2004
filing date -
Apr 15, 2003
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

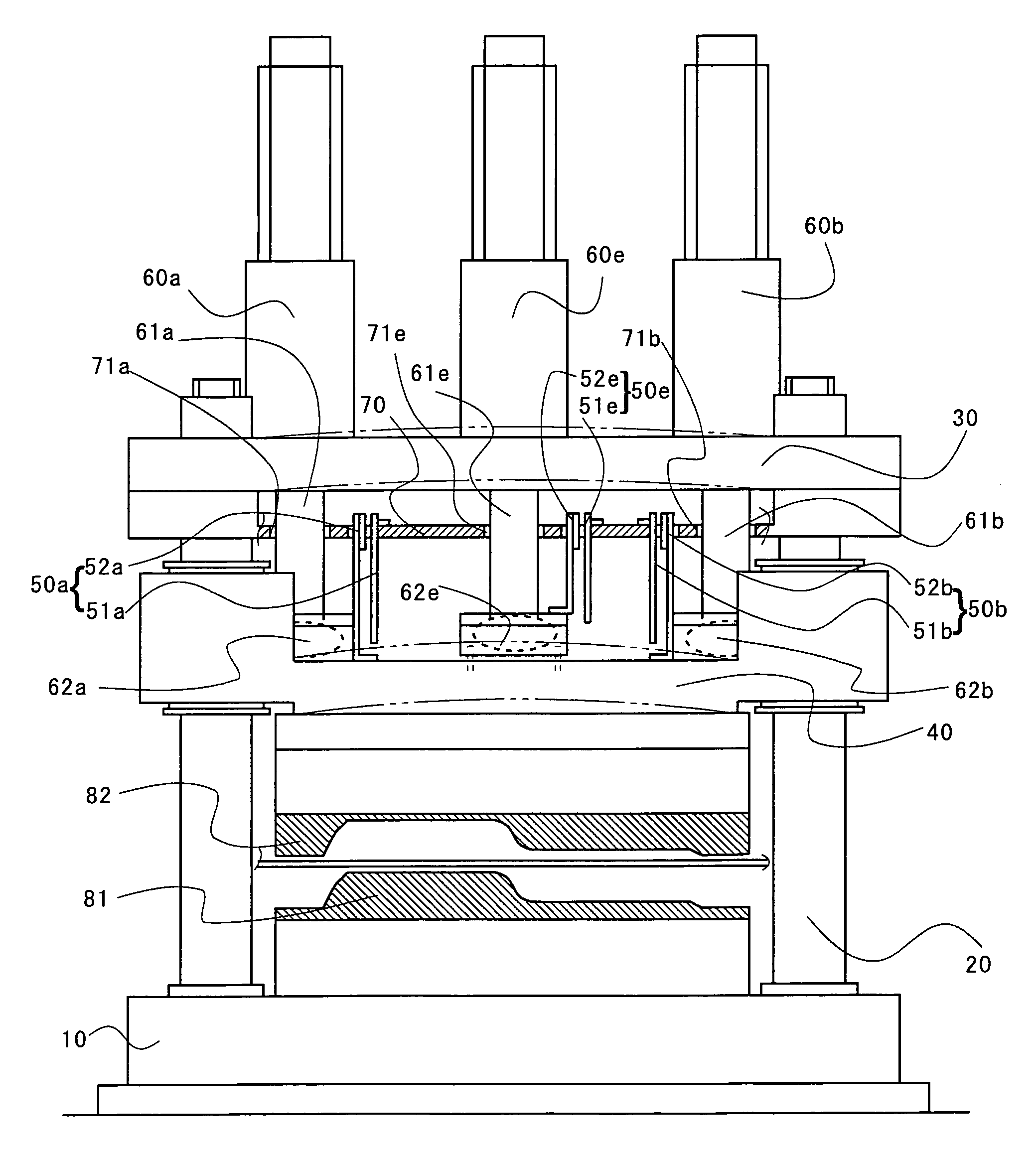

A press forming machine comprising driving shafts for pressing three or more respective pressure points and displacement measuring means for measuring a displacement close to the pressure point. A central driving shaft among the driving shafts has a gap (the slack) larger than those of other driving shafts between each of the driving shafts and a pressure plate. During press formation at a trial stage, a positional displacement close to each pressure point is measured by the displacement measuring means and control data is supplied to each driving source for driving a driving shaft to drive the pressure plate. Then, production press-formation is performed in accordance with the above result. Therefore, the central driving source can avoid overload by the slack of the driving shaft with the pressure plate.
First Claim
Other Claims data not available
