Lancet device for a face-to-face weaving machine and face-to-face weaving machine provided with such a lancet device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 14, 2006
Grant Date -
May 26, 2005
app pub date -
Oct 18, 2004
filing date -
Oct 17, 2003
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

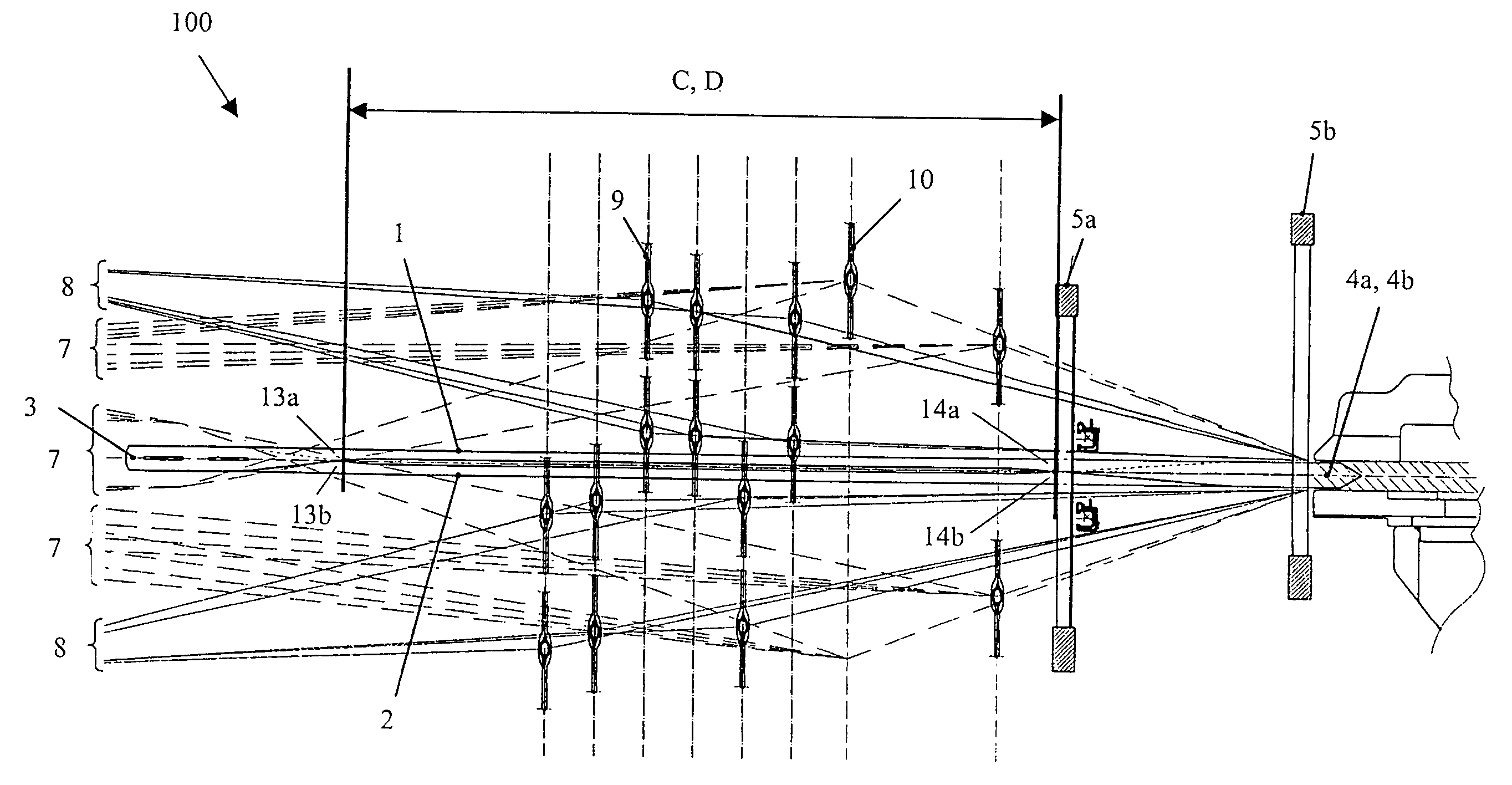

The invention relates to a lancet device for a face-to-face weaving machine (100), comprising one or several lancets (1,2,3;16), a lancet (1,2,3,16) at one extremity being provided to be installed in a lancet holder and at its other extremity being provided with a lancet tip (4a,4b), the lancets (1,2,3,16) being carried out in at least two embodiments, that are provided to be installed alternately next to one another in the face-to-face weaving machine, each of the two or several lancets (1,2,3,16) installed next to one another in the zone between the point where it is received in the lancet holder and the tip (4a,4b) of the lancet (1,2,3,16) on the opposite extremity of the lancet (1,2,3,16) being provided with one or several zones (C,D), that are not overlapping one another when the lancets (1,2,3,16) are projected in the weft direction. The invention furthermore relates to a face-to-face weaving machine that is equipped with a lancet device according to the invention.
First Claim
Other Claims data not available
