Instrument for applying a tie to two items and method of making same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 7, 2006
Grant Date -
Dec 30, 2004
app pub date -
Oct 24, 2002
filing date -
Oct 24, 2002
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

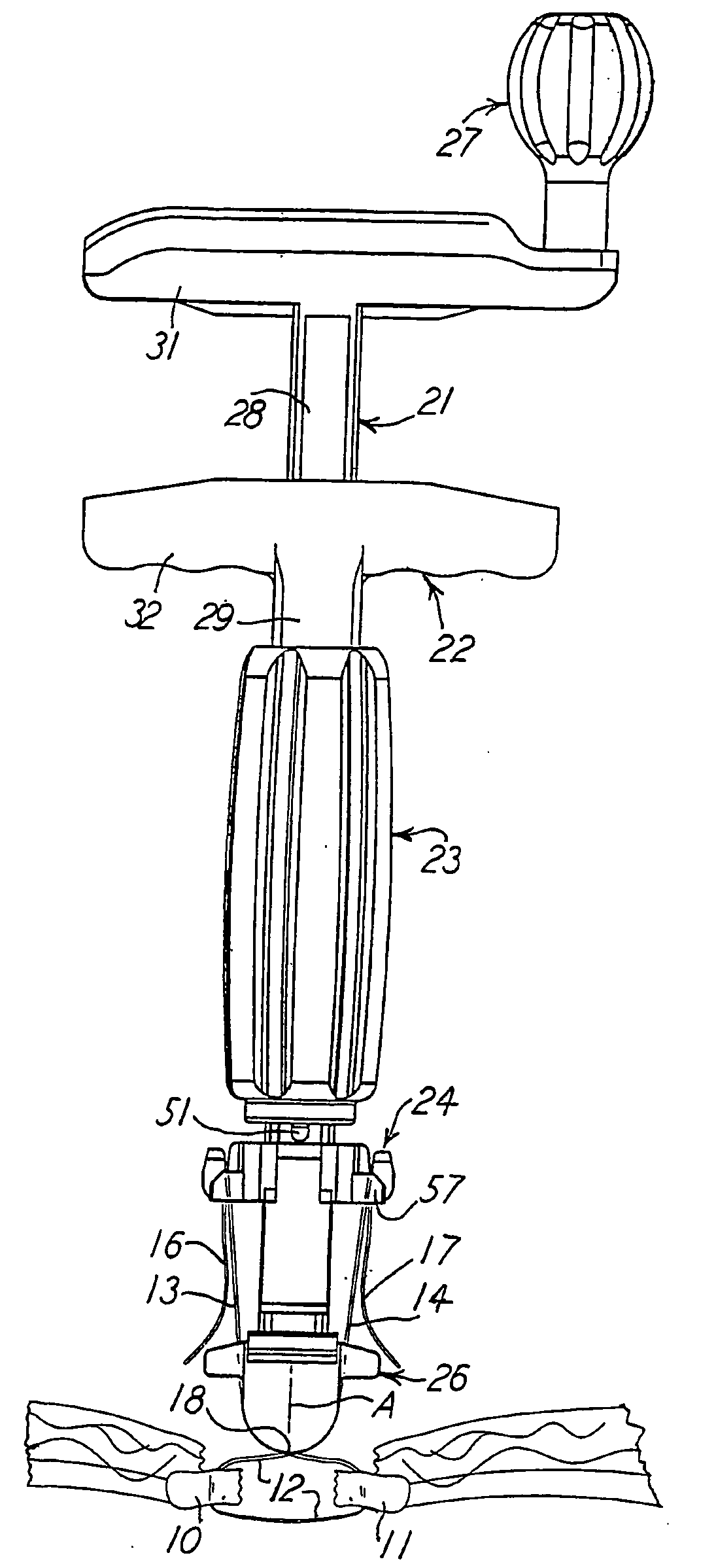

An instrument for applying a tie (12) to two items (10, 110), and a method of making same. The instrument is arranged for pulling separated bones or other items together and securing them together by twisting a tie onto them. The instrument can be made of plastic and it need not include any threaded parts. It can have two handles (21, 22) with a tie gripper (24) and a tie guide (26) on respective ones of the handles which can be squeezed together for pulling on a tie to draw separated items together. The handles rotate together, and there can be a crank (27) for effecting the rotation and thereby twist the tie onto the items.
First Claim
Other Claims data not available
