Rail-to-rail charge pump with replica circuitry
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 17, 2006
Grant Date -
Mar 16, 2006
app pub date -
Sep 14, 2004
filing date -
Sep 14, 2004
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

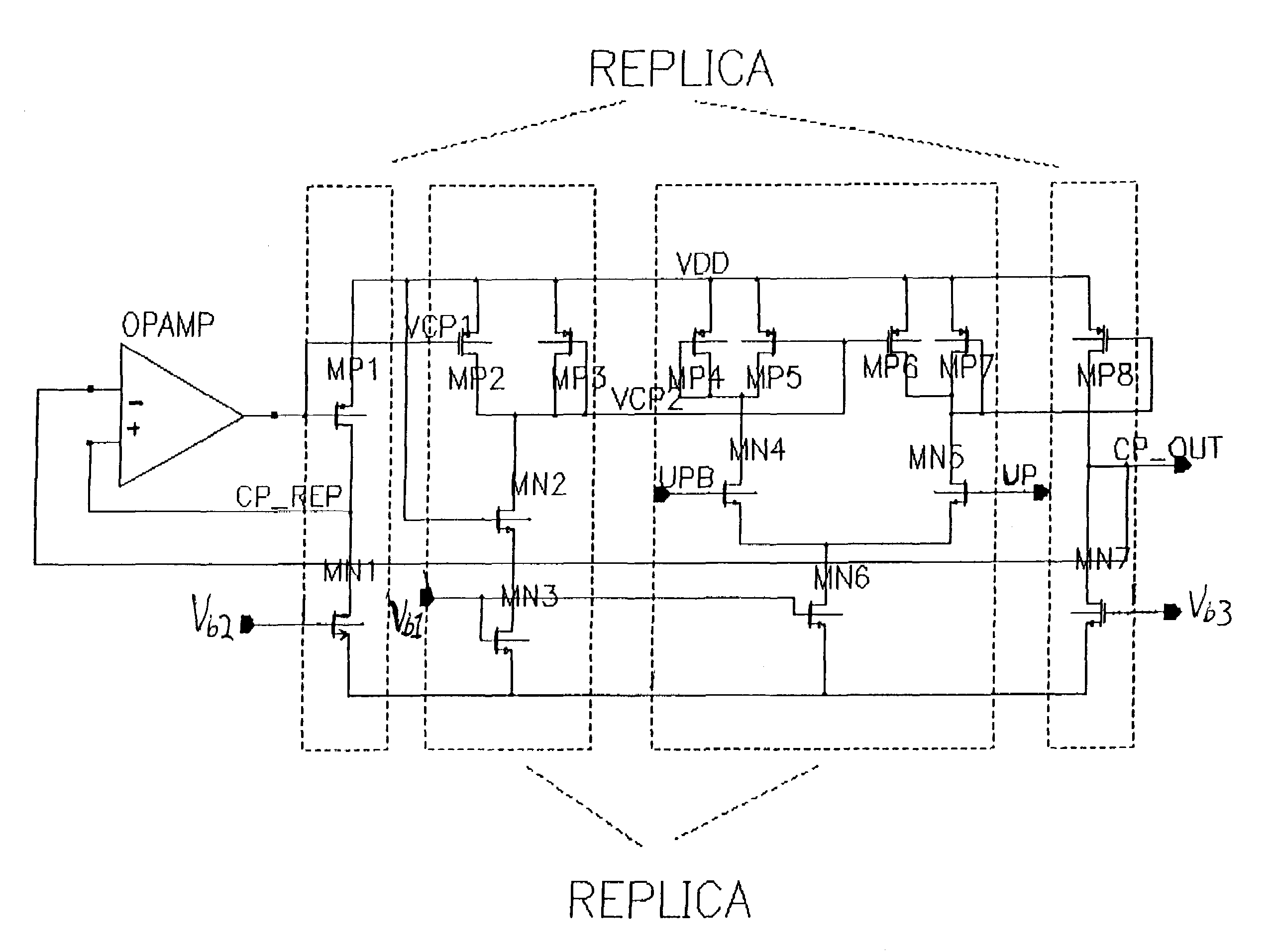

The charge pump circuit includes: a charge pump output branch having a first transistor and a second transistor coupled in series; an output branch replica having a third transistor and a fourth transistor coupled in series; a feedback circuit coupled between the output branch and the output branch replica; a charge pump input circuit coupled to the charge pump output branch, and having first and second input branches; and an input circuit branch replica controlled by the feedback circuit and coupled to the charge pump input circuit.
First Claim
Other Claims data not available
Family
Loading Family data...
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- G05F Class
- 0 % this patent is cited more than
- 19 Age
