Method of and apparatus for producing pellets from heavy hydrocarbon liquid
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 5, 2006
Grant Date -
N/A
app pub date -
Jul 27, 2000
filing date -
Jul 27, 2000
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

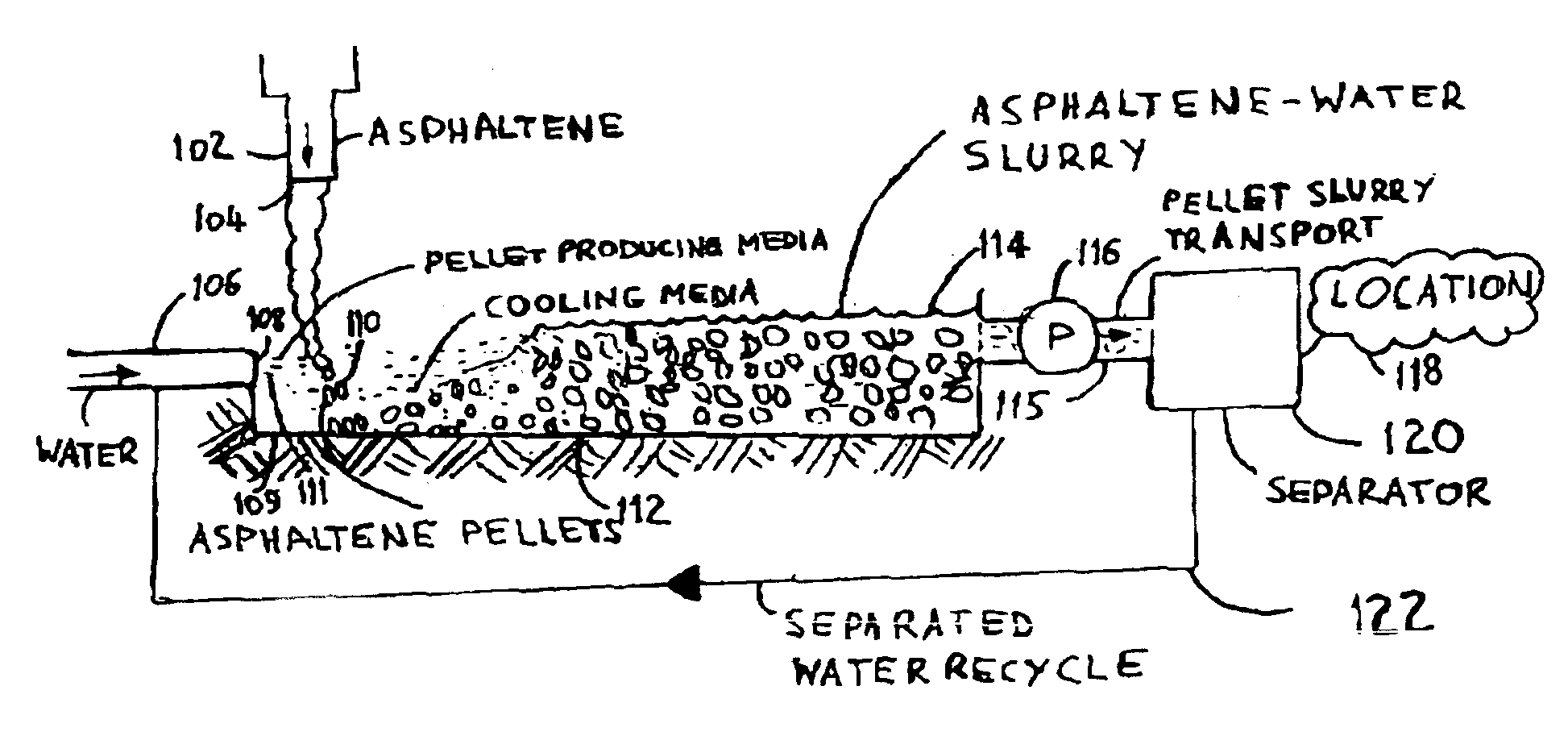

Apparatus for producing pellets from hot heavy hydrocarbon or asphaltene, in accordance with the present invention, includes flow means that supplies the hot heavy hydrocarbon or asphaltene through a conduit to its outlet; and pellet producing medium or means that breaks up the liquid stream of the hot asphaltene flowing out of the outlet of the conduit and produces pellets of asphaltene. Furthermore, the apparatus includes a reservoir or container that collects the pellets of heavy hydrocarbon or asphaltene together with some fluid producing a slurry; and transporting means that transports the slurry to the required location. Preferably, the fluid is liquid water. In addition, the pellet producing medium preferably is liquid water.
First Claim
Other Claims data not available
