Diamond blade
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 5, 2006
Grant Date -
Jun 9, 2005
app pub date -
Mar 28, 2003
filing date -
Apr 4, 2002
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

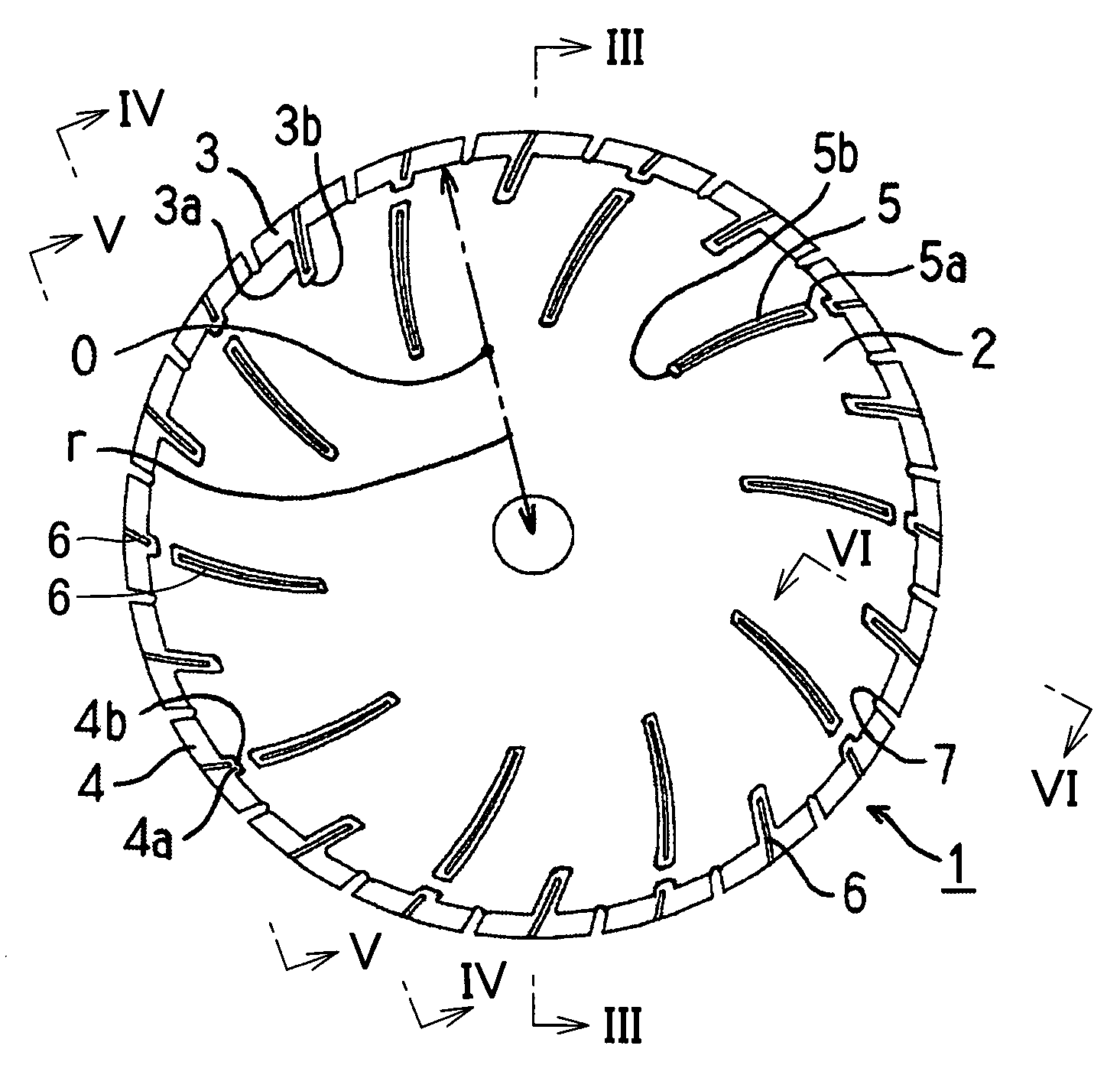

In relation to a blade cutting stone or concrete, a blade, preventing wearing of a core while preventing the core from wobbling, cuttable at a stable speed is provided. In a blade formed by providing slots on the outer peripheral edge of a circular core and fixing a superabrasive layer to a portion of the outer peripheral surface of the core located between the slots, the superabrasive layer consists of a first superabrasive layer having an extension formed by partially extending the superabrasive layer toward the inner periphery of the core and a second superabrasive layer. A reinforcing superabrasive layer extending from the outer periphery toward the inner periphery of the core is formed on the inner peripheral side of the second superabrasive layer while the reinforcing superabrasive layer is located closer to the outer periphery than a radial central portion of the core, and an outer peripheral end of the reinforcing superabrasive layer is located closer to the outer periphery than an inner peripheral end of the extension of the first superabrasive layer. The second superabrasive layer can also be provided with an extension having a relatively short radial length with respect to the extension of the first superabrasive layer.
First Claim
Other Claims data not available
