Occupant sensor
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 29, 2006
Issued Date -
N/A
app pub date -
Nov 30, 2003
filing date -
May 26, 2000
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

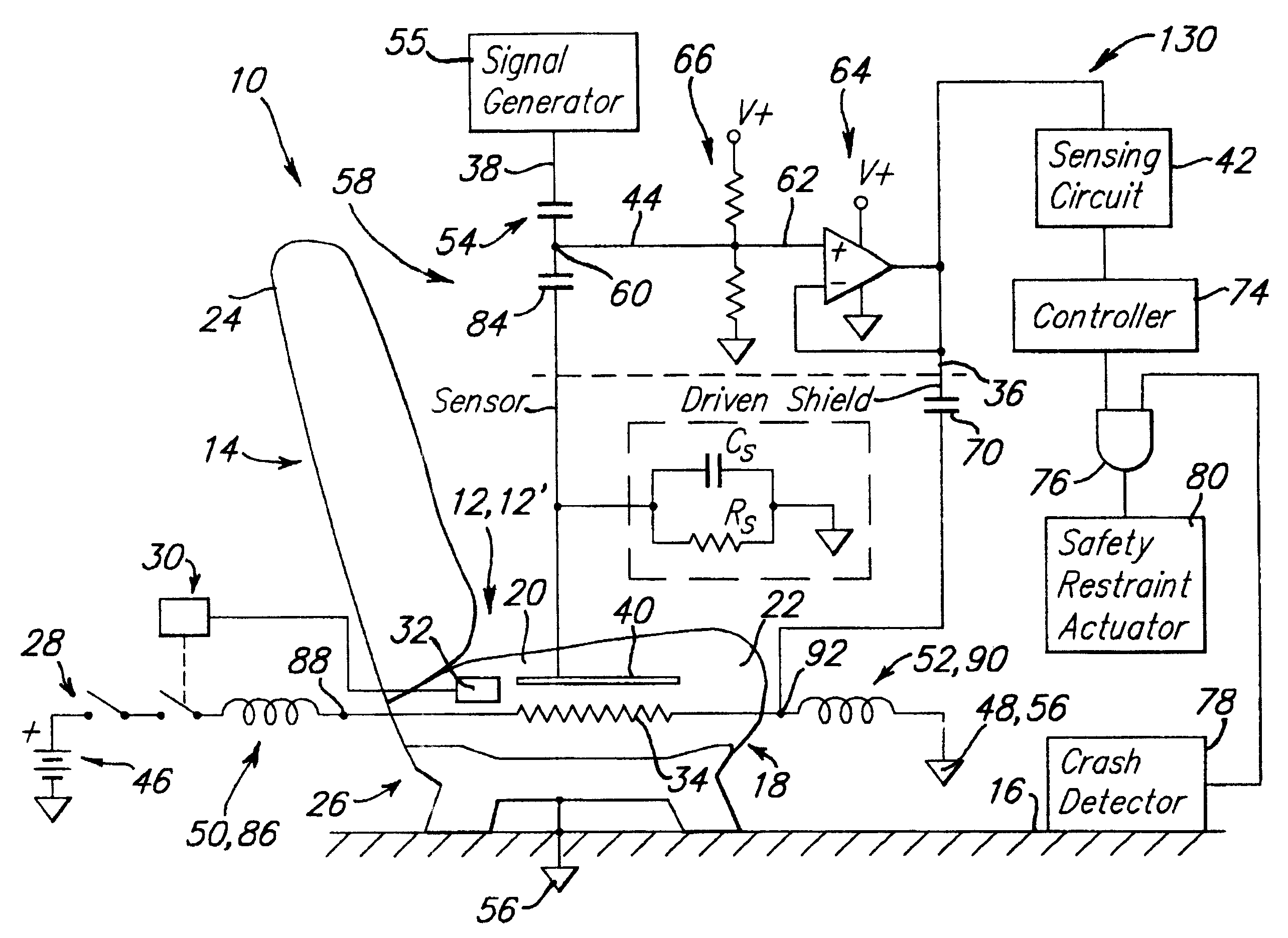

An oscillatory or pulsed first signal is operatively coupled to a first electrode placed between a conductive heating element and a seating region of a seat containing the heating element. A second signal substantially equal to the first signal is operatively coupled to a second electrode placed between the heating element and the first electrode. An occupant in the seat is sensed from a response to the first signal, responsive to which a safety restraint system may be controlled. In other embodiments, the second signal is operatively coupled to an electrode placed proximate to a side of the heating element away from the seating region of the seat, the second electrode comprises a sheath at least partially around at least a portion of the heading element, or the operative coupling of the first or second signals comprises AC coupling, for example, through an associated first or second capacitor.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 29 Citation Count
- G01R Class
- 74.65 % this patent is cited more than
- 19 Age
