Latching arrangement for a refrigerator door
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 29, 2006
Grant Date -
Sep 30, 2004
app pub date -
Oct 21, 2002
filing date -
Oct 22, 2001
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

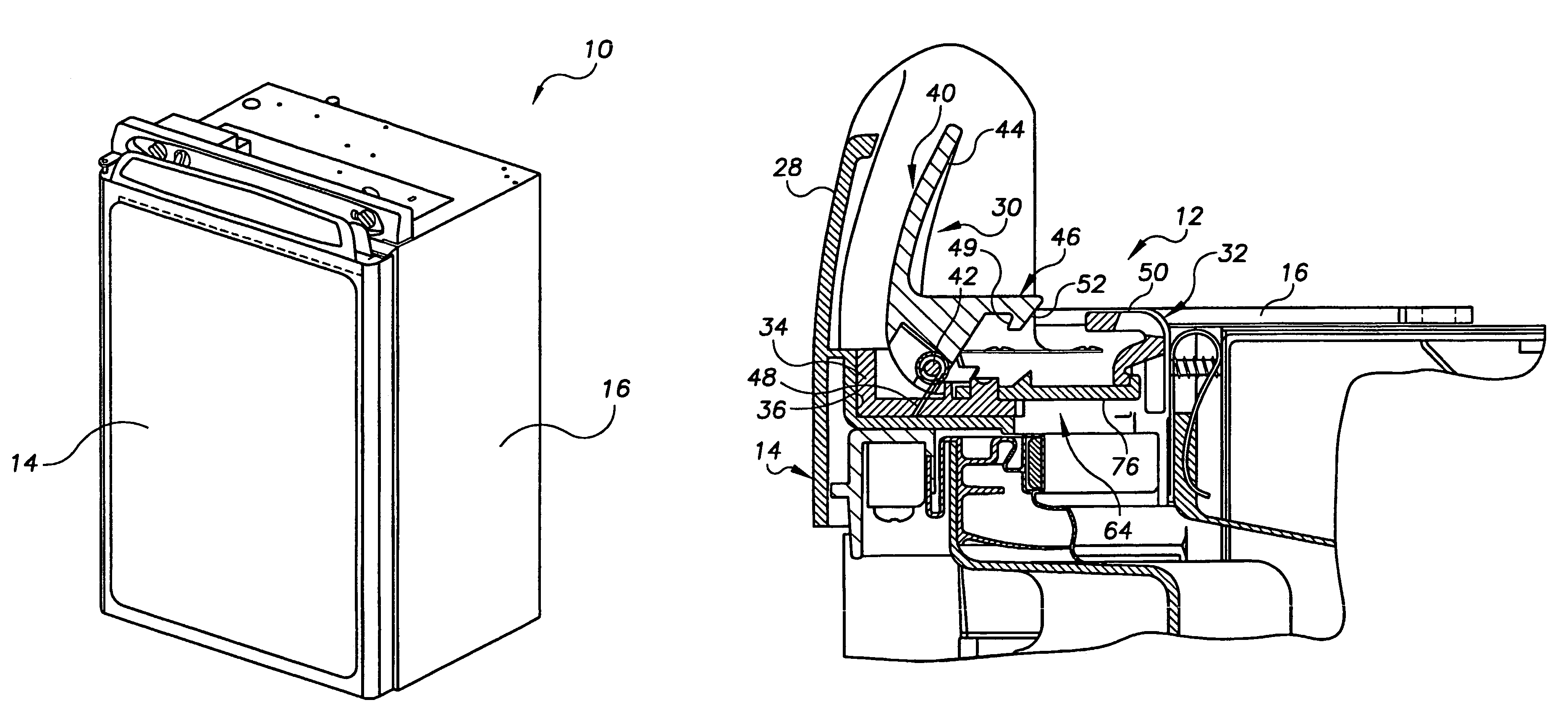

A latching arrangement for a refrigerator door includes a striker unit, a first latch arm and a second latch arm. The striker unit is secured to a cabinet of the refrigerator. The first latch arm is interconnected to the door for pivotal movement about a generally horizontal axis between a latched position and an unlatched position. In the latched position, the first arm releasably engages a first striker portion of the striker unit. The second latch arm is interconnected to the door for pivotal movement about a generally vertical axis between a latched position and an unlatched position. In the latched position, the second latch arm releasably engages a second striker portion of the striker unit.
First Claim
Other Claims data not available
