Leaf stripper, more particularly designed for selective vine leaf stripping
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 29, 2006
Grant Date -
Apr 21, 2005
app pub date -
Jul 10, 2003
filing date -
Jul 12, 2002
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

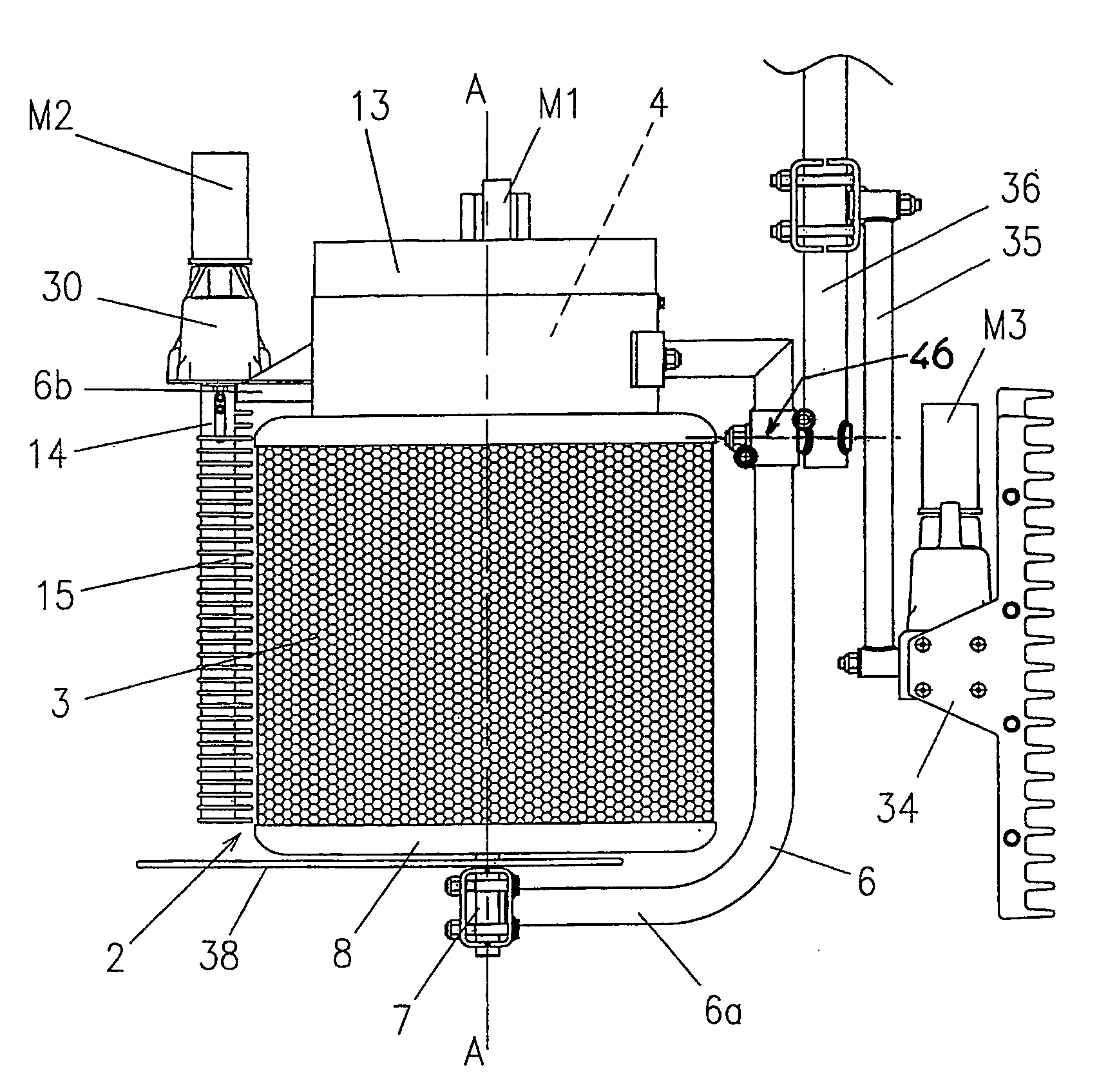

A leaf stripper which is intended more specifically for stripping vine leaves includes a stripping head which is equipped with a rotary drum with an open-work cylindrical side wall, rotator device for the drum, suction device which can be used to generate a suction air stream that passes through the aforementioned open-work cylindrical side wall of the drum, and a mechanism of channeling the air stream through a portion modifying the side wall. There is a cutting device which is installed close to the side wall portion of the rotating suction drum and which is positioned parallel or essentially parallel to the axis of rotation of the drum. The open-work cylindrical wall of the drum is made from a flexible, deformable material which is permeable to the air stream.
First Claim
Other Claims data not available
