Radiofrequency signal receiver with means for correcting the effects of multipath signals, and method for activating the receiver
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 1, 2006
Grant Date -
Dec 12, 2002
app pub date -
Jun 4, 2002
filing date -
Jun 8, 2001
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

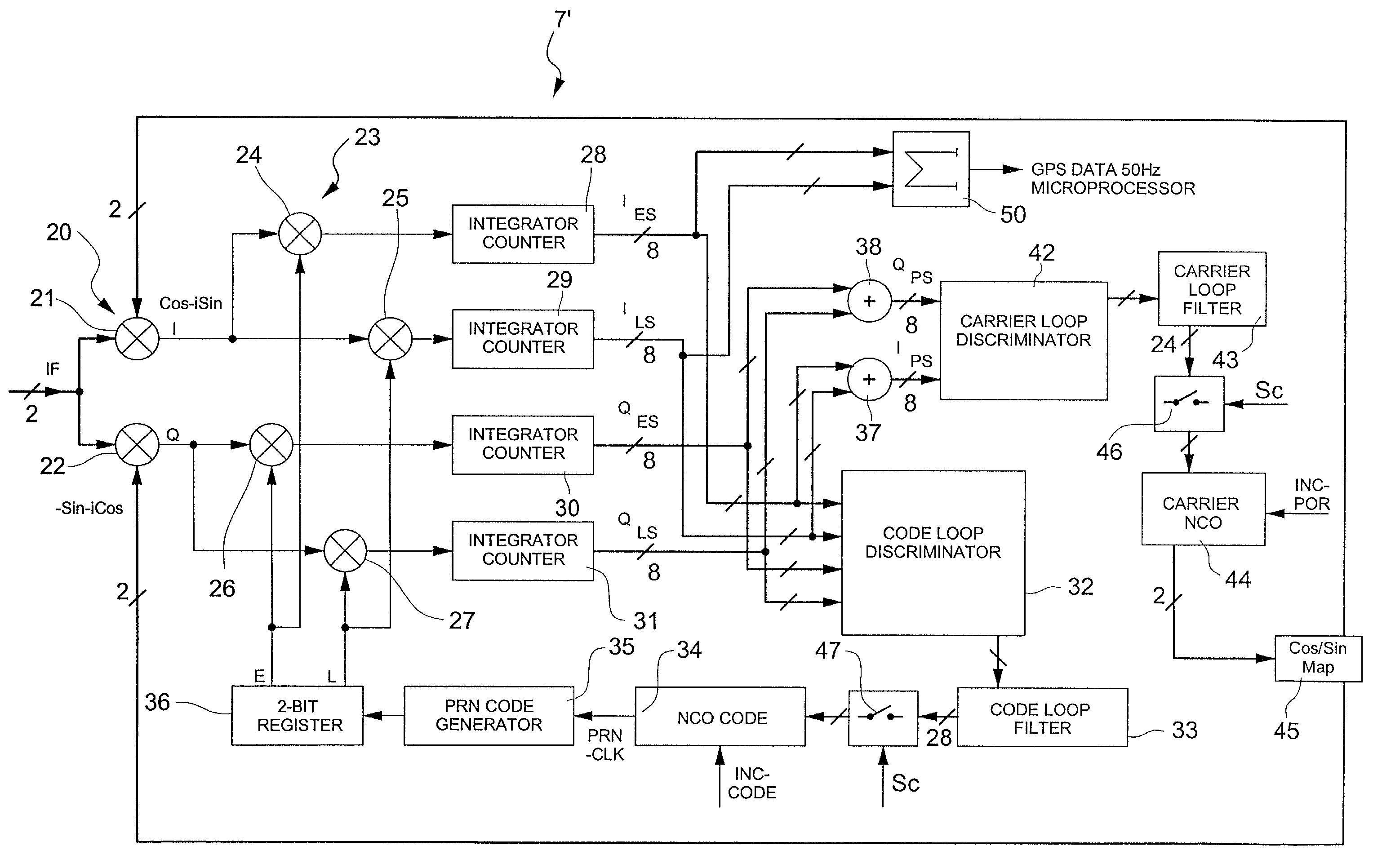

The receiver (1) for radio-frequency signals (SV1, SV2, SV3, SV4), modulated by specific codes of transmitting sources, such as satellites (S1, S2, S3, 54), includes receiving and shaping means with frequency conversion for the radio-frequency signals for generating intermediate signals, a correlation stage formed of several correlation channels for receiving the intermediate signals and microprocessor means connected to the correlation stage in order to process the extracted data after correlation. Each channel includes a correlator in which the intermediate signals are correlated with at least two early and late replicas of the specific code of a visible transmitting source to be searched and tracked. The correlator further includes integrator counters for the correlated signals to provide a first amplitude value of the auto-correlation function of the early signals and a second amplitude value for the late signals. When multipath signals (SV1', SV3') are detected in the first operating channel, at least a second unused channel is configured, via the microprocessor means, and connected in parallel to the first channel. The second channel has the task of searching the maximum amplitude value between the two amplitude values of the first operating channel. The receiver, in particular of the GPS type, can be mounted in the case of a watch and powered by the energy accumulator or battery of the watch.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 5 Citation Count
- H04B Class
- 1.15 % this patent is cited more than
- 19 Age
