Fenestration unit with screen coil apparatus
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 25, 2006
Grant Date -
Aug 11, 2005
app pub date -
Aug 7, 2001
filing date -
Aug 7, 2001
priority date (Note) -
Expired
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

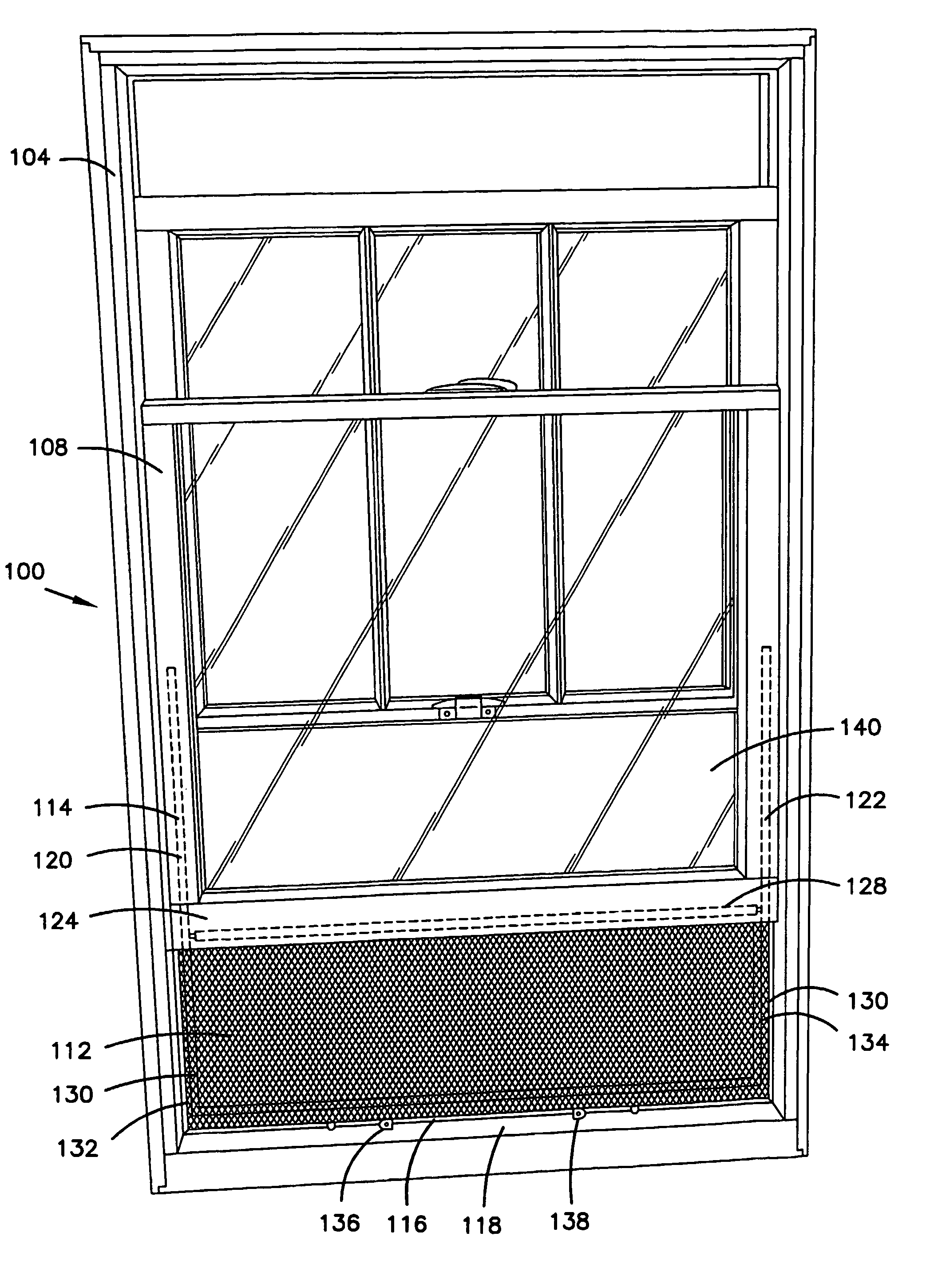

A fenestration unit including screen coil apparatus is provided by the invention. The fenestration unit includes a frame defining an opening. A sash- is slideably received by the opening of the frame. The fenestration unit includes a screen coil assembly attached to the sash. The screen coil assembly includes a screen having first and second edges, and a roll core, wherein the screen is capable of being coiled and uncoiled on the roll core. The fenestration unit further includes an edge support having first and second support members having at least a portion located between the frame and the sash, the first and second support members for fastening to the screen first and second edges.
First Claim
all claims..Other Claims data not available
Family

- 15 United States
- 10 France
- 8 Japan
- 7 China
- 5 Korea
- 2 Other
Patent Owner(s)
Patent Owner | Address | |
---|---|---|
ANDERSEN CORPORATION | 100 FOURTH AVENUE NORTH BAYPORT MN 55003 |
International Classification(s)

- 2001 Application Filing Year
- A47G Class
- 507 Applications Filed
- 84 Patents Issued To-Date
- 16.57 % Issued To-Date
Inventor(s)
Inventor Name | Address | # of filed Patents | Total Citations |
---|---|---|---|
Abelson, Matthew D | Somerville, MA | 11 | 1217 |
# of filed Patents : 11 Total Citations : 1217 | |||
Bates, Peter K | Framingham, MA | 14 | 286 |
# of filed Patents : 14 Total Citations : 286 | |||
Brezovar, Wayne T | St. Louis Park, MN | 15 | 155 |
# of filed Patents : 15 Total Citations : 155 | |||
Chastain, David P | Acton, MA | 22 | 1658 |
# of filed Patents : 22 Total Citations : 1658 | |||
Dubrovsky, Zivthan A | Waltham, MA | 42 | 3297 |
# of filed Patents : 42 Total Citations : 3297 | |||
Kelley, Timothy J | Stillwater, MN | 31 | 439 |
# of filed Patents : 31 Total Citations : 439 | |||
Macrae, Bruce P | Danvers, MA | 1 | 9 |
# of filed Patents : 1 Total Citations : 9 | |||
Plummer, David D | Hudson, WI | 24 | 395 |
# of filed Patents : 24 Total Citations : 395 |
Cited Art Landscape
- No Cited Art to Display

Patent Citation Ranking
- 6 Citation Count
- A47G Class
- 2.29 % this patent is cited more than
- 19 Age
Forward Cite Landscape
- No Forward Cites to Display

Maintenance Fees
Fee | Large entity fee | small entity fee | micro entity fee | due date |
---|
Fee | Large entity fee | small entity fee | micro entity fee |
---|---|---|---|
Surcharge after expiration - Late payment is unavoidable | $700.00 | $350.00 | $175.00 |
Surcharge after expiration - Late payment is unintentional | $1,640.00 | $820.00 | $410.00 |
Full Text

Legal Events
Date | Code | Event | Description |
---|---|---|---|
Mar 19, 2025 | MAFP | MAINTENANCE FEE PAYMENT | free format text: PAYMENT OF MAINTENANCE FEE, 8TH YEAR, LARGE ENTITY (ORIGINAL EVENT CODE: M1552); ENTITY STATUS OF PATENT OWNER: LARGE ENTITY year of fee payment: 8 |
Mar 23, 2021 | MAFP | MAINTENANCE FEE PAYMENT | free format text: PAYMENT OF MAINTENANCE FEE, 4TH YEAR, LARGE ENTITY (ORIGINAL EVENT CODE: M1551); ENTITY STATUS OF PATENT OWNER: LARGE ENTITY year of fee payment: 4 |
Oct 10, 2017 | I | Issuance | |
Sep 20, 2017 | STCF | INFORMATION ON STATUS: PATENT GRANT | free format text: PATENTED CASE |
Feb 09, 2017 | P | Published | |
Jul 26, 2016 | F | Filing | |
Jun 28, 2016 | AS | ASSIGNMENT | free format text: ASSIGNMENT OF ASSIGNORS INTEREST;ASSIGNORS:WINKLER, PASCAL;BORN, JEAN-JACQUES;REEL/FRAME:039262/0038 Owner name: ETA SA MANUFACTURE HORLOGERE SUISSE, SWITZERLAND Effective Date: Jun 28, 2016 |
Aug 04, 2015 | PD | Priority Date |

Matter Detail

Renewals Detail
