Apparatus and method for a high-efficiency self-cleaning centrifuge having concentrate cylinders
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 18, 2006
Issued Date -
N/A
app pub date -
Nov 28, 2003
filing date -
Dec 16, 2002
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

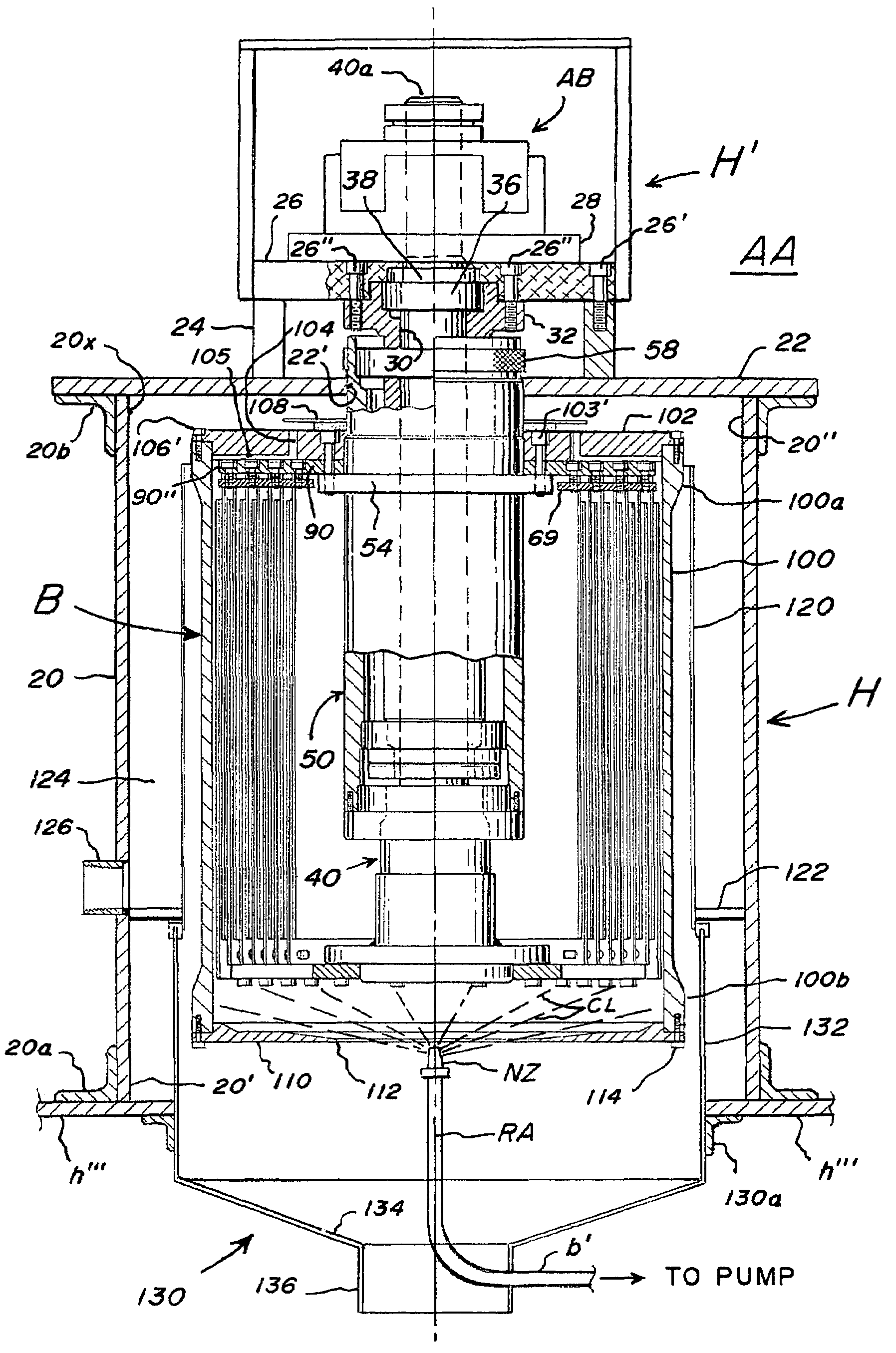

A self-cleaning centrifuge for clarifying contaminated liquids has a rotor assembly comprising nested first and second sets of concentric cylinders supported for rotation about an axis. The sets of concentric cylinders are rotatably connected. A motor is connected to rotate one of the sets. Contaminated liquid is supplied to the nested cylinders, and the liquid provides coupling between both of the sets so that both sets rotate about the axis. Centrifugal force causes foreign matter to collect on the circumferential surfaces of the cylinders. The resultant clarified liquid is collected for reuse. A selectively utilized brake provides sudden braking of one of the rotating sets to purge collected foreign matter from the cylinders. The purged foreign matter is collected for disposal.
First Claim
Other Claims data not available
