Cushioning material for packaging and method and device for manufacturing the cushioning material
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 11, 2006
Grant Date -
Oct 30, 2003
app pub date -
May 21, 2003
filing date -
Apr 26, 2000
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

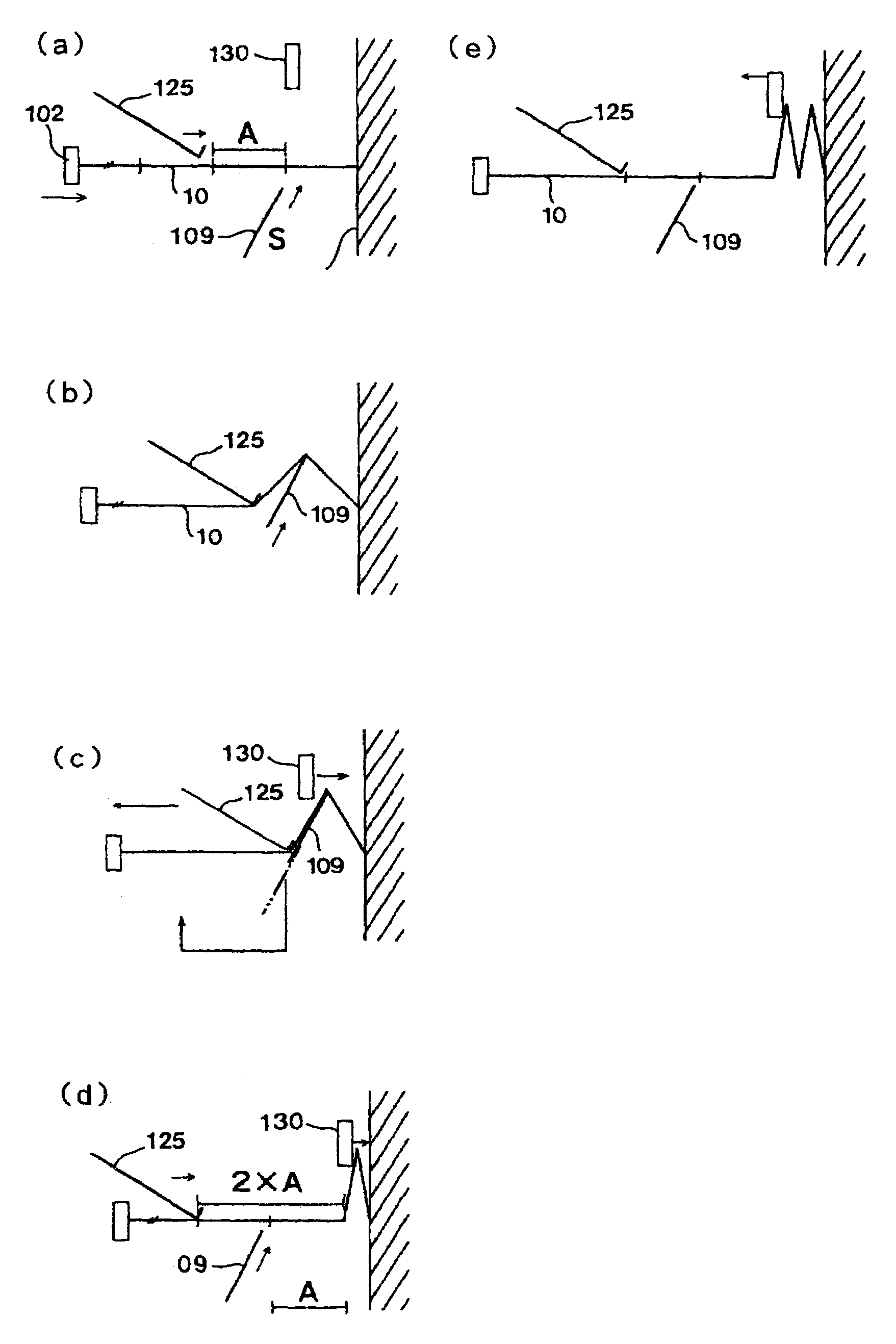

A recyclable cushioning material for packaging obtained by forming a cushioning material for packaging used to protect articles supplied for physical distribution from being impacted with one sheet of corrugated fiberboard and a method and device for manufacturing the cushioning material, wherein a plurality of cutting lines (11 to 21) are formed in one sheet of corrugated fiberboard (10) in parallel with each other in the direction perpendicular to a direction in which the pleats of the corrugated fiberboard extend and a plurality of connection parts (25) are formed intermittently on each of these cutting lines so that a plurality of unit corrugated fiberboard (41 to 52) can be folded up alternately each other, openings (30 to 33) including the cutting lines are formed in the plurality of unit fiberboard (46 to 52) located on the inner side, and zig-zag foldings at the cutting lines (11 to 21) in which hump-folds and trough-folds are formed alternately each other are performed simultaneously by a zig-zag folding device (70), and the pleats are glued with gluing nozzles (82, 83) and pressed by a cylinder (87) so as to connect and stack the unit corrugated fiberboard (41 to 52) to each other, whereby the cushioning bodies for packaging (57 to 60) formed of a corrugated fiberboard stacked body having an article supporting part (55) can be assembled automatically.
First Claim
Other Claims data not available
