Tool holder for annular core bit
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 11, 2006
Grant Date -
Aug 12, 2004
app pub date -
Nov 26, 2003
filing date -
Nov 30, 2002
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

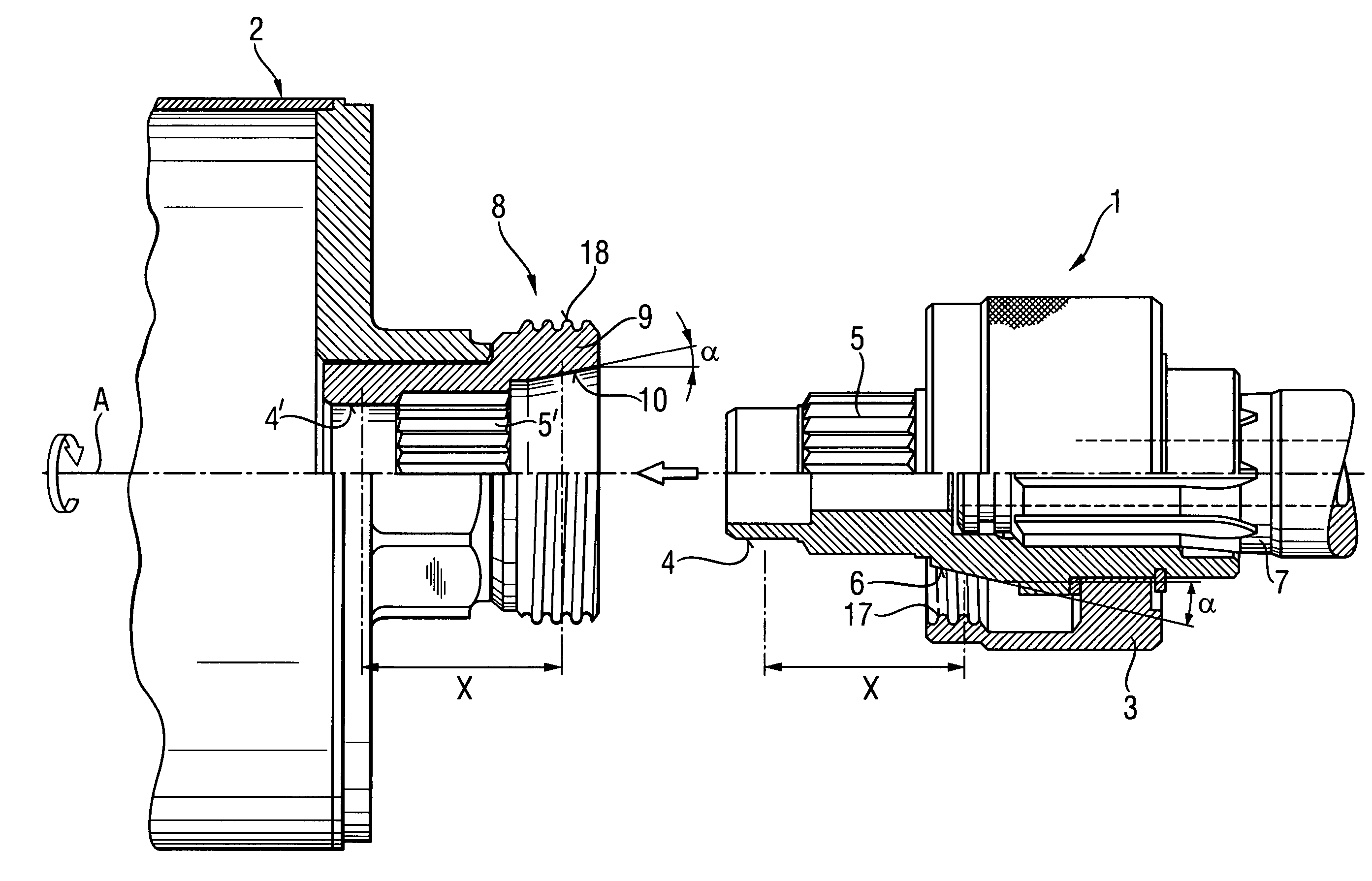

A tool holder (1) and a shank (8) for quick mounting and dismounting an annular core bit (2) both include cooperating respective guide members (4, 4') provided at their bit-side ends, flanges (3, 9) arranged coaxially with the guide members (4, 4') for axially locking same and having, respectively, outer and inner threads, and outer and inner cone surfaces (6, 10) located inwardly of the respective guide members (4, 4') and axially spaced therefrom. The outer and inner cone surfaces (6, 10) taper toward their respective bit-side ends. The tool holder and the shank have cooperating torque transmitting elements (5, 5') arranged between the respective inner guide members (4, 4') and the respective outer cone surfaces (6, 10).
First Claim
Other Claims data not available
