Process for interpreting faults from a fault-enhanced 3-dimensional seismic attribute volume
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 27, 2006
Grant Date -
Jun 19, 2003
app pub date -
Dec 14, 2001
filing date -
Dec 14, 2001
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

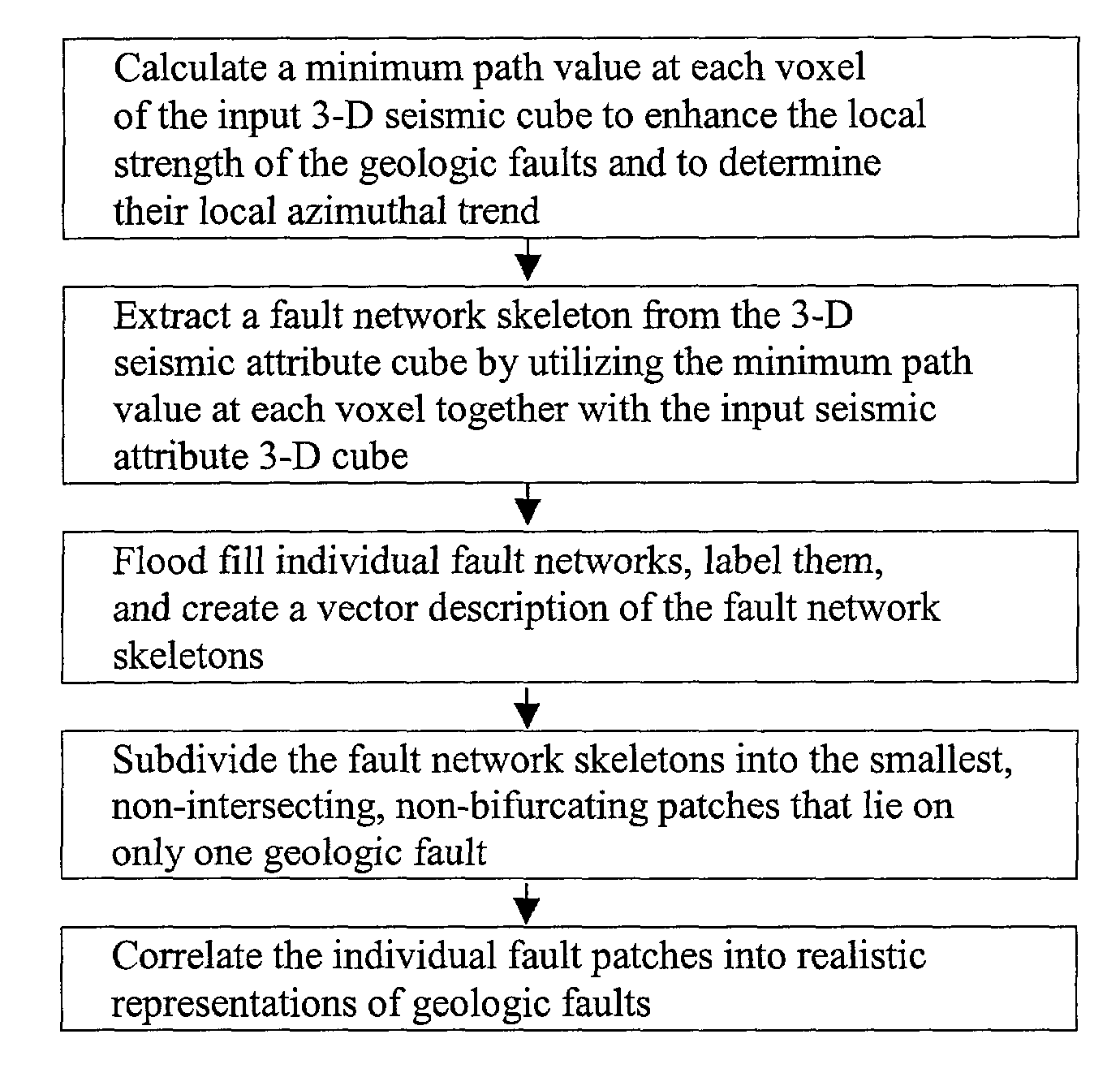

A computer implemented method for interpreting faults from a fault-enhanced 3-D seismic attribute cube. The method includes the steps of extracting faults from a 3-D seismic attribute cube, and of calculating a minimum path value for each voxel of the 3-D seismic attribute cube. A fault network skeleton is extracted from the 3-D seismic attribute cube by utilizing the minimum path values which correspond to voxels within the 3-D seismic attribute cube. The individual fault networks are then labeled, and a vector description of the fault network skeleton is created. The fault network skeleton is subdivided into individual fault patches wherein the individual fault patches are the smallest, non-intersecting, non-bifurcating patches that lie on only one geologic fault. The individual fault patches are then correlated into a representation of geologic faults.
First Claim
Other Claims data not available
