Cabriolet vehicle with a check device for checking a given convertible top stowage volume
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 27, 2006
Grant Date -
Nov 27, 2003
app pub date -
Mar 25, 2003
filing date -
Mar 26, 2002
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

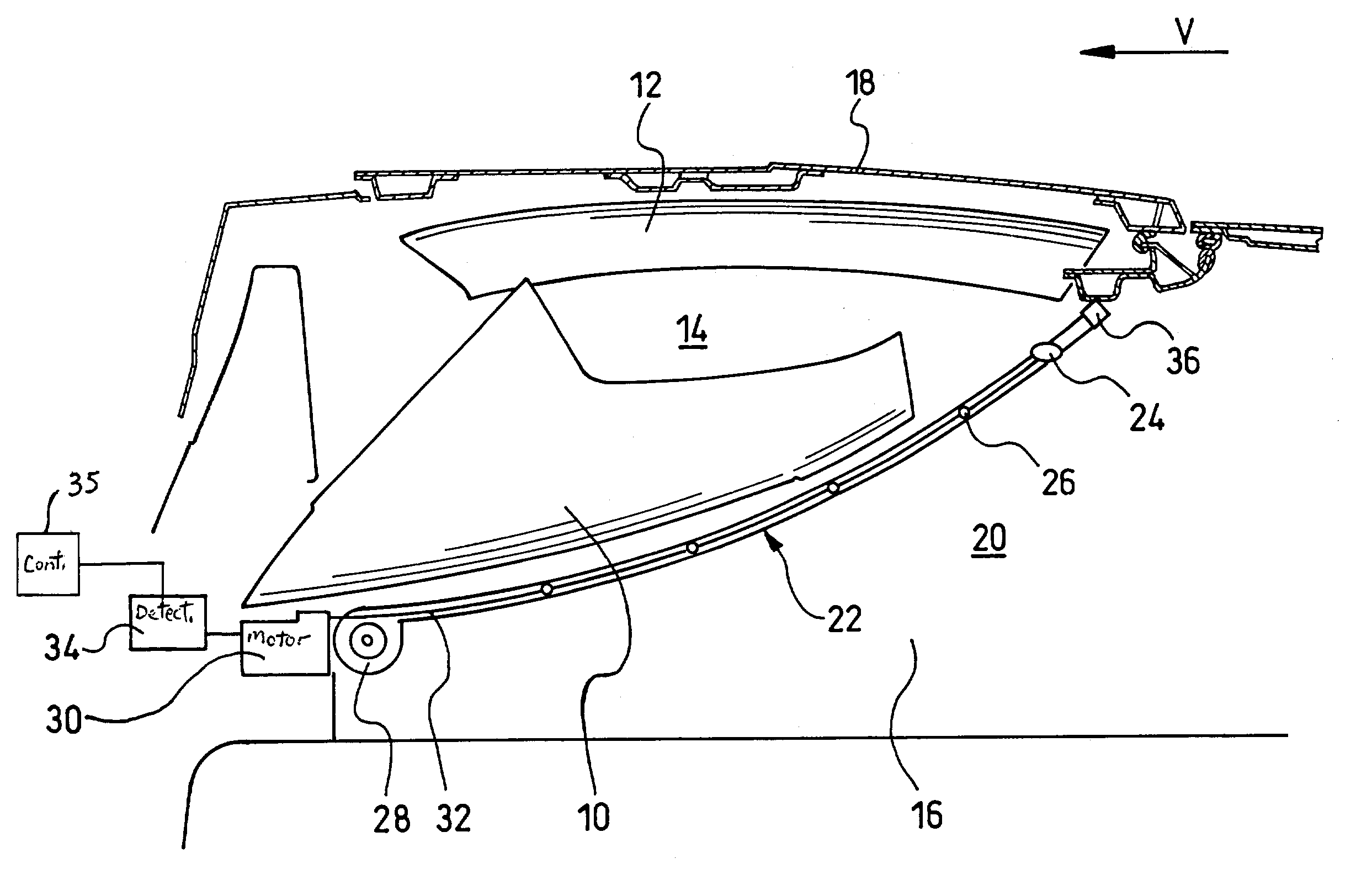

A cabriolet vehicle with a combined convertible top-luggage stowage space (16), of which one partial volume constitutes a the convertible top stowage volume (14) and another partial volume constitutes a luggage stowage volume which borders the convertible top stowage volume (14), has a checking device (24, 30, 34) for checking the convertible top stowage volume (14). The checking device has a movement element (24) that can be moved along a boundary (22) which separates the convertible top stowage volume (14) from the luggage stowage volume and which can be remotely controlled. The movement element is driven by a drive device (30) and is provided with sensors (34, 36) such that, during the motion of the movement element (24) preparatory to stowage of a hard top convertible roof, the presence of articles which project from the luggage stowage volume into the convertible top stowage volume (14) can be detected.
First Claim
Other Claims data not available
