Submergible tire structure
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 20, 2006
Grant Date -
N/A
app pub date -
Oct 17, 2005
filing date -
Oct 17, 2005
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

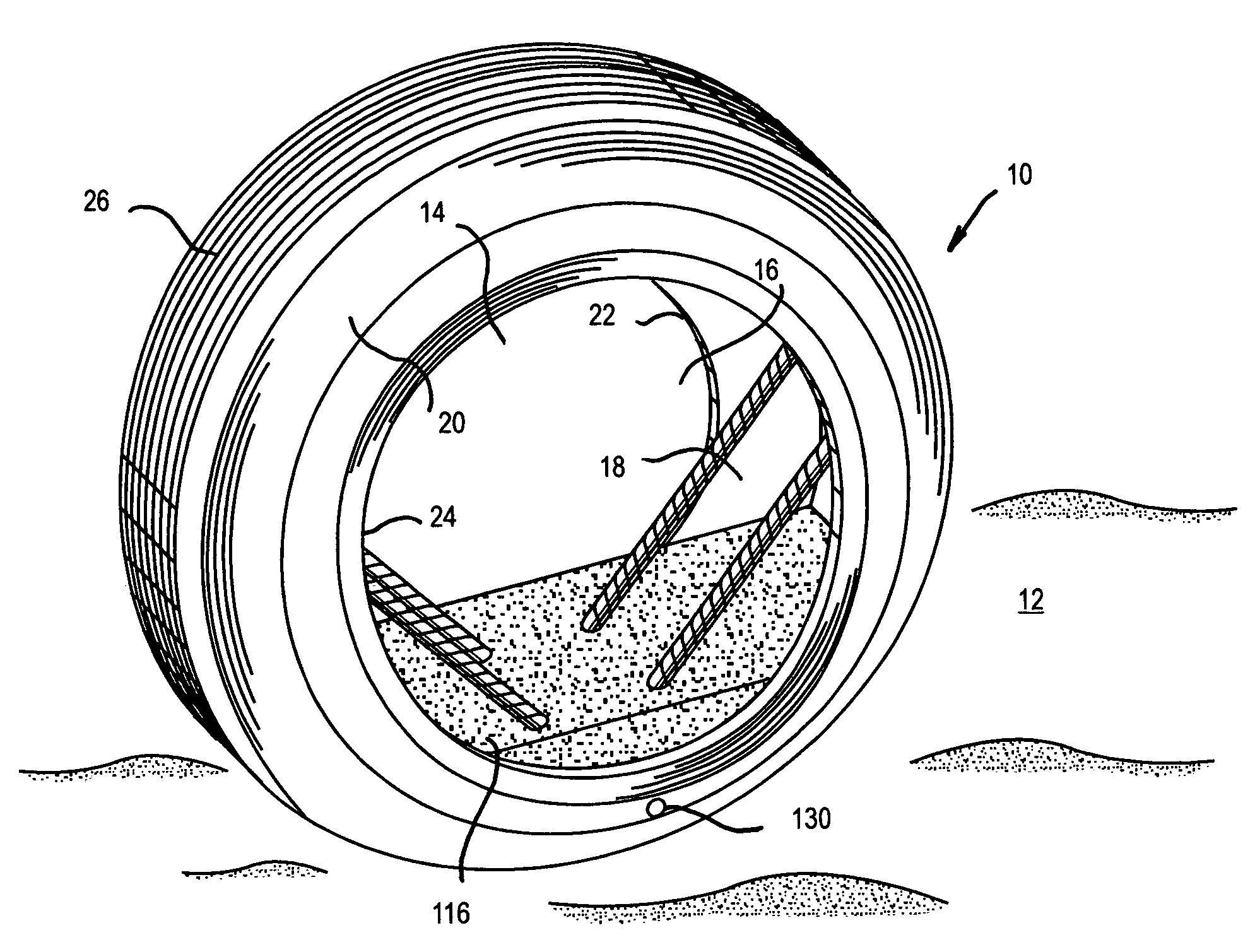

Lower sidewall portions (18, 20) of a vehicle tire (10) are spread apart by a spreader tool (28). Spreader bars (32, 34) are placed between the spread apart lower sidewall portions (18, 20) of the tire (10). Concrete (116) is poured in place in the tire. One or more iron members (120, 122, 124, 126) are placed in the tire (10) with lower portions in the concrete (116) and upper portions extending towards the inner side of the tread wall (26). At least one other iron member (120, 122, 124, 126) is positioned in the tire (10) with a lower end portion in the concrete (126) and an upper portion sloping upwardly and outwardly towards the inner side of the tread wall (26) on a diametrically opposite portion of the tire (10).
First Claim
Other Claims data not available
