Apparatus for modifying traveling position of paper web in paper web processing machine
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 6, 2006
Grant Date -
Oct 2, 2003
app pub date -
Dec 23, 2002
filing date -
Mar 29, 2002
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

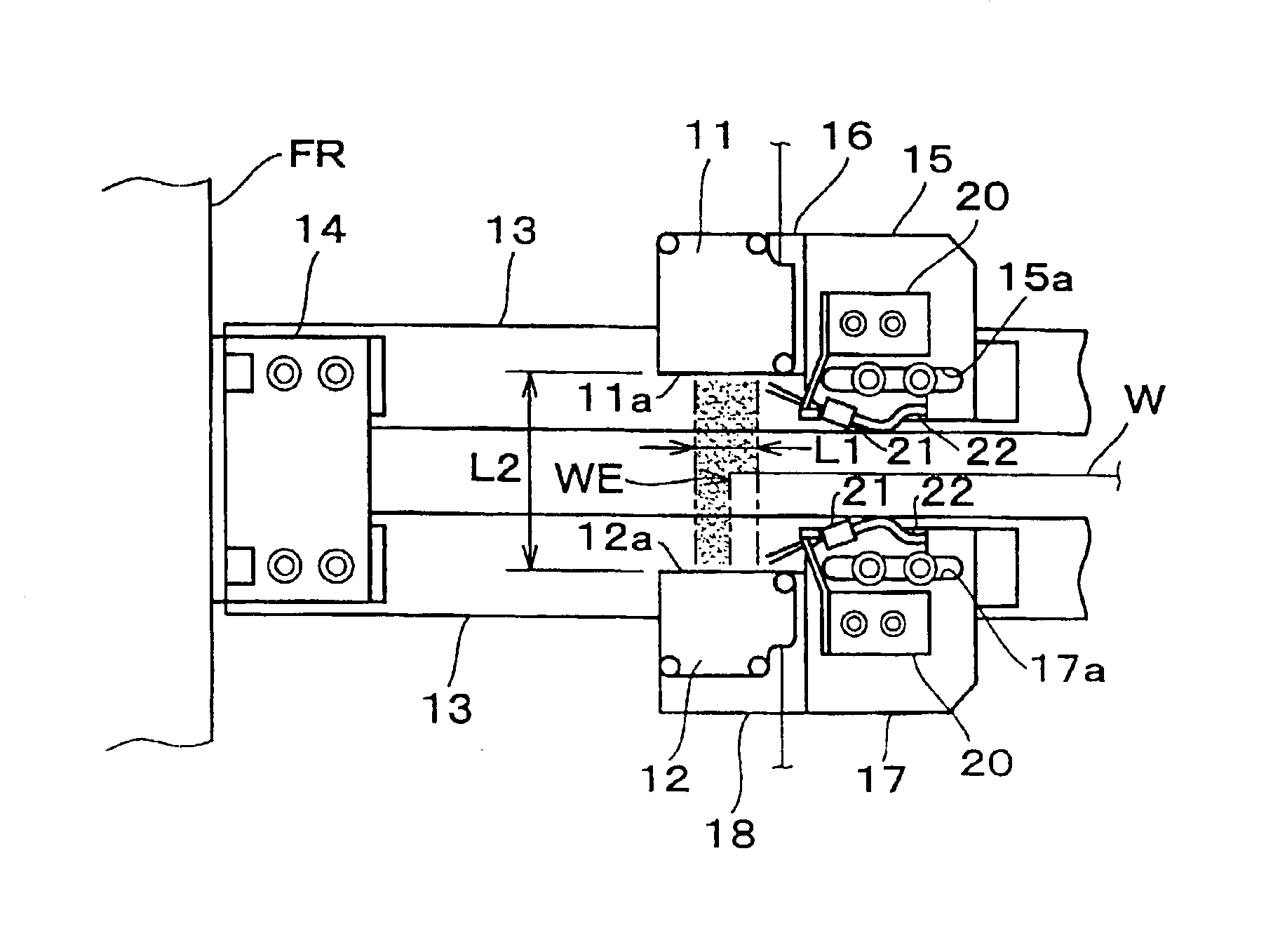

An apparatus for modifying a traveling position of a paper web in a paper web processing machine is provided. The apparatus is capable of easily attaching a detection means; requiring no operation of the paper web processing machine to determine an accurately adjusted position for attachment; and extremely easily setting a desired size of a tolerable deviation range of a practical position of a side edge to an originally expected position of the side edge when the sheet travels. The apparatus includes a traveling position modification means for modifying a position of a side edge of a paper web traveling toward a processing section in a paper web processing machine; a detection means for detecting the position of the side edge of the paper web; and a control means connected to the modification means and the detection means for controlling the modification means based on a value detected at the detection means.
First Claim
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- B65H Class
- 4.74 % this patent is cited more than
- 19 Age
