Wire rod cutting apparatus of spring manufacturing machine
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 6, 2006
Issued Date -
N/A
app pub date -
May 18, 2004
filing date -
Jul 22, 2003
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

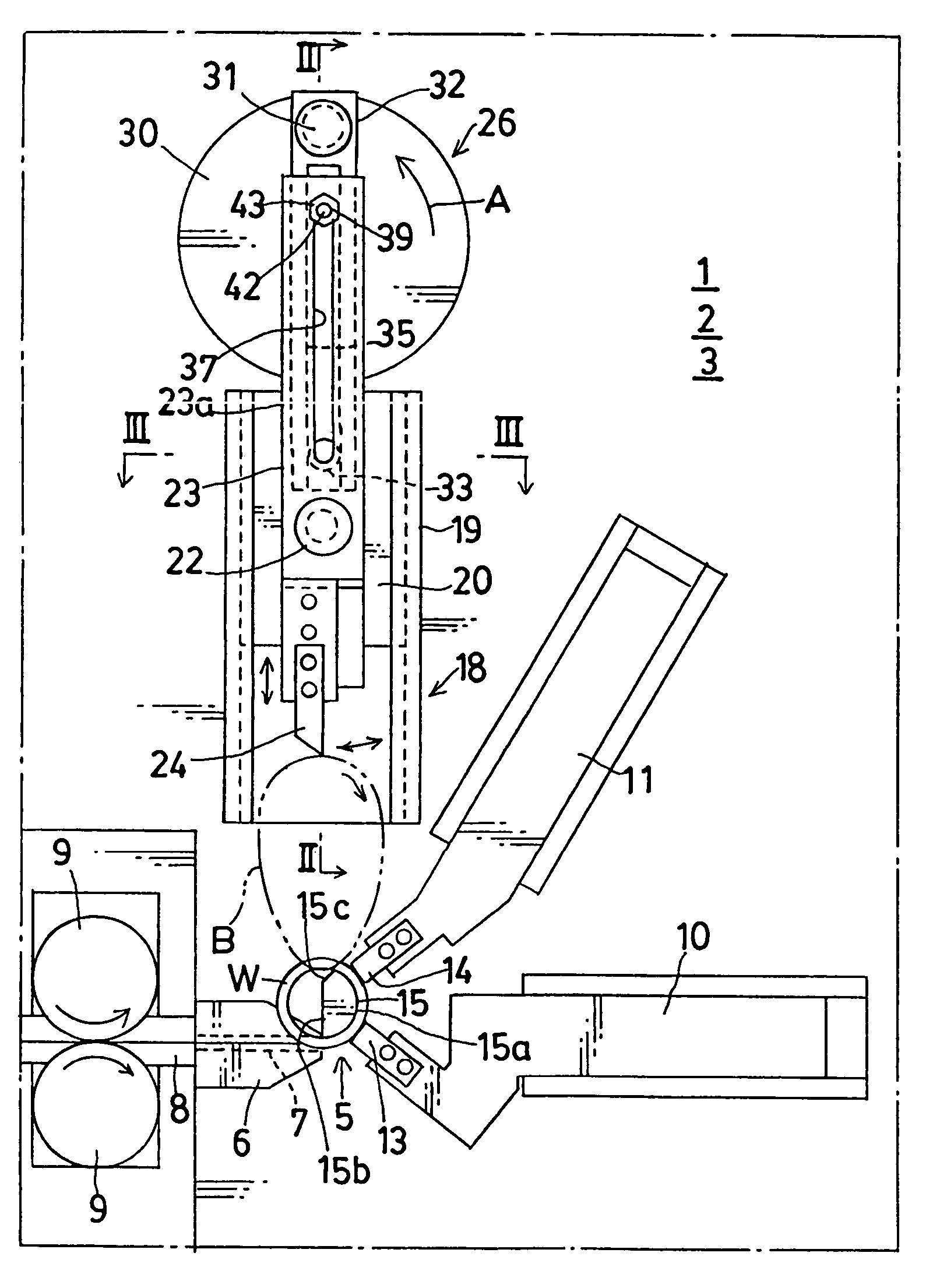

To easily adjust and change a locus of a leading end (an endless locus) of a cutter, a wire rod cutting apparatus of spring manufacturing machine has structure so that a slide may vertically slide via a connection rod by rotating a rotation shaft, and a cutter mounting oscillating arm can oscillate laterally via a sliding element by oscillating the connection rod, so that the locus thereof in the oscillating arm can be set to a predetermined shape (refer to a two-dot chain line in FIG. 1) which is endless in a front view and different between an outward and a homeward routes, by sliding the slide and oscillating the oscillating arm by actuation of the actuating apparatus and that a lateral oscillating amount of the oscillating arm can be changed by changing the position of the sliding element, to change the locus of the cutter leading end.
