Carriage assembly for positioning railroad cars
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 30, 2006
Grant Date -
Oct 7, 2004
app pub date -
Apr 5, 2004
filing date -
Apr 4, 2003
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

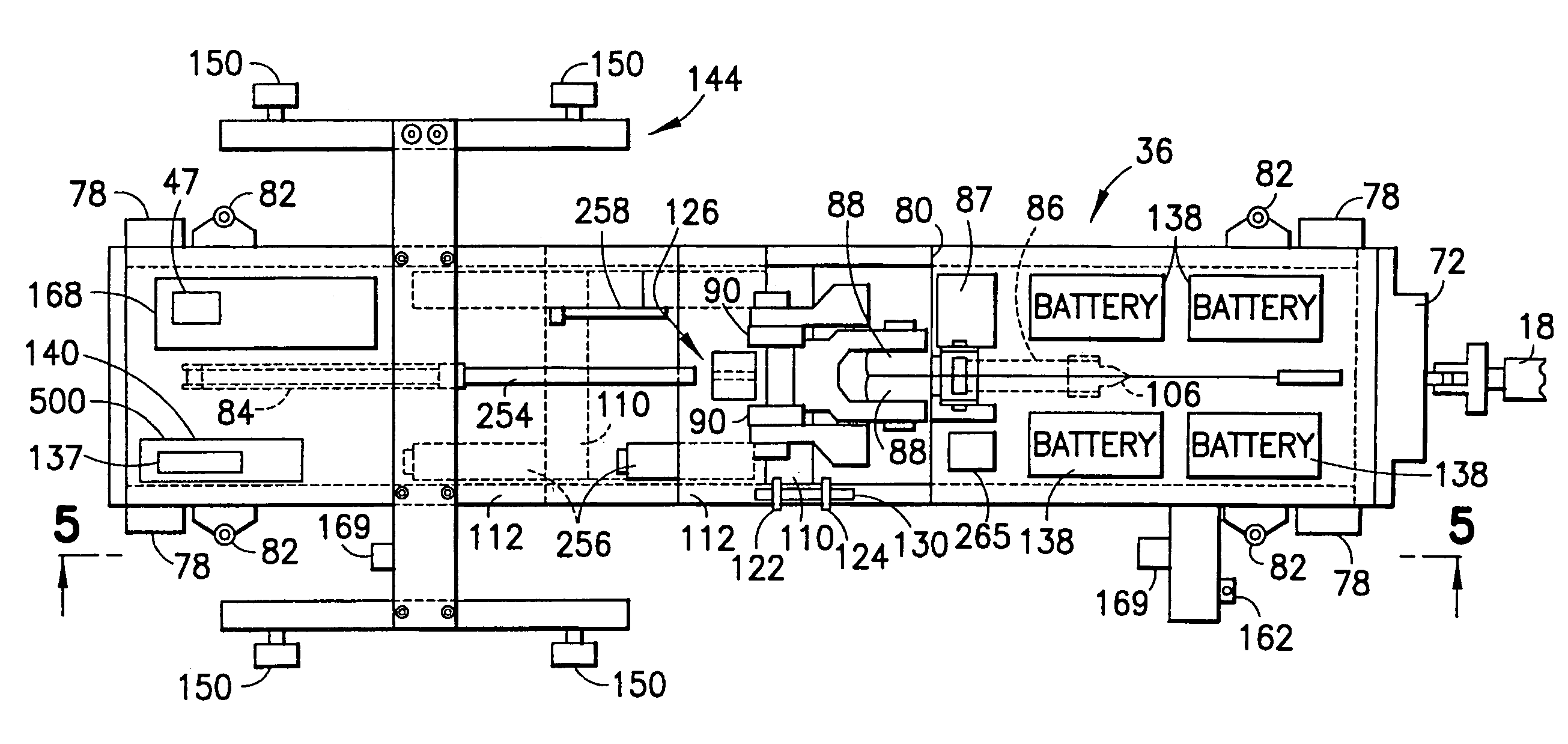

A railroad car positioning apparatus for positioning a railroad car along a railroad track includes a battery-powered and radio-controlled carriage assembly and first and second dog members mounted on the carriage assembly. The apparatus includes a main control unit for controlling the carriage assembly. The carriage assembly is controlled via radio communication between the carriage assembly and the main control unit. The dog members are generally extendable to an axle height of the railroad car to be acquired for contacting one of the axles of the railroad car. The apparatus further includes a plurality of hydraulic cylinders for moving the carriage assembly in a forward or reverse direction on a guide way disposed between the railroad tracks on which the railroad cars travel. The batteries on the carriage assembly may be remotely recharged using a contactless power transfer device, which includes a battery recharging device situated on the guide way.
First Claim
Other Claims data not available
