In-band on-channel digital broadcasting method and system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 16, 2006
Issued Date -
N/A
app pub date -
Jun 11, 2001
filing date -
Jun 19, 1996
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

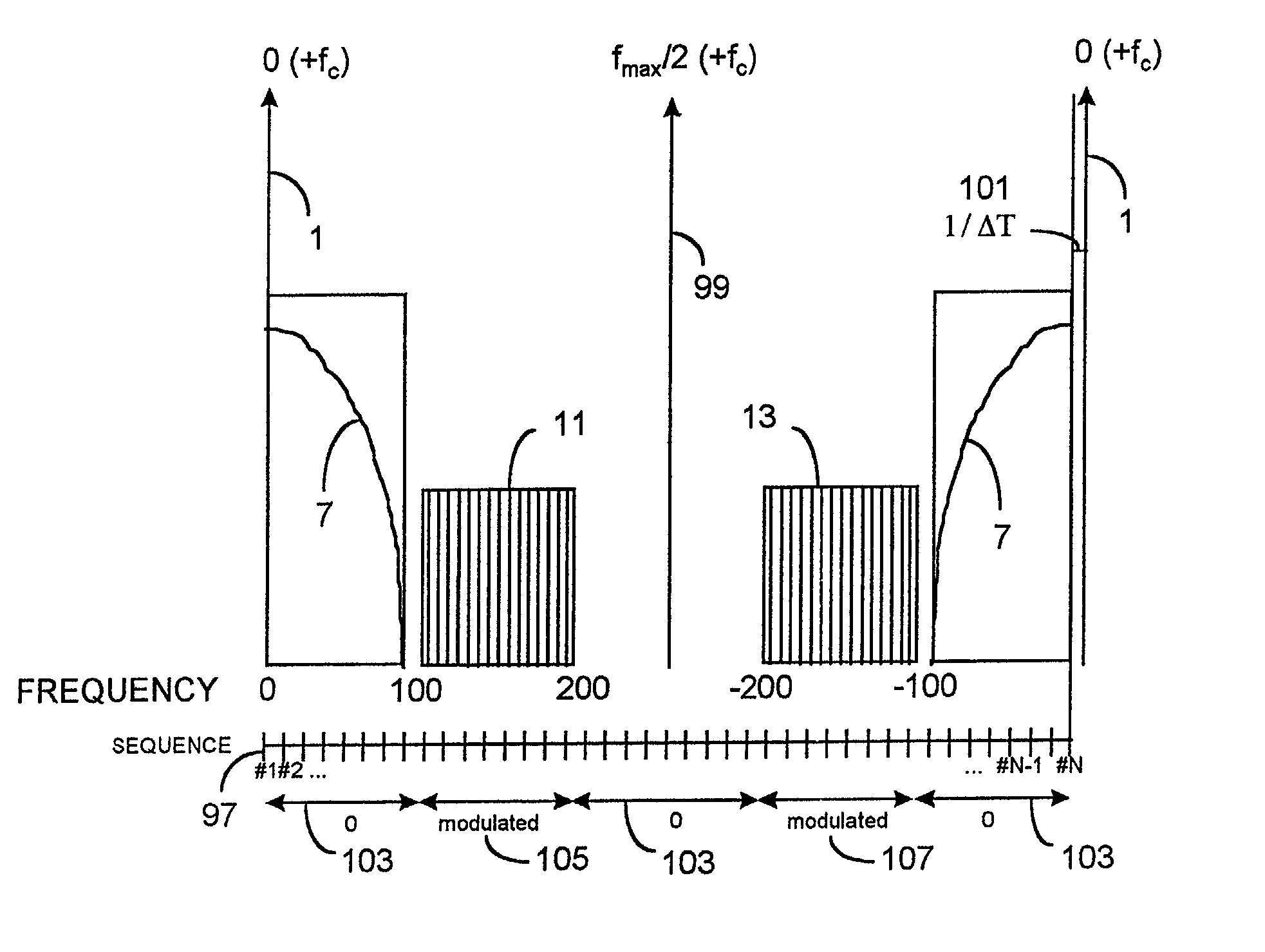

A method and system are provided for the transmission and reception of an In-band On-channel (IBOC) FM-band digital audio broadcast (DAB) signal. The IBOC DAB signal is generated in the transmitter to substantially occupy the upper and lower sideband frequency regions in the RF emission mask for the conventional broadcast analog FM-band. Redundant source bit information is transmitted in both the upper and lower sidebands so that the loss of information in either one but not both sidebands due to large amounts of interference or distortion, caused by, for example, first-adjacent interference, does not deleteriously affect the IBOC DAB receiver performance. The system exhibits both frequency-diversity and time-diversity. The receiver determines which codeword bit estimate, corresponding to either upper or lower sideband signals, is less likely to be erroneous. The receiver system selects between decoded estimates for each pair of demodulated ECC codewords or combines both ECC codeword estimates prior to decoding in certain embodiments.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 28 Citation Count
- H04J Class
- 47.93 % this patent is cited more than
- 19 Age
