Abstract

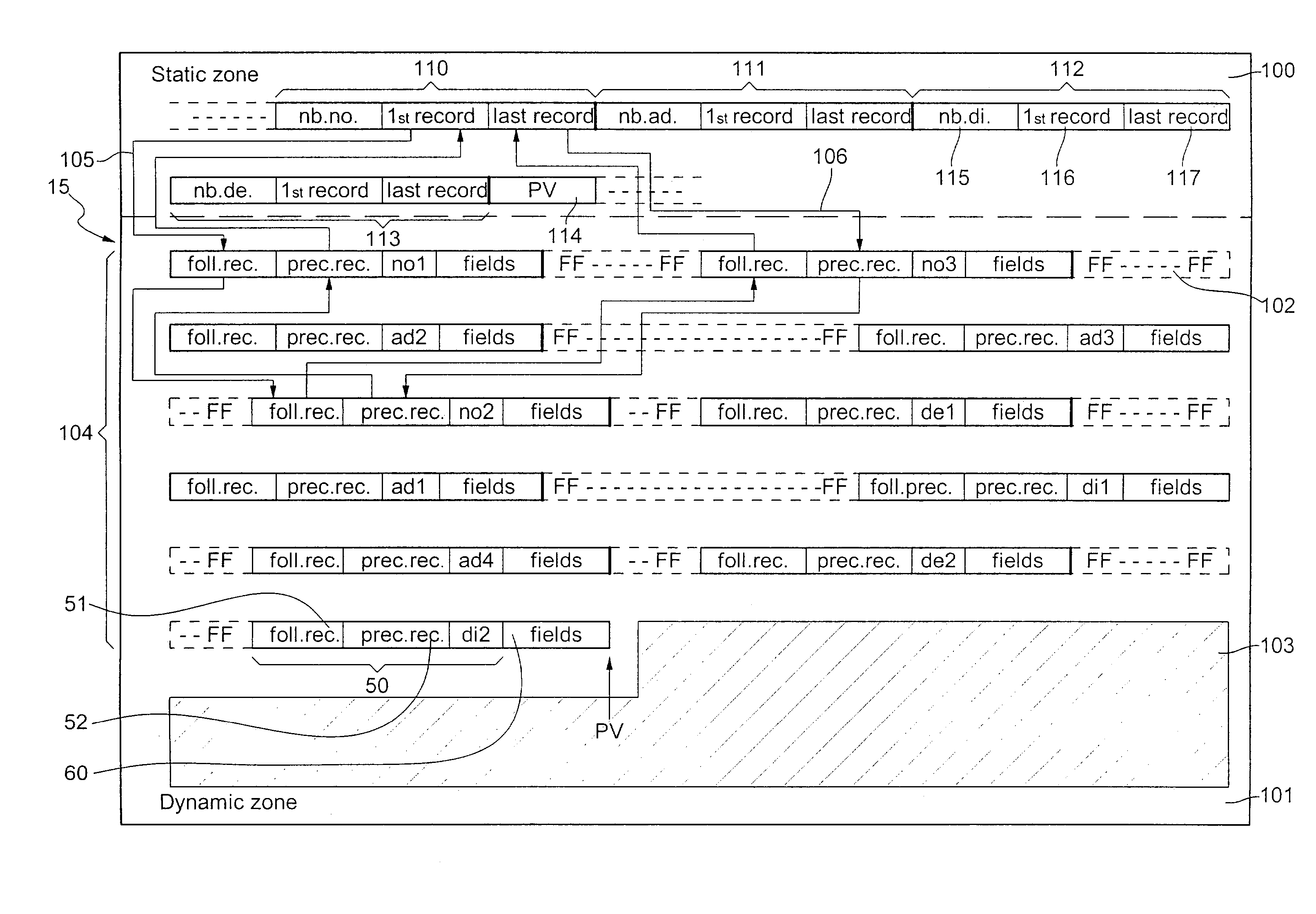

The device for managing memory in an electronic watch of the diary type includes a non-volatile memory (15) connected to a microprocessor unit (14). The unit is programmed to manage data and/or parameter storage and/or deletion operations in the memory. Activation of at least one key of the watch (C1) allows an instruction to be provided to the unit for managing data and/or parameter storage and/or deletion operations. The memory (15) includes a first static zone (100) for storing data and/or parameters in fixed memory locations and a second dynamic zone (101) for storing data records of different types. The memory location of each type of record is managed by the microprocessor unit (14) as a function of the modification or deletion of certain records and as a function of the storage of new records. Each record starts with a heading in which two pointers are placed to establish a link with a following record and a preceding record of the same type. The microprocessor unit (14) allows the data record memory case to be compacted or compressed in the dynamic zone (101) automatically or by activating at least one key of the watch (C1).

First Claim
